    3.0 Inch IPS 360x640 ST7701 Portrait TFT Display Panel SPI For Handheld Devices

    3.0 Inch IPS 360x640 ST7701 Portrait TFT Display Panel SPI For Handheld Devices

    TFT-H030A9NHIST4N40 | 3.0" IPS TFT LCD Display | TFT LCD Display Manufacturer | 360x640 HD resolution | -30℃~80℃ | For industrial computer | Interface SPI | Wide Temperature

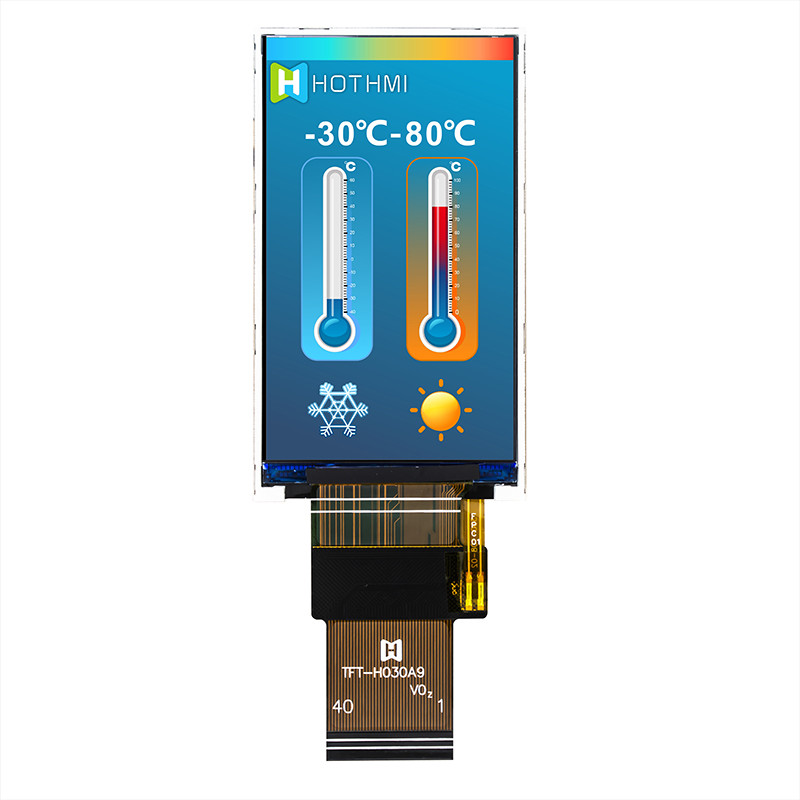

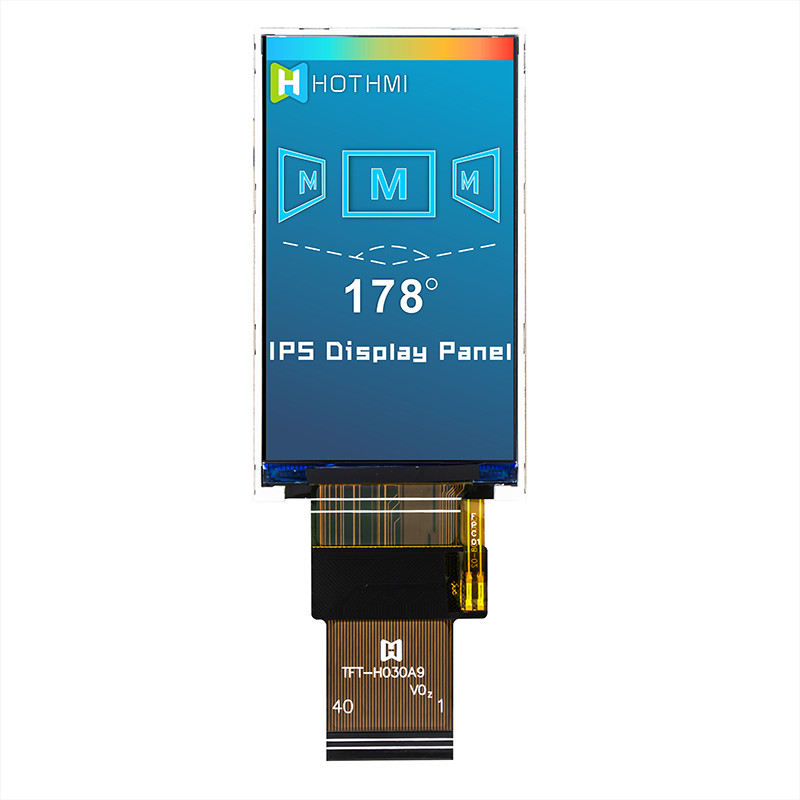

    TFT-H030A9NHIST4N40 is a high-quality 3.0-inch IPS TFT LCD display designed for handheld devices. It features a ST7701 Portrait TFT display panel with a 360x640 HD resolution, providing crisp images and vibrant colors. With a wide temperature range of -30°C to 80°C, this display is suitable for various industrial computers and devices.

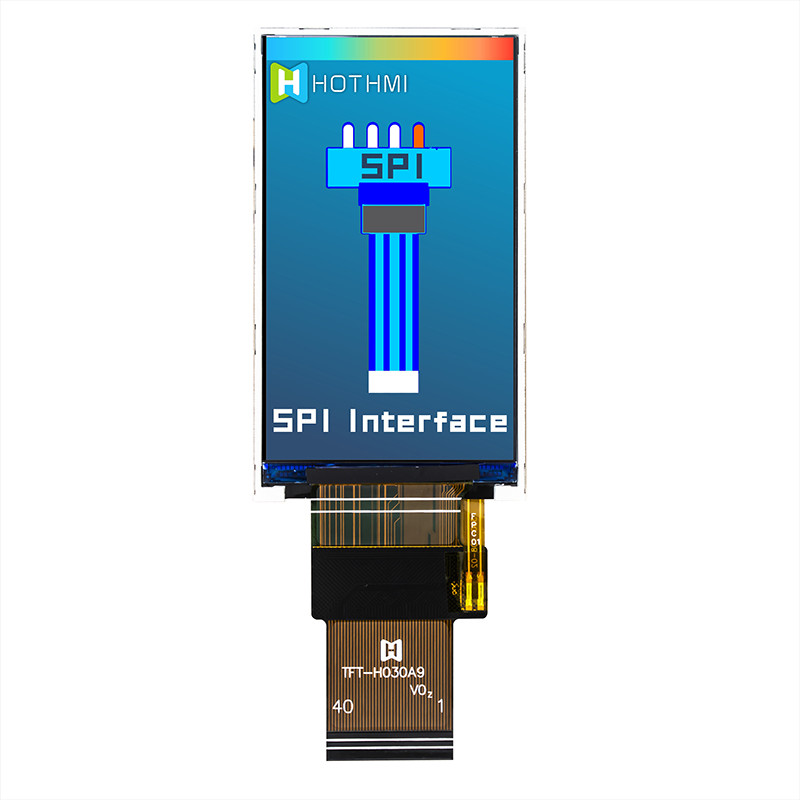

    The display uses an SPI interface, making it easy to integrate into different types of devices. The SPI interface offers high-speed data transfer and reliability, ensuring excellent performance for your device in various application scenarios.

    TFT-H030A9NHIST4N40 not only delivers outstanding visual performance but also undergoes rigorous quality control and testing to ensure its stability and reliability. It is an excellent LCD display suitable for a wide range of industrial and commercial applications, meeting the high-quality requirements of your device.




    General Feature


    ItemStandard ValueUnit
    Display Size3.0Inch
    Number of Pixels360(H)* 3(RGB)*640 (V)dots
    Active Area36.72x65.28mm
    Outline Dimension43.68x77.02mm
    Viewing DirectionFull View-
    TFT InterfaceSPI-
    TFT Driver ICST7701-
    TFT Driver ConditionVCI=3.3V(Typ)V
    Backlight-1White LED/8 PCS/4 LEDs serial 2 ways parallel-
    Touch Panel--
    CTP Driver IC--
    CTP Driver ConditionVDD=3.3~12V(Typ)V
    Operation Temperature-30 ~ 80
    Storage Temperature-30 ~ 80


    All Products

    Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
    Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
    ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
