    128X64 Dots Graphic FSTN COB LCD Module With White Side Backlight

    128X64 Dots Graphic FSTN COB LCD Module With White Side Backlight


    128X64 Graphic COG LCD | FSTN + GRAY Display With White Side Backlight/HTM-COG12864C01A-MCU8080


    HTM-COG12864C01A-MCU8080 | Monochrome Graphic COG | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) GRAY Display | Non-Stocked


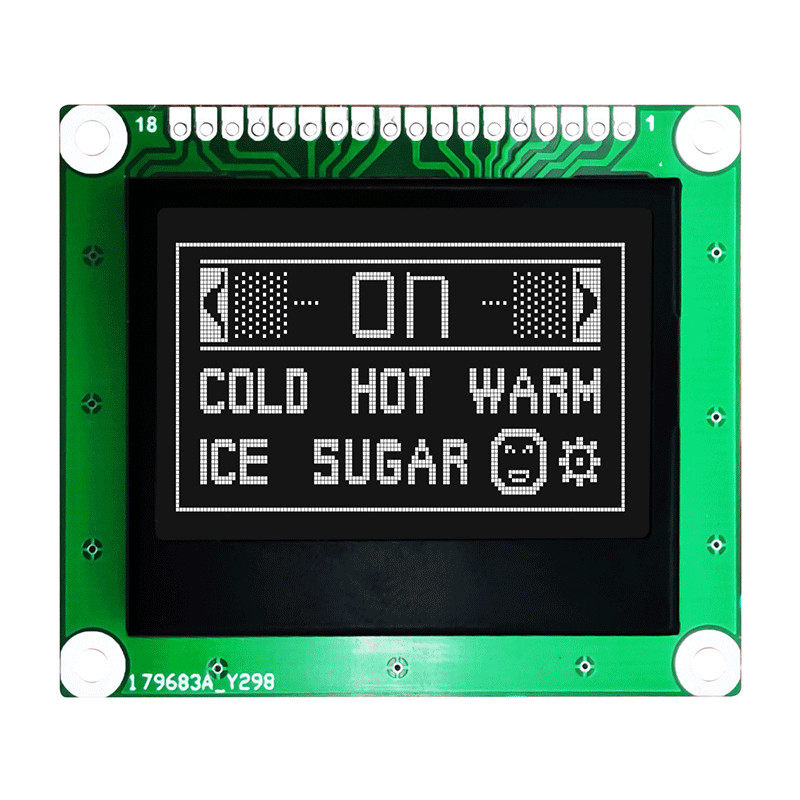

    HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows blue pixels on a gray background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTM-COG12864C01A-MCU8080 display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.

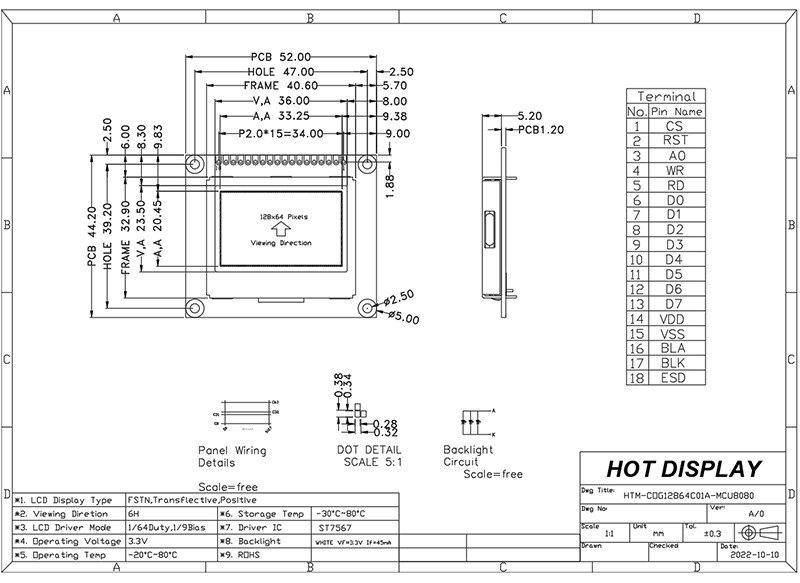

    Mechanical Data


    Item

    Standard Value

    Unit

    Module Dimension

    52.0x44.2x6.4

    mm

    Viewing Area

    36.0x23.5

    mm

    Mounting Hole

    33.25x20.45

    mm

    Dot Pitch

    0.32x0.38

    mm

    Dot Size

    0.28x0.34

    mm


    Electrical Characteristics

    Item

    Symbol

    Standard Value
    typ.

    Unit

    Input Voltage

    VDD

    3.3

    V


    Absolute Maximum Ratings


    Items

    Symbol

    MIN.

    MAX.

    Unit

    Condition

    Supply Voltage

    VDD

    -

    +5.5

    V

    VSS = 0V

    Supply Voltage

    VEE

    VDD- 16.0

    VDD+0.3

    V

    VSS = 0V

    Driver Supply Voltage

    VLCD

    VEE-0.3

    VDD+0.3

    V

    -

    Operating Temperature

    TOP

    -20

    +70

    No Condensation

    Storage Temperature

    Tst

    -30

    +80

    No Condensation


    Electrical Characteristics


    Items

    Symbol

    MIN.

    TYP.

    MAX.

    Unit

    Condition

    Operating Voltage

    VDD

    4.5

    5.0

    5.5

    V

    VDD

    Input High Voltage

    VIH

    2.0

    -

    VDD

    V

    *1

    Input Low Voltage

    VIL

    0

    -

    0.8

    V

    Output High Voltage

    VOH

    2.4

    -

    -

    V

    *2

    Output Low Voltage

    VOL

    -

    -

    0.4

    V

    Operating Current

    IDD1

    -

    2.0

    3.0

    A

    *3

    OSC Frequency

    FOSC

    315

    450

    585

    KHz

    Rf=47K±2%


    LED Backlight Circuit


    Items

    Symbol

    MIN.

    TYP.

    MAX.

    Unit

    Condition

    Forword Voltage

    Vf BLA

    -

    5.0

    -

    V

    Without Resister

    Forword Current

    If BLA

    -

    60

    65

    mA

    -


    All Products

    Reliability Testing

    Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.

    Glass Cleanliness

    Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.

    Bezel Appearance

    Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.

    PCB Appearance

    PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.

    Soldering

    Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.

    Glass Color

    While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.

    ESD Protection & Safety

    All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
