132X64 COG Graphic LCD Module With 6H Oclock Wide Viewing Angle

132X64 Graphic COG LCD Module | FSTN + Display /HTM-COG13264C01A-SPI

HTM-COG13264C01A-SPI | Monochrome Graphic Module | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display

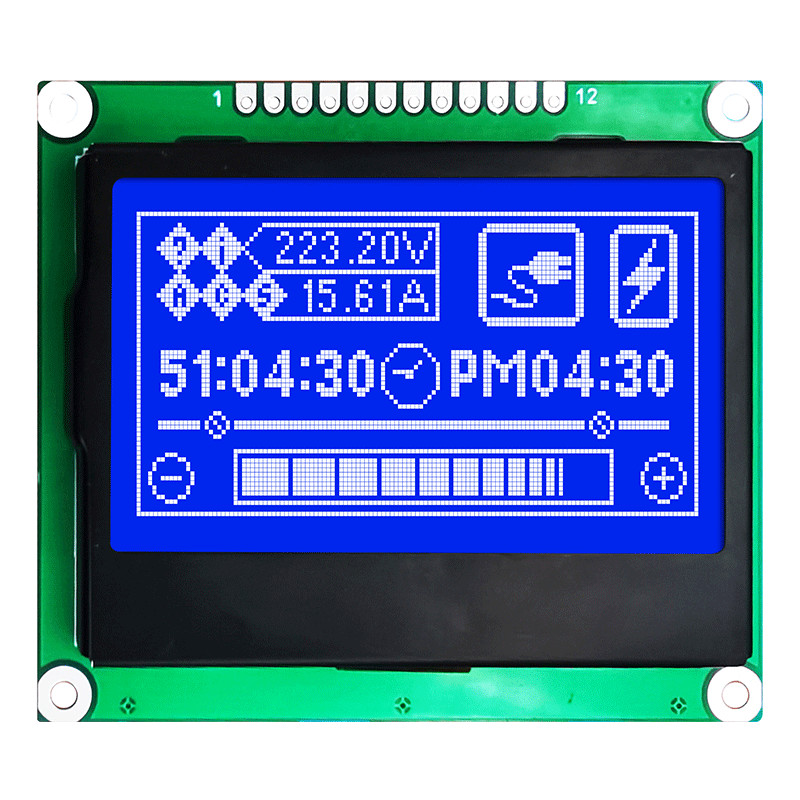

HOTLCD 132x64 graphic Liquid Crystal Display module shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTM-COG13264C01A-SPI display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.

LCD Product Specifications

Absolute Maximum Ratings

Electrical Characteristics

Items	Symbol	MIN.	TYP.	MAX.	Unit	Condition
Operating Voltage	VDD	2.8	3.3	-	V	-
Input High Voltage	VIH	0.8 x VDD	-	VDD	V	/CS1,/RES,A0,SCLK SDA
Input Low Voltage	VIL	VSS	-	0.2 x VDD	V
Output High Voltage	VOH	0.8 x VDD	-	VDD	V	D0~D7
Output Low Voltage	VOL	VSS	-	0.2 x VDD	V	D0~D7
Operation Current	Iop	-	100	150	A	VDD=3.3

LED Backlight Circuit

Items	Symbol	MIN.	TYP.	MAX.	Unit	Condition
Forword Voltage	Vf BLA	-	3.3	-	V	Without Resister
Forword Current	If BLA	-	45	-	A	-
