10.1inch 1280x800 IPS LVDS TFT Module Sunlight Readable/TFT-H101A10WXIFTKN40

TFT-H101A10WXIFTKN40 | 10.1" Sunlight Readable LCD | No Touch Screen | 1280X800 Pixels

This 1280X800 sunlight readable TFT is equipped with a powerful backlight for visibility in bright lighting conditions including direct sunlight. 24-bit LCD display with LVDS interface and full viewing angle. This LCD monitor is RoHS compliant. touchscreen.

General Feature

Item	Standard Value	Unit
Display Size	10.1	Inch

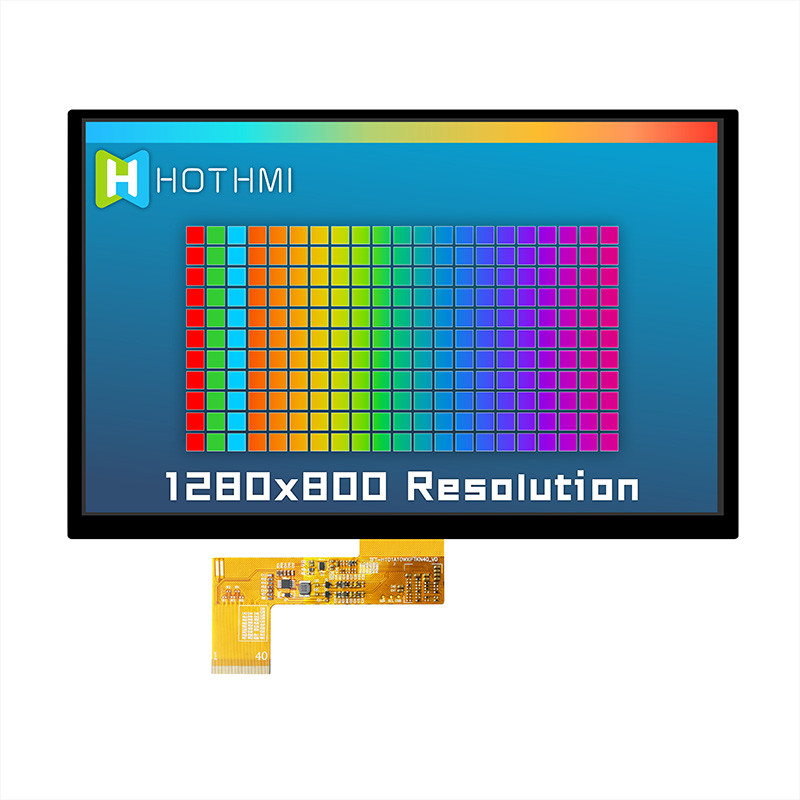

Number of Pixels	1280(H)3(RGB) 800(V)	dots
Active Area	216.96(H)* 135.60(V)	mm
Outline Dimension	229.10(H) * 148.90(V) * 4.35(D)	mm
Viewing Direction	FULL O'clock	-
Interface	LVDS	-

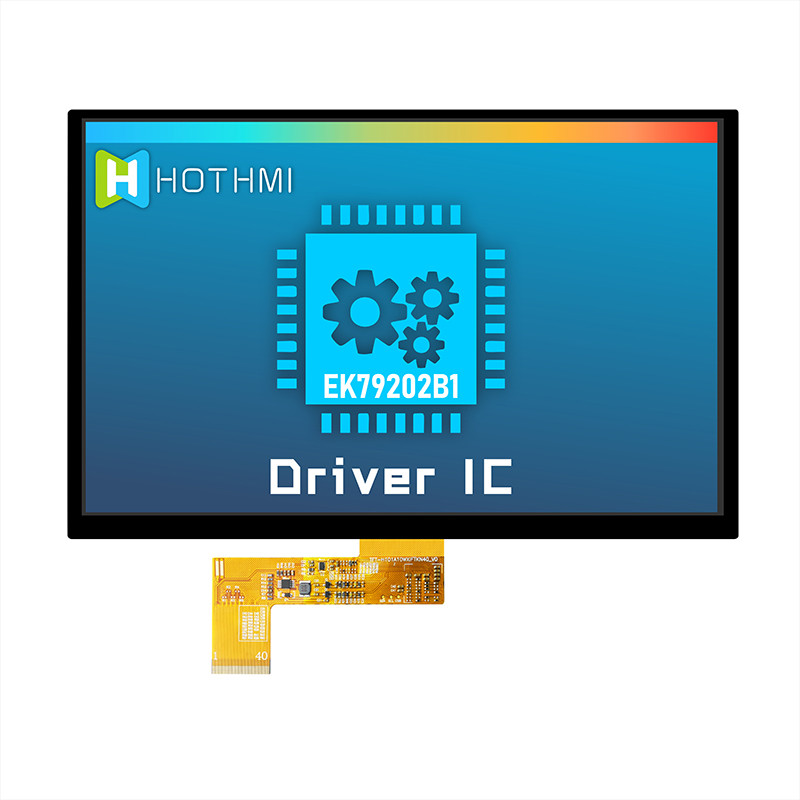

Driver IC	EK79202B1	-
Driver Condition	VCI=3.3V(Typ)	V
Backlight	-	-
Touch Panel	WHITOUT TOUCH
CTP Driver IC	-	-
Driver Condition	VDD=3.3V	V
TFT Operation AT	-20 ～ +70	℃
TFT Storage AT	-30 ～ +85	℃

TFT Pin Description

Pin NO.	Symbol	Description
1	NC	Don't connect
2~3	VCI	Digital Power
4	NC	Don't connect
5	RESX	TFT Reset Pin.low in reset state
6	STBYB	Standby mode mode control. STBYB = ″VCI″normal operation;STBYB = ″GND″Standby mod
7	GND	Ground
8	D0N	LVDS data input pins
9	D0P	LVDS data input pins
10	GND	Ground
11	D1N	LVDS data input pins
12	D1P	LVDS data input pins
13	GND	Ground
14	D2N	LVDS data input pins
15	D2P	LVDS data input pins
16	GND	Ground
17	DCKN	LVDS clock input pins.
18	DCKP	LVDS clock input pins.
19	GND	Ground
20	D3N	LVDS data input pins
21	D3P	LVDS data input pins
22	GND	Ground
23~24	NC	Don't connect
25	GND	Ground
26~27	NC	Don't connect
28	HSD	18-bit / 24-bit input select. HSD=″VCI″ 24 bit ; HSD=″GND″ 18 bit
29	NC	Don't connect
30	GND	Ground
31~32	LEDK	LED Cathode
33~38	NC	Don't connect
39~40	LEDA	LED Anode
