    5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H050A7SVISTKN40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer


    TFT-H050A7SVISTKN40 | 5.0" IPS LCD Display | TFT LCD Display Manufacturer | 800x480 resolution | -30℃~85℃ | Sunlight Readable Monitors | wide temperature


    Introducing the TFT-H050A7SVISTKN40, a high-quality 5.0 inch IPS LCD display from a trusted TFT LCD display manufacturer. With an impressive 800x480 resolution, this display provides clear and vibrant visuals that are sure to enhance any project.

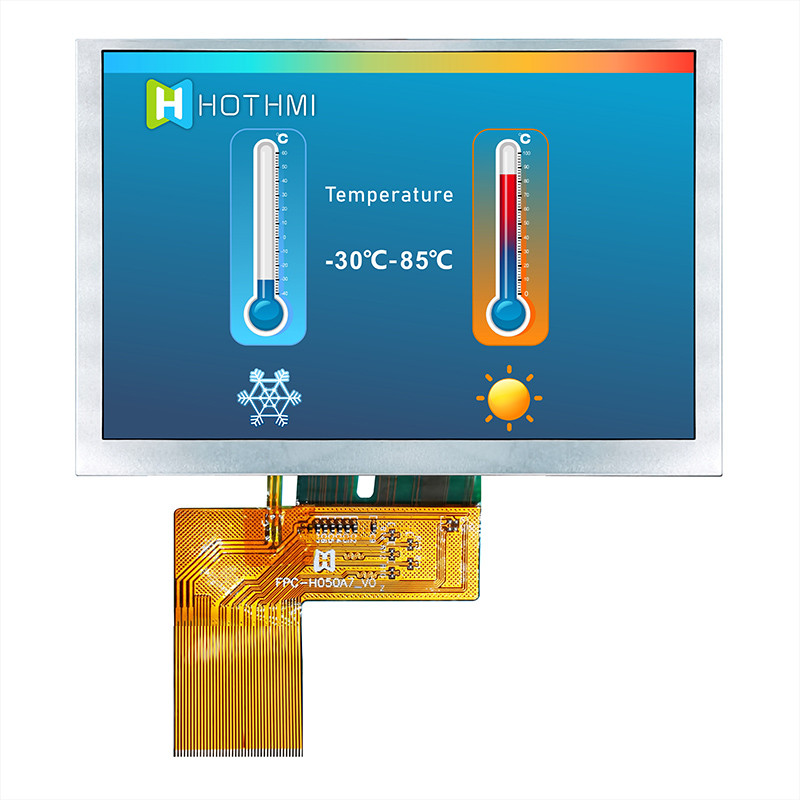

    But what sets this display apart is its ability to be used in a wide range of temperatures, from -30℃ to 85℃. Whether you're working in freezing cold or scorching hot environments, this display will remain reliable and functional.

    And thanks to its Sunlight Readable technology, this display is easy to view even in direct sunlight, making it the perfect choice for outdoor applications.

    With its durable construction and top-notch performance, the TFT-H050A7SVISTKN40 is the perfect display solution for any project that demands the very best.


    General Feature


    Item

    Standard Value

    Unit

    Display Size

    5.0

    Inch

    Number of Pixels

    800(H)*3(RGB)* 480(V)

    dots

    Active Area

    108.00x64.80mm

    mm

    Outline Dimension

    120.70x75.80x2.90

    mm

    Viewing Direction

    FULL O'clock

    -

    Interface

    LVDS 3 Lane/4 Lane

    -

    Driver IC

    ST7262-

    Driver Condition

    VCI=3.3V(Typ)

    V

    Backlight

    -

    -

    Touch Panel

    WHITOUT TOUCH

    CTP Driver IC

    --

    Driver Condition

    VDD=3.3

    V

    TFT Operation AT

    -30 ~ +85

    TFT Storage AT

    -30 ~ +85


    TFT Pin Description

    Pin NO.

    Symbol

    Description

    1 ~ 2LEDA

    LED anode

    3 ~ 4LEDK

    LED cathode

    5 ~ 6VCI

    3.3V power supply

    7NC

    Not connected

    8MODE

    Sets LVDS data format

    9LENS

    Sets LVDS lane


    10


    SHLR

    Horizontal scanning direction control pin

    (L: from right to left ; H: from left to right)


    11


    UPDN

    Vertical scanning direction control pin

    (L: from down to up ; H: from up to down )

    12 ~ 14GND

    Power supply ground

    15DCKN

    LVDS Negative clock signal (-)

    16DCKP

    LVDS Positive clock signal (+)

    17 ~ 18GND

    Power supply ground

    19D3N

    LVDS Negative data signal (-)

    20D3P

    LVDS Positive data signal (+)

    20D3P

    LVDS Positive data signal (+)


    All Products


    Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
    Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
    Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
    Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
    ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

    Search keyword: tft 5.0, tft 5.0", 5.0 tft lcd, 5.0" tft lcd, 5.0 inch tft lcd, tft lcd 5.0, 5.0 tft display, 5.0" tft display,5.0 inch tft display, tft display 5.0, tft display 5.0"

    5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer


    TFT Custom Solutions

    5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


    5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    Touchscreen Add-on

    Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.


    5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


    5.0 Inch 800x480 Display IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    Cover Glass

    Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
