    4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H043B15WVIST4N45
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation

    4.3 Inch TFT LCD Display Module 480X800 TFT LCD Display Manufacturer For Instrumentation


    TFT-H043B15WVIST4N45 | 4.3" IPS LCD Display | TFT LCD Display Manufacturer | 480x800 resolution | -20℃~70℃ | For Instrumentation


    Introducing the TFT-H043B15WVIST4N45, a high-quality 4.3 inch TFT LCD display module designed for instrumentation applications. With a resolution of 480x800 pixels and an IPS LCD display, this module delivers crystal-clear images and vibrant colors, making it perfect for displaying critical data and information.

    Designed and manufactured by a leading TFT LCD display manufacturer, this module features a wide temperature range of -20℃ to 70℃, making it suitable for use in a variety of environments. Its compact size and easy-to-use interface make it easy to integrate into your existing instrumentation systems.

    Whether you're designing a new instrument or upgrading an existing one, the TFT-H043B15WVIST4N45 offers the reliability and performance you need to get the job done. With its high-quality display and durable construction, this module is sure to meet your needs for years to come.

    So why wait? Order your TFT-H043B15WVIST4N45 TFT LCD display module today and experience the difference for yourself!


    General Feature


    Item

    Standard Value

    Unit

    Display Size

    4.3

    Inch

    Number of Pixels

    480(H)*3(RGB)* 800(V)

    dots

    Active Area

    56.16x93.6mm

    mm

    Outline Dimension

    60.86x102.57x2.3

    mm

    Viewing Direction

    FULL O'clock

    -

    Interface

    SPI+RGB

    -

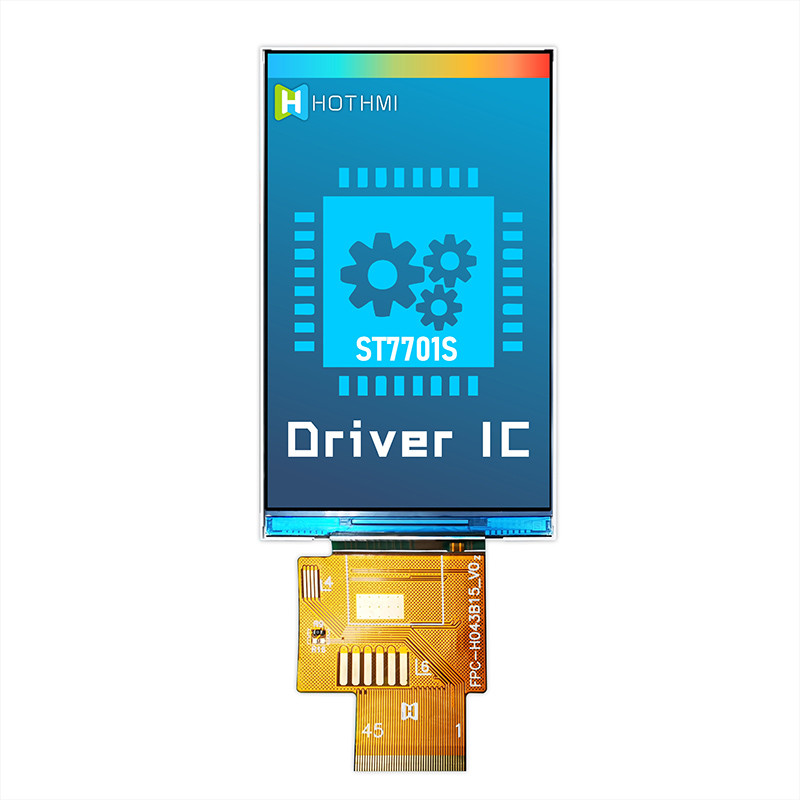

    Driver IC

    ST7701S
    -

    Driver Condition

    VCI=2.8V(Typ)

    V

    Backlight

    -

    -

    Touch Panel

    WHITOUT TOUCH

    CTP Driver IC

    --

    Driver Condition

    VDD=2.8

    V

    TFT Operation AT

    -20 ~ +70

    TFT Storage AT

    -30 ~ +80


    Pin Description


    Pin NO.Symbol

    Description

    1RTP-XR/CTP-SCLTouch control pin
    2RTP-YD/CTP-SDATouch control pin
    3RTP-XL/CTP-INTTouch control pin
    4RTP-YU/CTP-RESTouch control pin
    5~6GNDGround
    7VCIDigital Power
    8IOVCCPower Supply for I/O System
    9SDOSerial data output pin used for the SPI Interface.
    10SDISerial data input/output bidirectional pin for SPI Interface.
    11SCLSerial clock input for SPI interface.
    12CSA chip select signal
    13RESXTFT Reset Pin
    14~21DR[7~0]Red data bus
    22~29DG[7~0]Green data bus
    30~37DB[7~0]Blue data bus

    38


    DEN

    Data input enable.

    Low: access enabled ;

    High: access inhibited

    39PCLKPixel clock input pin
    40HSDHorizontal sync signal
    41VSDVertical sync signal
    42NCNo Connect
    43LEDKLED Cathode
    44NCNo Connect
    45LEDALED Anode

    All Products


    Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
    Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
    Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
    Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.

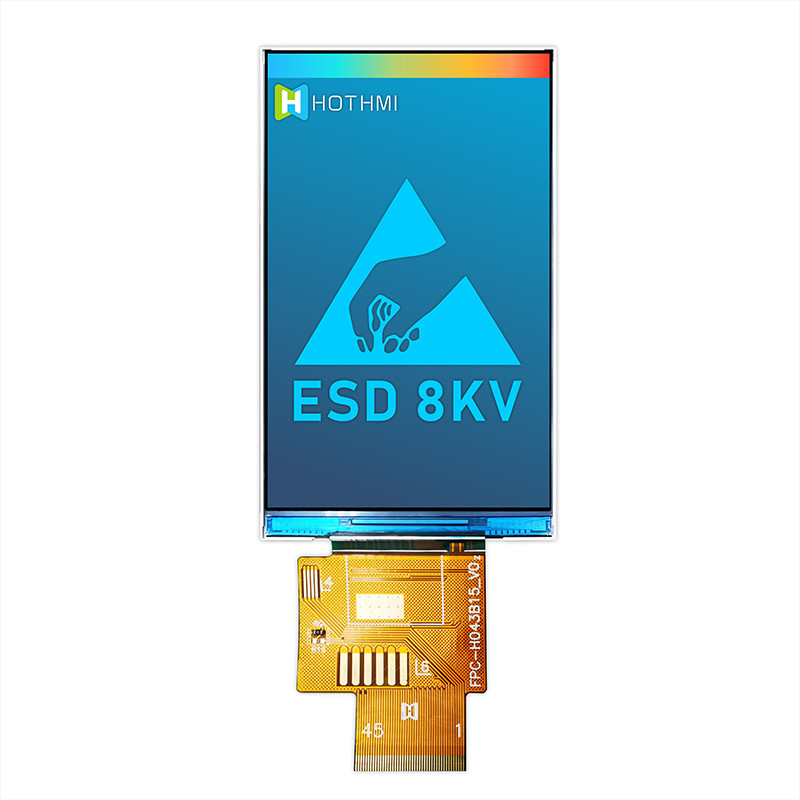

    ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

    Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display,4.3 inch tft display, tft display 4.3, tft display 4.3"

    4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation


    TFT Custom Solutions

    4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


    4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation

    Touchscreen Add-on

    Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.


    4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation

    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


    4.3 Inch TFT LCD Display Module 480X800 Manufacturer For Instrumentation

    Cover Glass

    Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
