4.3 Inch Resistive Touchscreen Module 480X800 TFT LCD Display Manufacturer

TFT-H043B15WVIST3R45 | 4.3" IPS LCD Display | TFT LCD Display Manufacturer | 480x800 resolution | -20℃~70℃ | For Instrumentation | Resistive touch

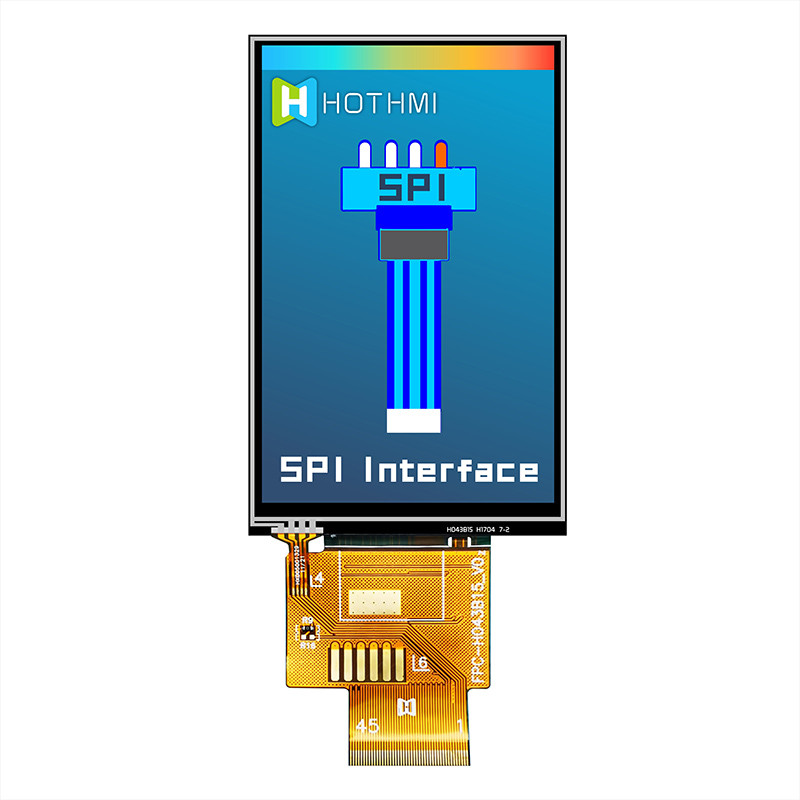

The TFT-H043B15WVIST3R45 is a high-quality 4.3-inch TFT-LCD display module with a resistive touch screen. It has a compact dimension size of 60.86x102.57 mm, with an active area of 56.16x93.6 mm (4.3" diagonal), and a resolution of 480x800 pixels. The display module is equipped with the ST7701S controller IC, which supports both SPI(3-Wire/4-Wire) Interface for seamless integration with your project.

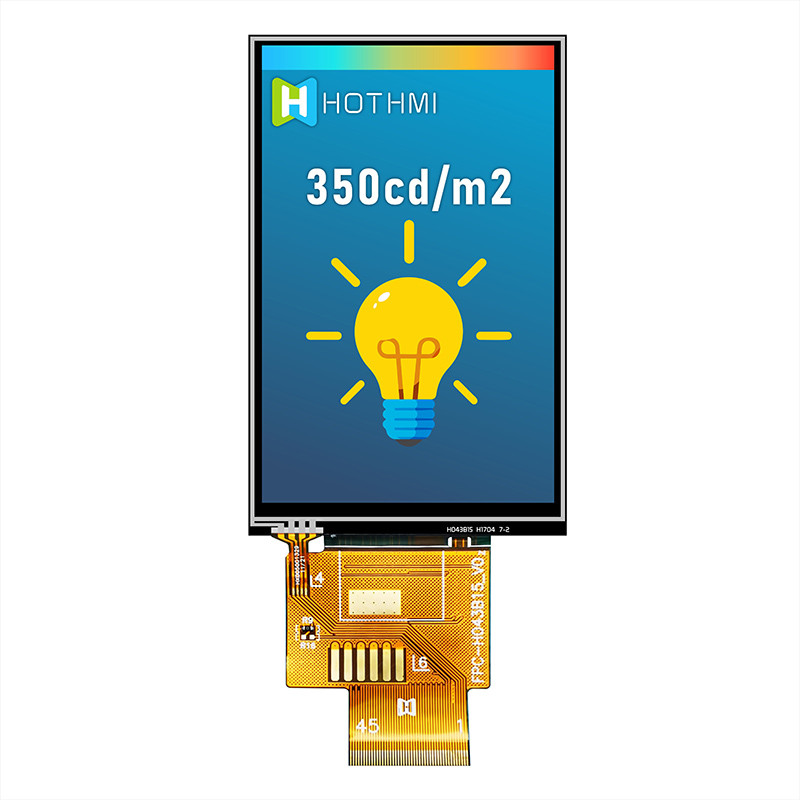

This TFT LCD module boasts a brightness of 350 cd/m2, making it ideal for use in bright environments. Its contrast ratio (typical value) of 500:1 ensures that images and text are sharp and clear. The TFT-H043B15WVIST3R45 TFT LCD module is designed to operate with a power supply voltage of 3.3V (typical 3.3V), providing efficient power consumption.

The module is built to withstand a wide range of temperatures, with a working temperature range of -20 to +70℃ and a storage temperature range of -30 to +80℃. This makes it suitable for use in a variety of applications, even in challenging environments. With its impressive features and reliable performance, the TFT-H043B15WVIST3R45 TFT-LCD display module is an excellent choice for your next project.

General Feature

Pin Description

All Products

Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display,4.3 inch tft display, tft display 4.3, tft display 4.3"

TFT Custom Solutions

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

---

Touchscreen Add-on

Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.

---

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.

---

Cover Glass

Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.

SPEC_H043B13_V0-2.pdf
