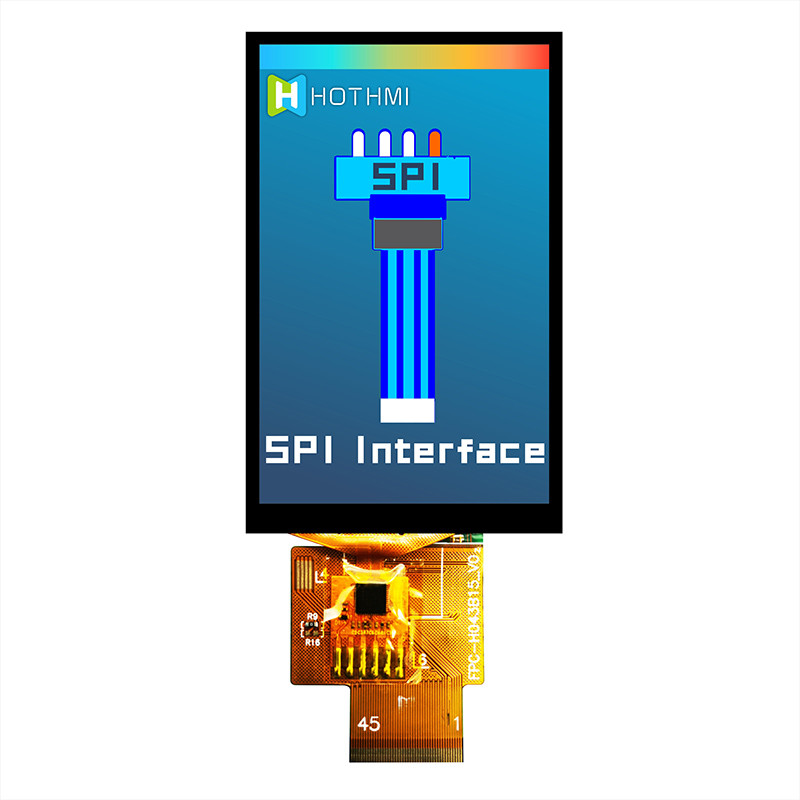

    4.3 Inch IPS SPI Capacitive Touch Panel TFT Display 480x800 Pcap Monitor

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H043B15WVIST3C45
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    4.3 Inch IPS SPI Capacitive Touch Panel TFT Display 480x800 Pcap Monitor

    4.3 inch IPS SPI Capactitive Touch Panel TFT Display 480x800 resolution


    TFT-H043B15WVIST3C45 | 4.3" IPS LCD Display | TFT LCD Display Manufacturer | 480x800 resolution | -20℃~70℃ | Capactitive Touch


    This is a description of a TFT display module with a capacitive touch panel and a 3:2 aspect ratio. The display has a size of 4.3 inches and a resolution of 480×800 pixels. It utilizes an IPS panel, which is a popular technique in the market and provides wide viewing angles of 80/80/80/80 degrees.

    The driver IC GT911 supports a 4-lanes MIPI interface and the backlight has low power consumption. The display offers a brightness of 350 cd/m2 and a contrast ratio (typical value) of 800:1.

    The module operates within a power supply voltage range of 2.6~3.6V, with a typical value of 3.3V. It is designed to work in temperatures ranging from -20 to +70℃, while the storage temperature covers from -30 to +80℃.


    General Feature


    Item

    Standard Value

    Unit

    Display Size

    4.3

    Inch

    Number of Pixels

    480(H)*3(RGB)* 800(V)

    dots

    Active Area

    56.16x93.6mm

    mm

    Outline Dimension

    62.46x102.97x3.85

    mm

    Viewing Direction

    FULL O'clock

    -

    Interface

    SPI+RGB

    -

    Driver IC

    ST7701S(TFT)GT911(PCAP)
    -

    Driver Condition

    VCI=3.3V(Typ)

    V

    Backlight

    -

    -

    Touch Panel

    WHITOUT TOUCH

    CTP Driver IC

    --

    Driver Condition

    VDD=3.3

    V

    TFT Operation AT

    -20 ~ +70

    TFT Storage AT

    -30 ~ +80


    Pin Description


    Pin NO.Symbol

    Description

    1RTP-XR/CTP-SCLTouch control pin
    2RTP-YD/CTP-SDATouch control pin
    3RTP-XL/CTP-INTTouch control pin
    4RTP-YU/CTP-RESTouch control pin
    5~6GNDGround
    7VCIDigital Power
    8IOVCCPower Supply for I/O System
    9SDOSerial data output pin used for the SPI Interface.
    10SDISerial data input/output bidirectional pin for SPI Interface.
    11SCLSerial clock input for SPI interface.
    12CSA chip select signal
    13RESXTFT Reset Pin
    14~21DR[7~0]Red data bus
    22~29DG[7~0]Green data bus
    30~37DB[7~0]Blue data bus

    38


    DEN

    Data input enable.

    Low: access enabled ;

    High: access inhibited

    39PCLKPixel clock input pin
    40HSDHorizontal sync signal
    41VSDVertical sync signal
    42NCNo Connect
    43LEDKLED Cathode
    44NCNo Connect
    45LEDALED Anode

    All Products


    Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
    Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
    ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
