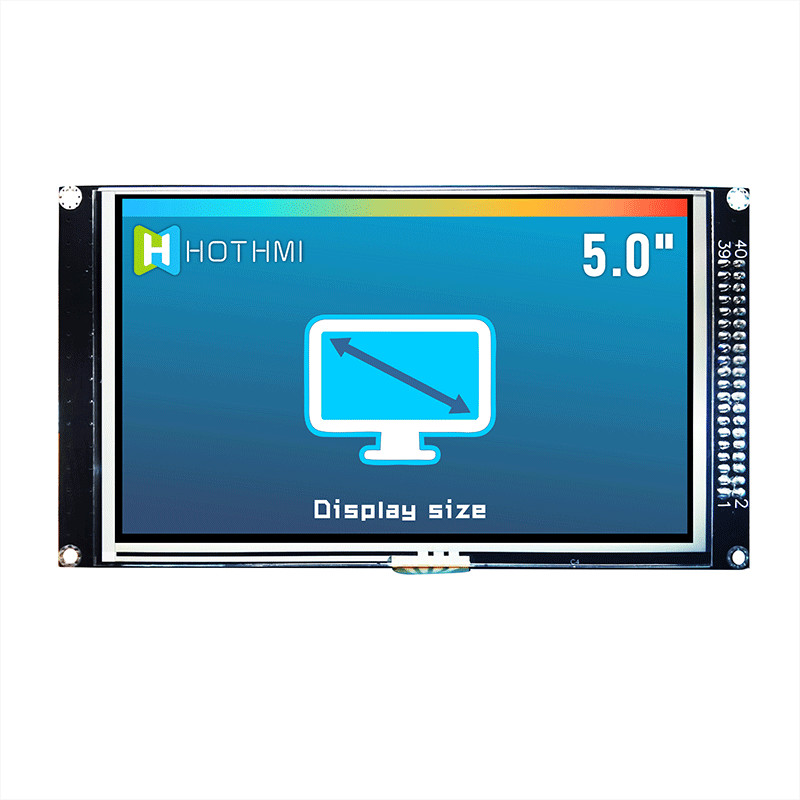

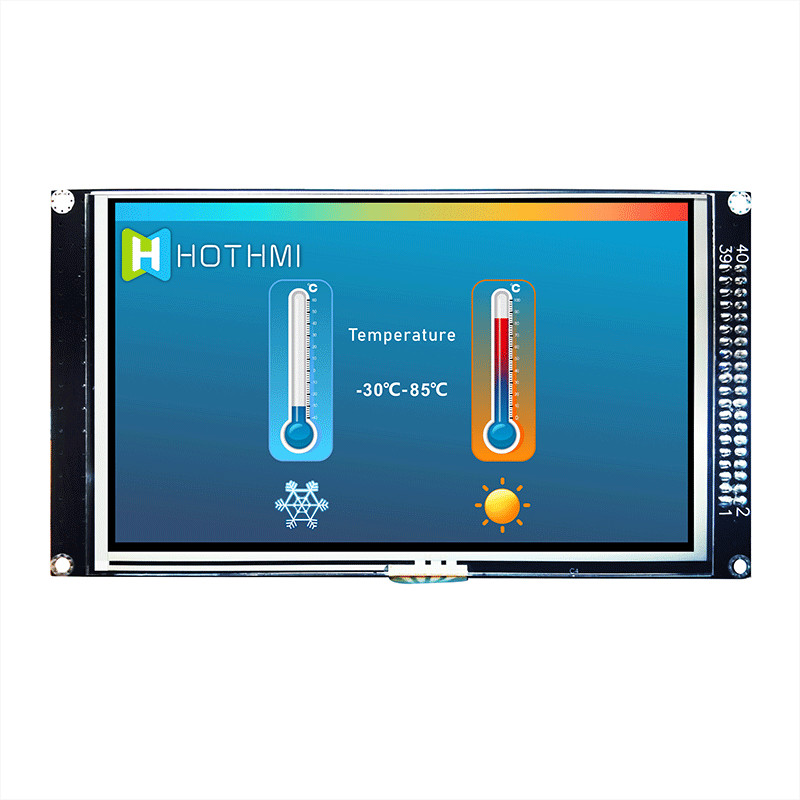

5.0 Inch 800x480 IPS Resistive TFT Module Panel With LCD Controller
Board
LCM-TFT050T1SVP16R40D | 5.0" IPS LCD | 800x480 Pixels | Resistive
Touchscreen | LCD Controller Board
Since ordinary TFT displays are basically led out by FPC flexible
cables, they need to be connected to the customer's motherboard
through welding or sockets. The boost circuit can only be used.
Therefore, Xinhongtai HOTLCD R&D team designed a 5.0-inch
high-definition TFT display module LCM-TFT050T1 with an MCU8/16-bit
interface that is convenient for customers to use. Built-in SSD1963
controller, can be connected to the main board without peripheral
circuit (connector is optional), single power supply DC3.3V power
supply. This TFT module can be equipped with touch screen and
built-in XPT2046 resistive touch screen driver.

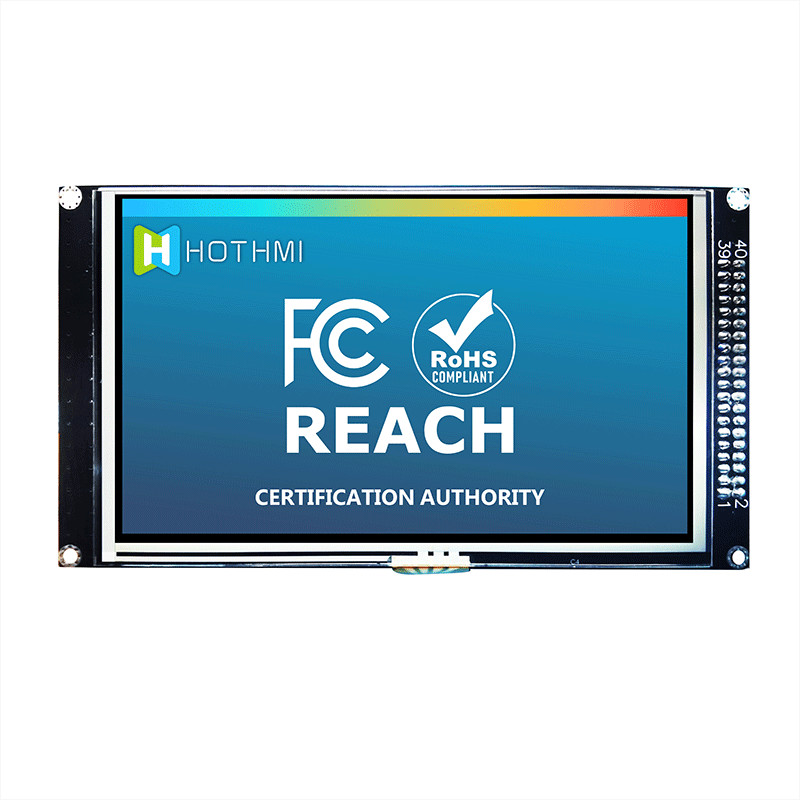

All materials of this module comply with the RoHS standard for
environmental protection, and are widely used in various
instruments, smart devices, analytical instruments, industrial
instruments, elevator displays, etc. ARM, etc.
At present, there are 1.44 inches, 1.8 inches, 2.0 inches, 2.4
inches, 2.8 inches, 3.2 inches, 3.5 inches, 4.3 inches, 5.0 inches,
7.0 inches, 8.0 inches, 10.1 inches and other sizes for customers
to choose from, generally used in industrial control equipment .
General information
Item | Specification | Unit |
Outline Dimension | 143.5x81.0x8.12mm | mm |
Display area | 108.0x64.8mm | mm |
Number of Pixel | 800(H) x 480(V) | pixels |
Pixel pitch | - | mm |
Pixel arrangement | RGB Vertical Stripe |
|
Display mode | Normally Black |
|
NTSC | 70(Typ.) | % |
Surface treatment | Antiglare, Hard-Coating (3H) |
|
Weight | - | g |
Back-light | Single LED (Side-Light type) |
|
Power Consumption | Logic System (White Pattern) | SSD1963 | W |
B/L System | - | W |
| Pin No. | Pin Name | I/O | Function |
| 1 | VDD | P | Power Supply (5V) |
| 2 | GND | P | Ground (0V) |
| 3 | DB0-DB15 | I/O |
16-Bit parallel interface |
| | | | | |
| 18 | | | |
| 19 | /CS | I | Chip Select Signal /CS = L, enable Access To The LCD module |
| 20 | RS | I | Data Type Select RS=L, Command Write, RS=H, Data Write |
| 21 | /WR | I | Write Enable Input |
| 22 | /RD | I | Read Enable Input |
| 23 | /RESET | I | /RESET = H, Normal Running /RESET = L, Initialization is executed |
| 24 | BL_EN | I | |
| 25 | RTP_SO | O | Serial Data Output. Data is shifted on the falling |
| 26 | RTP_IRQ | O | Pen Interrupt. |
| 27 | RTP_SI | I | Serial Data Input. If CS is LOW, data is latched on |
| 28 | - | | |
| 29 | RTP_SCK | I | External Clock Input to RTP |
| 30 | - | | |
| 31 | RTP_CS | I | Chip Select Input |
| 32 | - | | |
| 33 | TE | O | Tearing effect |
| 34-40 |
- | | |
All Products
Reliability Testing | Customers can expect all production parts to meet or exceed
operational requirements over temperature, humidity, and vibration. |
Glass Cleanliness | Customers can expect glass to be protected by liners and presented
mindful of cleanliness standards. This means glass will be clean of
contaminants, fingerprints, and other foreign material. |
Bezel Appearance | Bezels will be uniformly painted free of foreign materials and
distracting cosmetic blemishes. Our standards maintain a clean
scratch-free surface. |
PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes
are free of bubbles, foreign contaminants, and meet all UL fire
requirements. PCB materials will always be delivered within
industry norms. PCB edges will be cleanly cut and void of burrs. |
Soldering | Soldering of all leaded and SMT components is consistent in
providing the mechanical security and electrical connectivity. |
Consistency | Our manufacturing and inspection processes ensure product
consistency from lot to lot. This means orders processed over the
years will continually meet your expectations. We do this by
exacting manufacturing specifications, with attention to detail in
our processes, and by comparing to the golden units. |
Product Integrity | Quality in product manufacturing ensures integrity in construction.
Customers can expect tight assembly without worry of loose parts or
missing material. Our products will meet all environmental
expectations including temp, humidity, & vibration conditions. |
Glass Color | While normal variations of glass color may occur (due to
manufacturing tolerances), Newhaven Display maintains color
compliance per internal approved color charts. These charts are
maintained to ensure any minor glass deviations are identified and
corrected as needed. |
ESD Protection & Safety | All devices are designed and handled in consideration of ESD
protection. This includes ESD-SAFE packaging within anti-static
bags, wraps, and trays. Customers are reminded to always follow ESD
safety to best protect the devices. |
