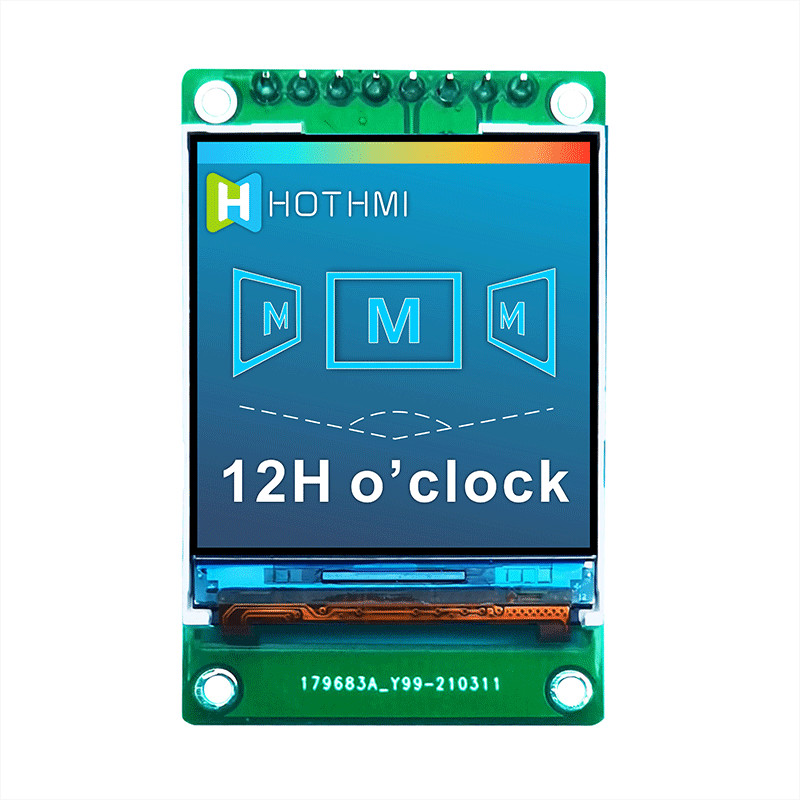

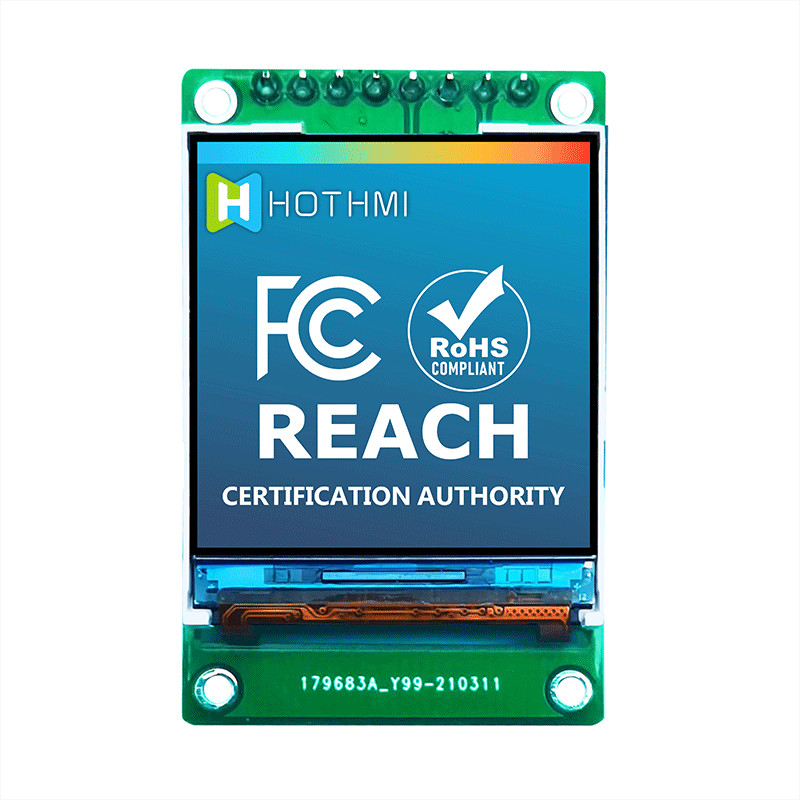

1.44 Inch 128x128 TFT Module Panel With LCD Controller Board
LCM-TFT014T1QQS4LN08D | 1.44" 12H o'clock LCD | 128x128 Pixels |
Square screen | LCD Controller Board | Luminance 260cd/m2 |
Interface SPI | IC ST7735S | -20°C ~ 70°C
Introducing the LCM-TFT014T1QQS4LN08D, a high-quality TFT LCD
display module designed for small-scale display projects. With a

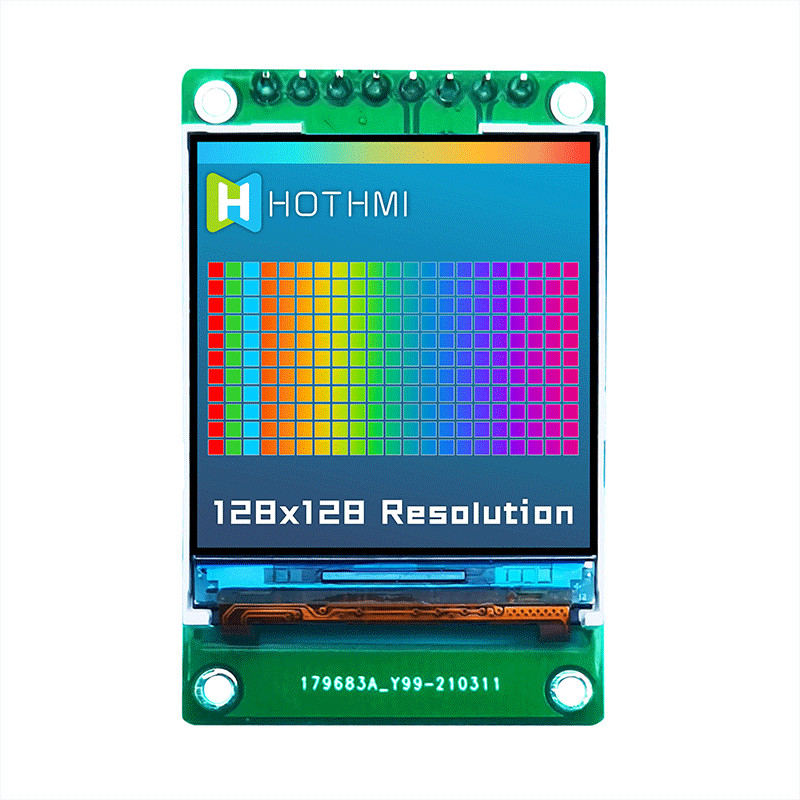

1.44-inch diagonal screen size and a resolution of 128x128 pixels,
this square-shaped display is perfect for showcasing high-quality
graphics and images.
Featuring an integrated LCD controller board, interfacing with a
microcontroller unit (MCU) is made easy with a serial peripheral
interface (SPI) communication protocol. Additionally, with a

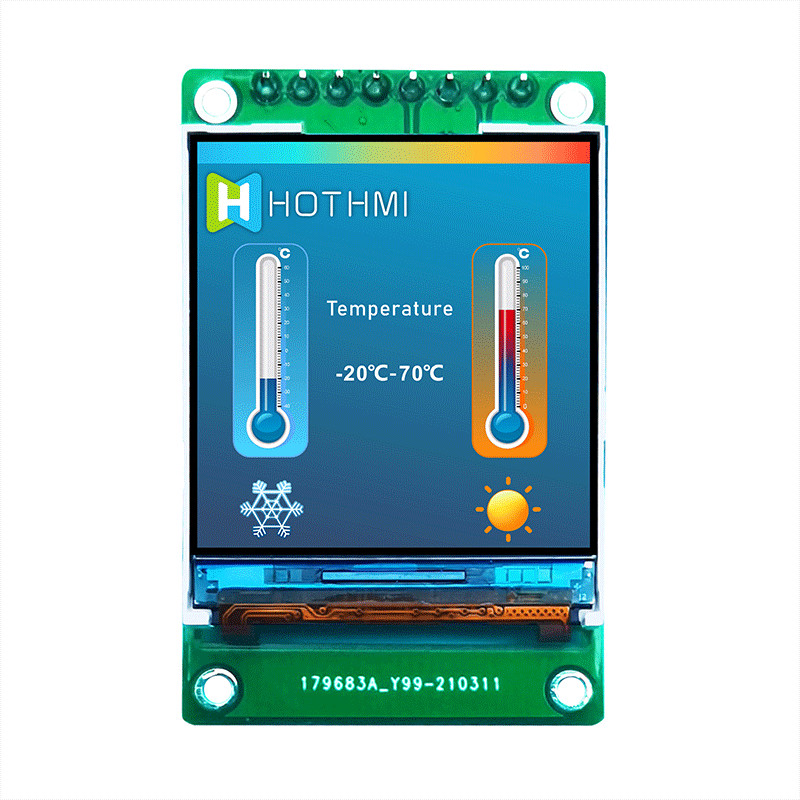

luminance of 260cd/m2 and an operating temperature range of -20°C
to 70°C, this display is suitable for both indoor and outdoor
environments.
The LCM-TFT014T1QQS4LN08D uses the ST7735S controller IC, which
offers a high-speed SPI interface and a wide range of features such
as color inversion, partial display mode, and programmable frame
rate. The built-in backlight driver circuit ensures clear images
even in low-light conditions.
If you're looking for a compact and versatile solution for your
display projects, the LCM-TFT014T1QQS4LN08D TFT LCD display module
is the perfect choice. Experience high-quality graphics and ease of
use with this innovative display solution.
General information
Item | Specification | Unit |
Outline Dimension | 30x46.5x11.3 | mm |
Display area | 25x26.5 | mm |
Number of Pixel | 128(H) x 128(V) | pixels |
Pixel pitch | - | mm |
Pixel arrangement | RGB Vertical Stripe |
|
Display mode | Normally Black |
|
NTSC | 70(Typ.) | % |
Surface treatment | Antiglare, Hard-Coating (3H) |
|
Weight | - | g |
Back-light | Single LED (Side-Light type) |
|
Power Consumption | Logic System (White Pattern) | ST7735S | W |
B/L System | - | W |
| Pin No. | Pin Name | Function |
| 1 | VSS | Ground. |
| 2 | VCC | Power Supply for Analog. |
| 3 | SCLK | Clock signal. |
| 4 | SDA | Serial input data. |
| 5 | RES | Power Reset for Controller and Driver |
| 6 | D/C | Data/command selection. |
| 7 | CS | Chip Select |
| 8 | BLC | Backlight control H:ON L:OFF |
