    7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H070A2WSIFT8N50
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    7 Inch TFT LCD Panel Module IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

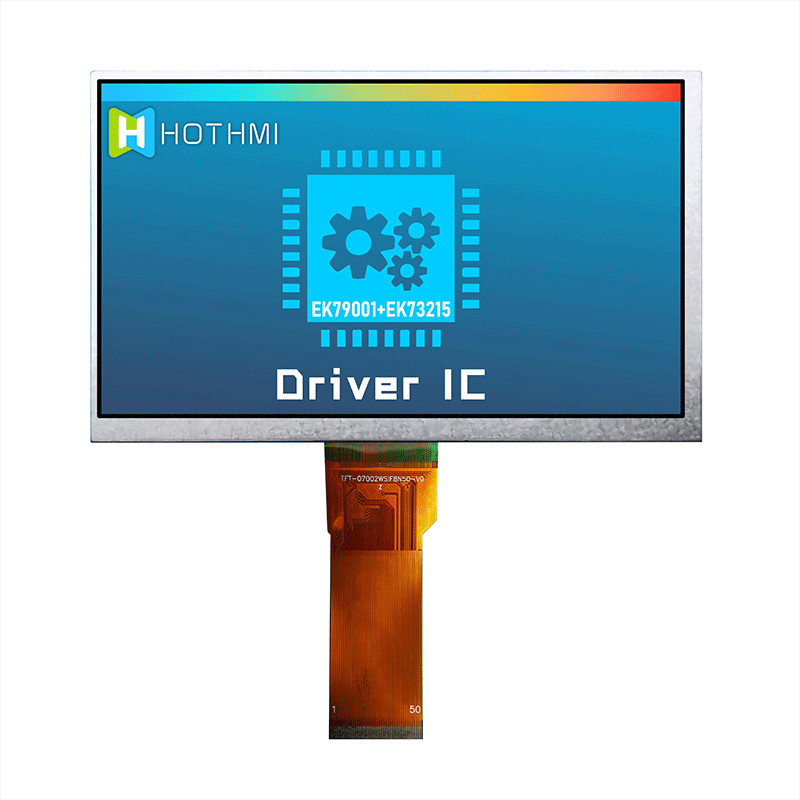

    TFT-H070A2WSIFT8N50 | 7.0" IPS LCD Display | TFT LCD Display Manufacturer | 1024x600 resolution | -20℃~70℃ | Sunlight Readable Monitors | IC EK79001+EK73215 | Interface TTL 24 bit


    Introducing the TFT-H070A2WSIFT8N50, a 7.0-inch IPS LCD display from a leading TFT LCD display manufacturer. With a resolution of 1024x600, this display offers sharp and vibrant visuals that are easy to see even in direct sunlight thanks to its sunlight readable monitors.

    Designed to withstand tough environments, the TFT-H070A2WSIFT8N50 can operate in temperatures ranging from -20℃ to 70℃. It features an IC EK79001+EK73215 and interface TTL 24 bit, ensuring smooth and reliable performance.

    Whether you're designing a rugged outdoor device or a portable electronic gadget, the TFT-H070A2WSIFT8N50 is an excellent choice for your display needs. Its advanced technology and durability make it a standout product in the market. Get your hands on one today and experience its superior performance for yourself.


    General Feature


    Item

    Standard Value

    Unit

    Display Size

    7.0

    Inch

    Number of Pixels

    1024(H)*3(RGB)* 600(V)

    dots

    Active Area

    164.90×100.00×5.50

    mm

    Outline Dimension

    154.2144x85.92

    mm

    Viewing Direction

    FULL O'clock

    -

    Interface

    TTL 24 bit

    -

    Driver IC

    EK79001+EK73215-

    Driver Condition

    VCI=3.3V(Typ)

    V

    Backlight

    -

    -

    Touch Panel

    WHITOUT TOUCH

    CTP Driver IC

    --

    Driver Condition

    VDD=3.3

    V

    TFT Operation AT

    -20 ~ +70

    TFT Storage AT

    -30 ~ +85


    TFT Pin Description


    Pin NO.SymbolDescription
    1 2

    LED A

    _

    LED Anode(+9.6V/240mA)
    3,4

    LED K

    _

    LED Cathode
    5GNDGround
    6VCOMTFT Common Electrode Voltage
    7VDDAnalog Power(2.5 ~ 3.6 V)
    8MODEDE / SYNC mode select under TTL mode. Normally pull high MODE=VDD : DE mode ;MODE=GND : HSD/VSD mode.
    9DEInput data enable control
    10VSDVertical sync input with negative polarity
    11HSDHorizontal sync input with negative polarity
    12- 19DB7-DB0Blue data bus
    20-27DG7-DG0Green data bus
    28-35DR7-DR0Red data bus
    36GNDGround
    37PCLKClock signal for data latching
    38GNDGround
    39L/RSource Right or Left sequence control. Normally pull high. SHLR = “L”, shift left;SHLR = ‘ H ” , shift right

    40


    U/D

    Gate Up or Down scan control. Normally pull low.

    UPDN = “L”,From top to bottom;

    UPDN = “H”, From bottom to top.

    41VGHPower supply for drive output High
    42VGLPower supply for drive output Low
    43AVDDPower supply for analog circuits
    44RESETGlobal reset pin.
    45NCNo Connect
    46VCOMTFT Common Electrode Voltage

    47


    DITHB

    Dithering function enable control. Normally pull low

    DITHER = “1”, Enable internal dithering function

    DITHER = “0”, Disable internal dithering function

    48GNDGround
    49,50NCNo Connect

    All Products


    Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
    Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
    Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
    Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
    ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

    Search keyword: tft 7.0, tft 7.0", 7.0 tft lcd, 7.0" tft lcd, 7.0 inch tft lcd, tft lcd 7.0, 7.0 tft display, 7.0" tft display,7.0 inch tft display, tft display 7.0, tft display 7.0"

    7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer


    TFT Custom Solutions

    7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


    7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    Touchscreen Add-on

    Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.


    7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


    7 Inch TFT LCD Panel IPS Sunlight Readable Monitors TFT LCD Display Manufacturer

    Cover Glass

    Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
