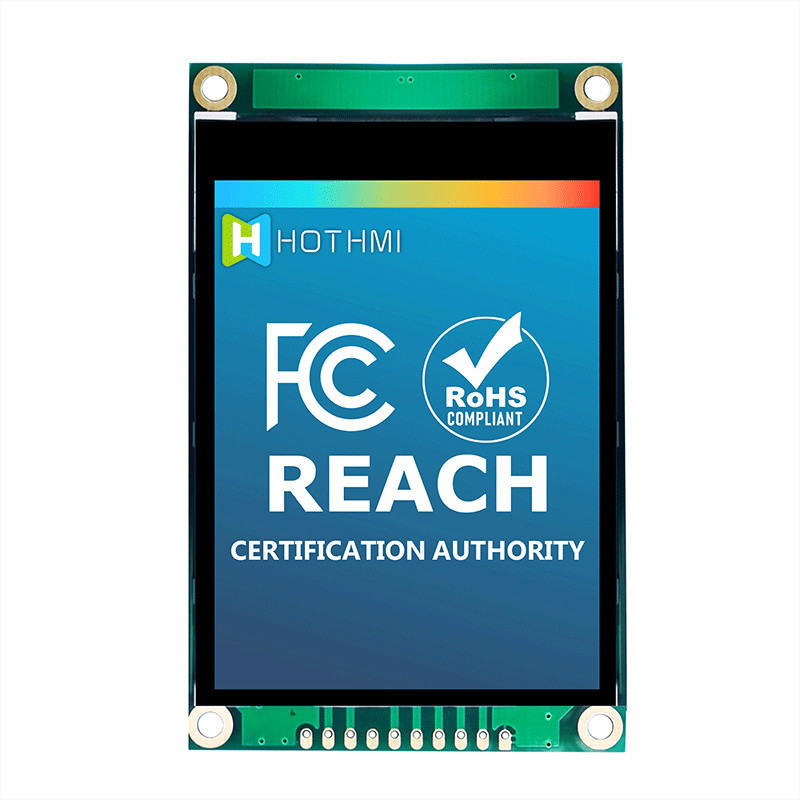

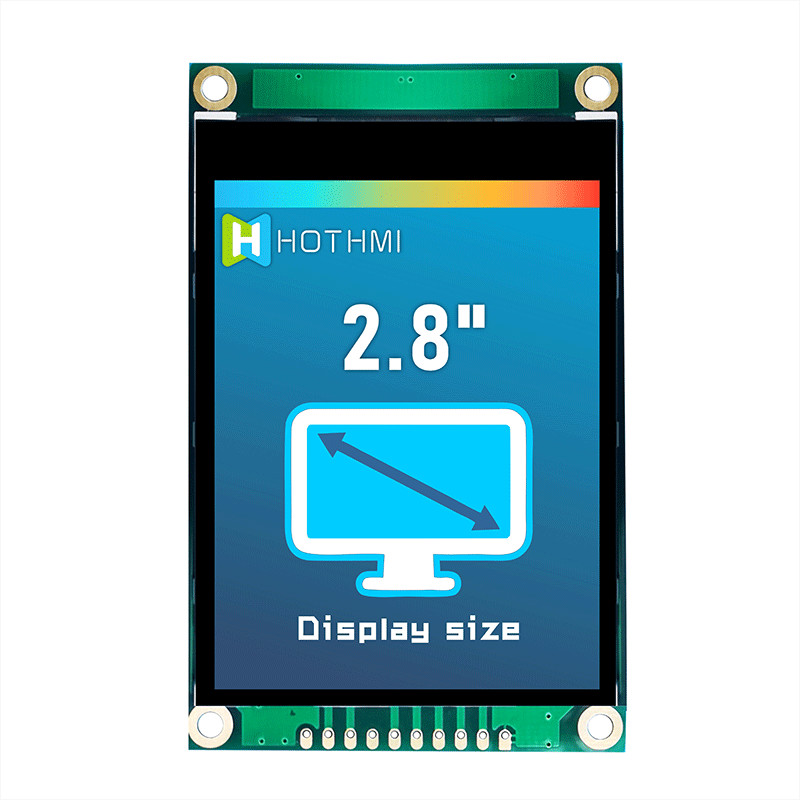

2.8 Inch 240x320 ST7789 TFT Module Panel With LCD Controller Board
LCM-TFT028T2 | 2.8" 6H o'clock LCD | 240x320 Pixels | LCD
Controller Board | Interface SPI | IC ST7789 | -20°C ~ 70°C
Introducing the LCM-TFT028T2, a compact and high-quality 2.8-inch
TFT module panel with a resolution of 240x320 pixels and an LCD

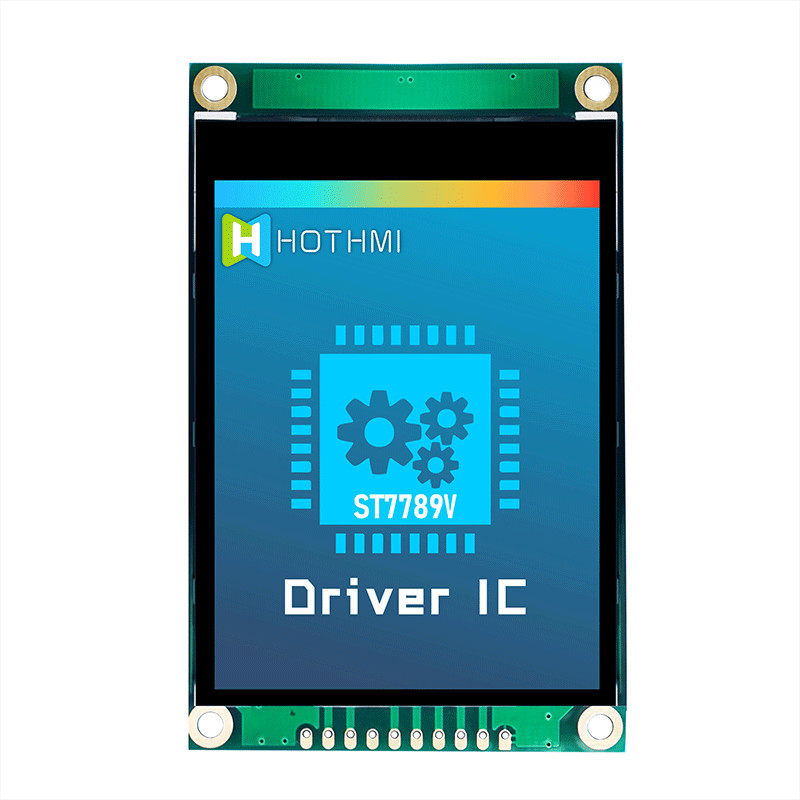

controller board. Equipped with an ST7789 IC and SPI interface,
this module delivers fast and reliable performance for a wide range
of applications.
The 2.8-inch LCD screen is easy to read and provides sharp and
clear images, making it ideal for use in handheld devices, portable
instruments, and other applications where space is limited. The
module is designed to operate in temperatures ranging from -20°C to
70°C, ensuring reliable performance in a variety of environments.
With its LCD controller board, the LCM-TFT028T2 is easy to
integrate into your existing setup, and the SPI interface provides
seamless connectivity. The module's compact size and low power
consumption make it an excellent choice for battery-powered
applications, while its high-quality display ensures that your
content is displayed with exceptional clarity and brightness.
Overall, the LCM-TFT028T2 is a versatile and reliable TFT module
panel that delivers outstanding performance in a compact form
factor. Whether you're looking to upgrade your existing display or
create a new handheld device, this module is an excellent choice
that will meet your needs and exceed your expectations.
General information
Item | Specification | Unit |
Outline Dimension | 51.0x81.2x2.3 | mm |
Display area | 43.2x57.6 | mm |
Number of Pixel | 240(H) x 320(V) | pixels |
Pixel pitch | - | mm |
Pixel arrangement | RGB Vertical Stripe |
|
Display mode | Normally Black |
|
NTSC | 70(Typ.) | % |
Surface treatment | Antiglare, Hard-Coating (3H) |
|
Weight | - | g |
Back-light | Single LED (Side-Light type) |
|
Power Consumption | Logic System (White Pattern) | ST7789 | W |
B/L System | - | W |
All Products
Reliability Testing | Customers can expect all production parts to meet or exceed
operational requirements over temperature, humidity, and vibration. |
Glass Cleanliness | Customers can expect glass to be protected by liners and presented
mindful of cleanliness standards. This means glass will be clean of
contaminants, fingerprints, and other foreign material. |
Bezel Appearance | Bezels will be uniformly painted free of foreign materials and
distracting cosmetic blemishes. Our standards maintain a clean
scratch-free surface. |
PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes
are free of bubbles, foreign contaminants, and meet all UL fire
requirements. PCB materials will always be delivered within
industry norms. PCB edges will be cleanly cut and void of burrs. |
Soldering | Soldering of all leaded and SMT components is consistent in
providing the mechanical security and electrical connectivity. |
Consistency | Our manufacturing and inspection processes ensure product
consistency from lot to lot. This means orders processed over the
years will continually meet your expectations. We do this by
exacting manufacturing specifications, with attention to detail in
our processes, and by comparing to the golden units. |
Product Integrity | Quality in product manufacturing ensures integrity in construction.
Customers can expect tight assembly without worry of loose parts or
missing material. Our products will meet all environmental
expectations including temp, humidity, & vibration conditions. |
Glass Color | While normal variations of glass color may occur (due to
manufacturing tolerances), Newhaven Display maintains color
compliance per internal approved color charts. These charts are
maintained to ensure any minor glass deviations are identified and
corrected as needed. |
ESD Protection & Safety | All devices are designed and handled in consideration of ESD
protection. This includes ESD-SAFE packaging within anti-static
bags, wraps, and trays. Customers are reminded to always follow ESD
safety to best protect the devices. |
