    4.3 Inch UART Capacitive Touch Screen TFT LCD 480x272 Display With Lcd Controller Board

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTM-H043A10-UART232-CTP-480x272
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

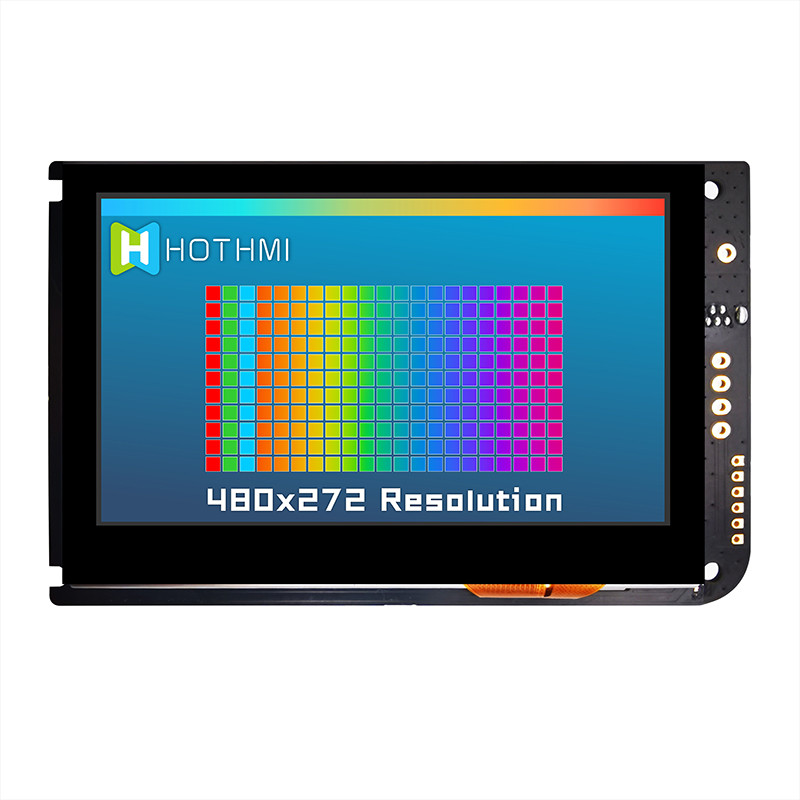

    4.3 Inch UART Capacitive Touch Screen TFT LCD 480x272 Display With Lcd Controller Board

    4.3 Inch UART capacitive touch Screen TFT LCD 480x272 Display WITH LCD CONTROLLER BOARD


    HTM-H043A10-UART232-pcap monitor | 4.3" IPS LCD Display | 480x272 dots | LCD Controller Board | Luminance 500cd/m2 | Interface UART(TTL) | TFT MODULE | -20°C ~ 70°C | capacitive touch Screen

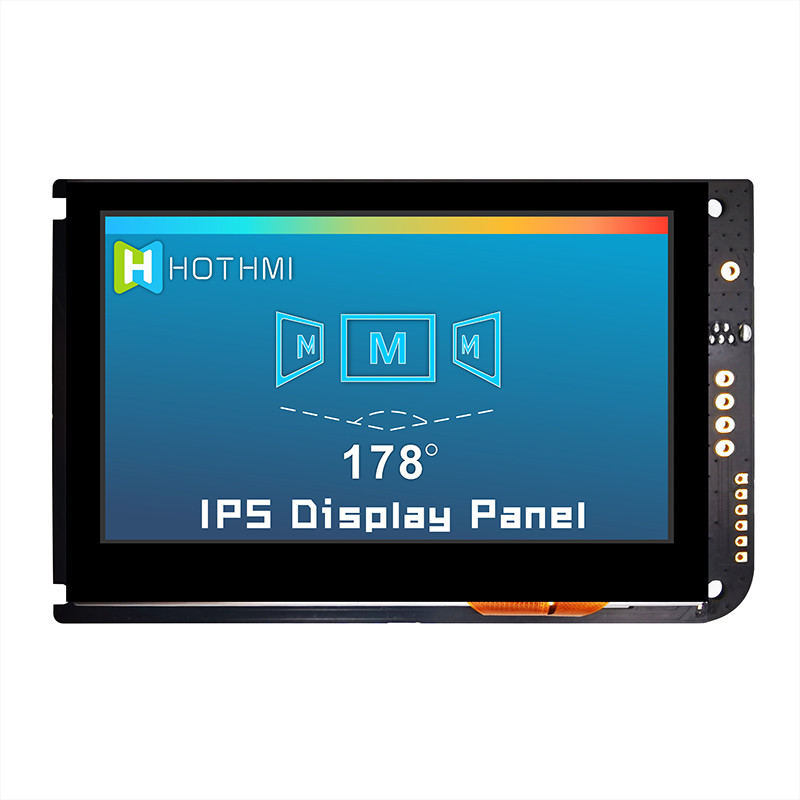

    Introducing the HTM-H043A10-UART232-pcap monitor, a high-quality TFT LCD display with a capacitive touch screen, perfect for a wide range of applications. Featuring a 4.3" IPS LCD display with a resolution of 480x272 dots and a luminance of 500cd/m2, this display offers exceptional clarity and brightness.

    The LCD controller board provides seamless integration with your device, and the interface uses UART (TTL) communication for ease of use. The TFT module ensures fast and accurate response times, making it perfect for use in touch-based applications.

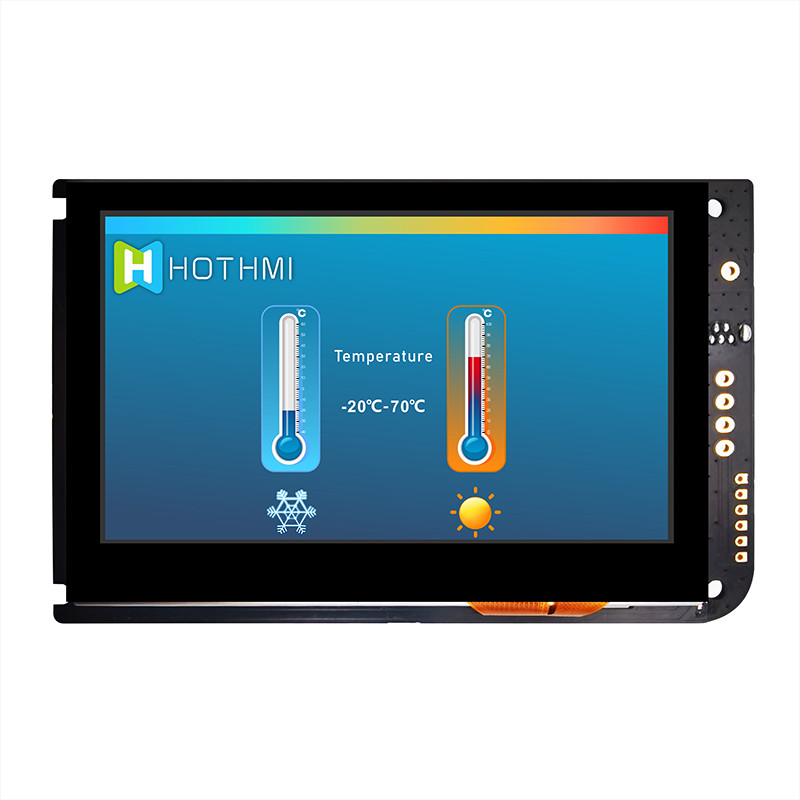

    With a temperature range of -20°C to 70°C, this display is suitable for use in a wide range of environments. Whether you're looking for a display for industrial use, a touch screen for an embedded system, or a monitor for a consumer product, the HTM-H043A10-UART232-pcap monitor is an excellent choice. Upgrade your display today and experience the high-quality performance of this exceptional product.


    General information


    Item

    Standard Value

    Unit

    Display Size

    4.3

    Inch

    Number of Pixels

    480(H)x272(V)

    dots

    Active Area

    122.5x73.2x7.9

    mm

    Outline Dimension

    95.04x53.86

    mm

    Viewing Direction

    FULL O'clock

    -

    Interface

    UART(TTL)

    -

    Driver IC

    --

    Driver Condition

    VCI=5.0V(Typ)

    V

    Backlight

    -

    -

    Touch Panel

    Capacitive Touch

    CTP Driver IC

    --

    Driver Condition

    VDD=5.0

    V

    TFT Operation AT

    -20 ~ +70

    TFT Storage AT

    -30 ~ +80


    All Products


    Reliability Testing

    Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.

    Glass Cleanliness

    Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.

    Bezel Appearance

    Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.

    PCB Appearance

    PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.

    Soldering

    Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.

    Consistency

    Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.

    Product Integrity

    Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.

    Glass Color

    While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.

    ESD Protection & Safety

    All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.
