8" Inch HI TFT LCD 1024x768 IPS Sunlight Readable For Applications
Industrial Display
HTM-H080A2-HI-A03 | 8.0 inch LCD | HI TFT Module | Sunlight
Readable | 12H o'clock | For Applications Industrial Display |
1024x768 dots
Introducing the HTM-H080A2-HI-A03, an 8-inch HI TFT LCD module
specifically designed for industrial applications. With its
impressive 1024x768 resolution and IPS technology, this
sunlight-readable display ensures exceptional visual clarity and
vibrant colors even in challenging lighting conditions.
Engineered for industrial environments, this display module is
built to withstand rigorous operating conditions. Its robust
construction and durable components ensure reliable performance and
longevity, making it ideal for demanding industrial applications.

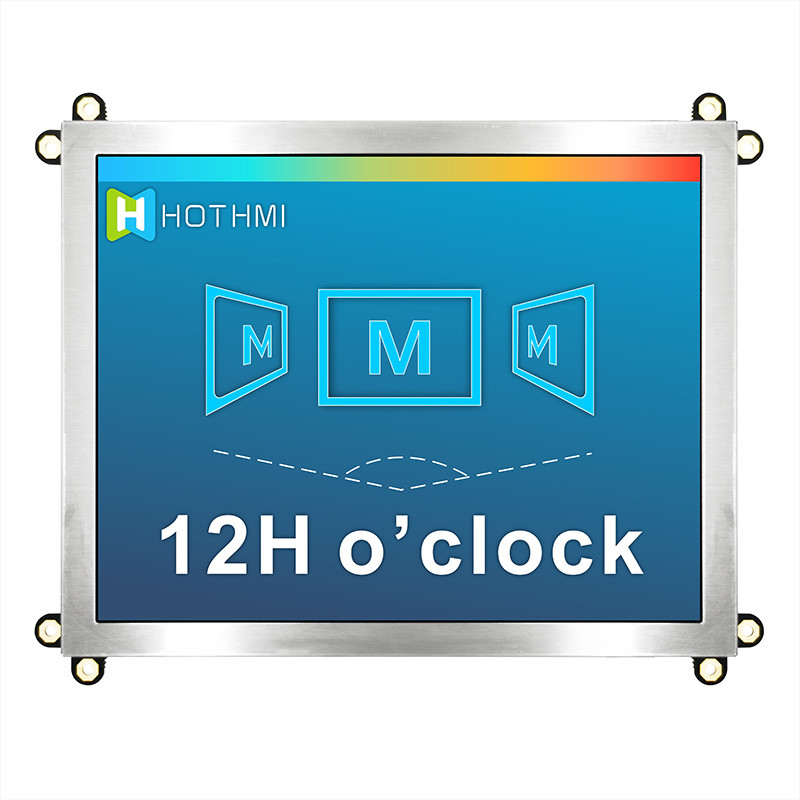

The HTM-H080A2-HI-A03 features a 12H o'clock orientation, providing
optimal viewing angles and enhancing user experience. Whether used
in manufacturing plants, outdoor installations, or any other
industrial setting, this display module delivers clear and precise
information at any time of the day.
Equipped with HI connectivity, integrating this display into your
existing systems is seamless and hassle-free. Its versatile
compatibility allows for easy integration with various devices,
enabling flexible and efficient operation across different
industrial applications.
With its high-resolution display and exceptional sunlight
readability, the HTM-H080A2-HI-A03 offers superior visual
performance, enabling operators to make critical decisions with
confidence. Its compact size and reliable functionality make it a
perfect choice for industrial display applications where space is
limited.
Experience the power of the HTM-H080A2-HI-A03, an 8-inch HI TFT LCD
module designed to meet the rigorous demands of industrial
environments. Upgrade your industrial display systems with this
reliable, sunlight-readable solution, and enhance productivity and
efficiency in your operations.
General Feature
Item | Standard Value | Unit |
Display Size | 8.0 | Inch |
Number of Pixels | 1024x768 | dots |
Active Area | 203x161x23.5 | mm |
Outline Dimension | 163x122.5 | mm |
Viewing Direction | 12H O'clock | - |
Interface | HI | - |
Driver IC | T.B.D | - |
Driver Condition | VCI=9~24V(Typ) | V |
Backlight | White LED/12 PCS/6 PCS serial 2 ways parallel | - |
Touch Panel | Capacitive Touch |
CTP Driver IC | - | - |
Driver Condition | VDD=9~24V | V |
TFT Operation AT | -20 ～ +70 | ℃ |
TFT Storage AT | -30 ～ +80 | ℃ |
Port Description
Power Input Connector Description
1,Polarity: inside positive and outside negative
2,Contact inner diameter: 2mm/contact outer diameter: 6.3mm 3,Rated
load: 24V/2A
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed
operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented
mindful of cleanliness standards. This means glass will be clean of
contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and
distracting cosmetic blemishes. Our standards maintain a clean
scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes
are free of bubbles, foreign contaminants, and meet all UL fire
requirements. PCB materials will always be delivered within
industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in
providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product
consistency from lot to lot. This means orders processed over the
years will continually meet your expectations. We do this by
exacting manufacturing specifications, with attention to detail in
our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction.
Customers can expect tight assembly without worry of loose parts or
missing material. Our products will meet all environmental
expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to
manufacturing tolerances), Newhaven Display maintains color
compliance per internal approved color charts. These charts are
maintained to ensure any minor glass deviations are identified and
corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD
protection. This includes ESD-SAFE packaging within anti-static
bags, wraps, and trays. Customers are reminded to always follow ESD
safety to best protect the devices. |
