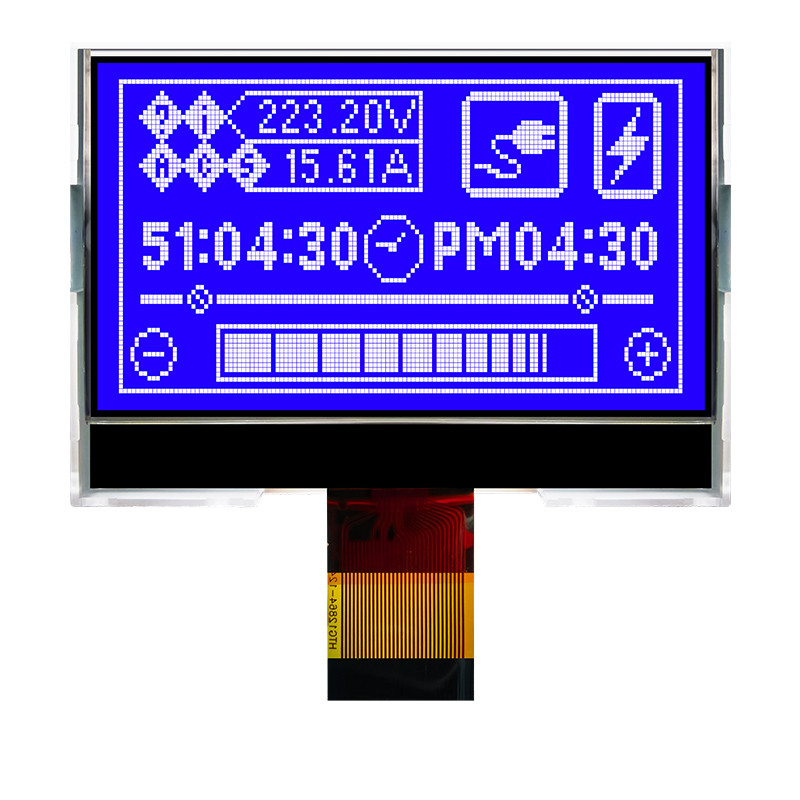

    128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTG12864-124
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight

    128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight

    HTG12864-124 | Monochrome Graphic COG | 128x64 dots | Transflective LCD | Side White Backlight | FSTN (+) Positive Display


    HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG12864-124 display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots128x64dots
    Module dimension71.2x48.1x4.85mm
    View display area66.5x38.0mm
    Dot size0.49x0.45mm
    Dot pitch0.52x0.48mm
    Operating temp-20~70
    Storage temp-30~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
    Viewing direction6H
    Display modeFSTN
    Display typeTRANSMISSIVE / NEGATIVE
    Driver ICST7565R
    BacklightWHITE
    Product applicationinstrumentation

    All Products


    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

    COG LCD Displays

    Available in character and graphic formats, COG (Chip-On-Glass) LCD Displays are designed without a PCB. The LCD driver/controller is bonded directly to the glass of the display. This allows COG displays to be smaller in size, more cost effective and a highly customizable display solution compared to typical LCD modules with a board.

    Search Keyword: lcd 128x64, lcd 128x64, 128x64 lcd, 128 x 64 lcd

    128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight

    LCD Custom Solutions

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

    128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight
    128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight

    Connector Customization

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.


    128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight

    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


    128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight

    PCB Modifications

    Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.


    128x64 COG LCD Graphic Display Module ST7565R With Side White Backlight

    HTG12864-124-31W-36C05-V01.pdf
