    3.5 inch TFT Module | 320x480 MCU TFT Display Module | ILI9488

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTM-H035A31-MCU-A01
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

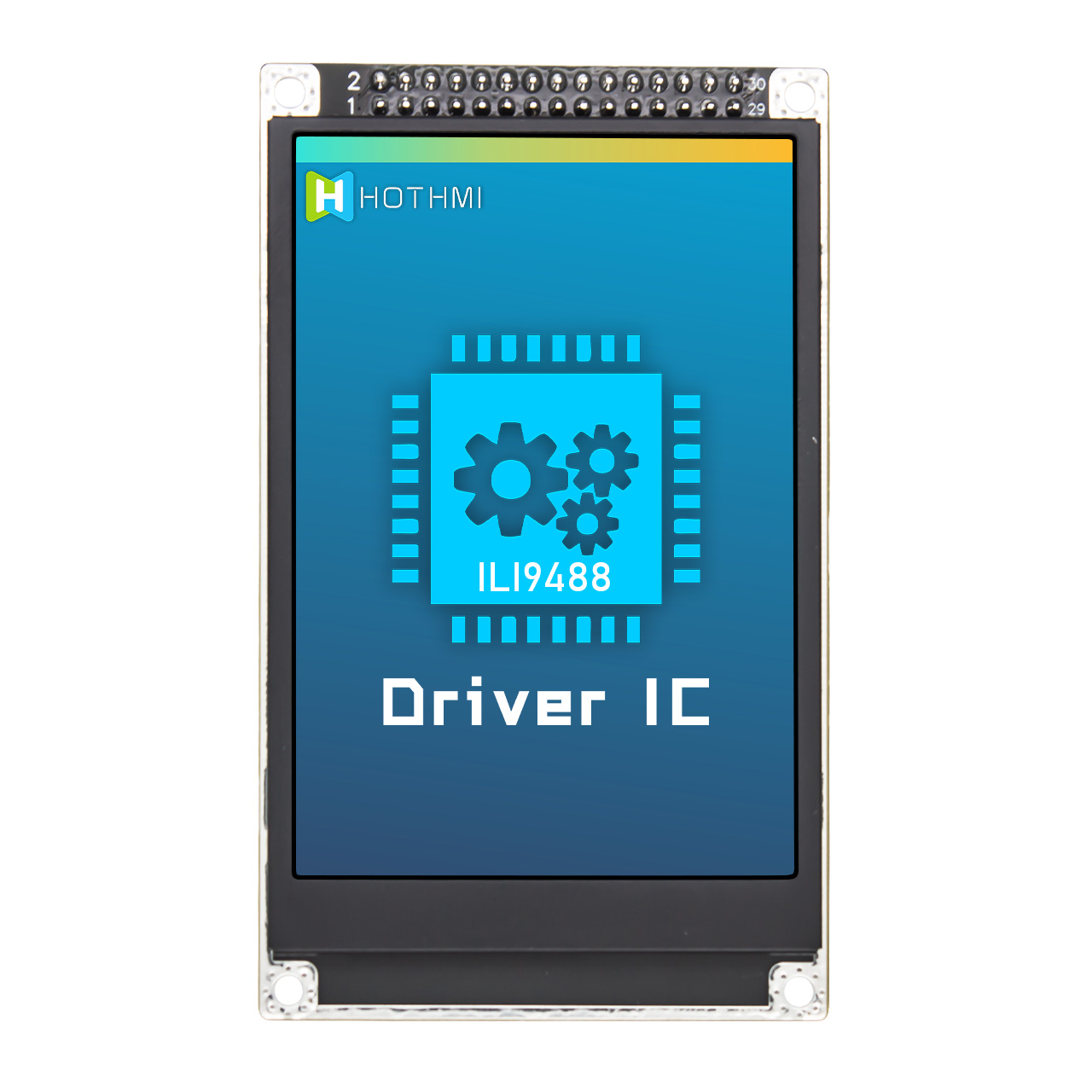

    3.5 inch TFT Module | 320x480 MCU TFT Display Module | ILI9488

    3.5 inch TFT Module | 320x480 MCU TFT Display Module | ILI9488


    Model: HTM-H035A31-MCU-A01

    ▶ Type: 3.5 inch TFT Module

    ▶ Display pixels: 320x480

    ▶ Overall dimensions (mm): 57.25x96.5x6.2

    ▶ Display inches: 3.5"

    ▶ Effective size (mm): 50.2x74.5

    ▶ Application: Microcontroller/Arduino

    ▶ Viewing angle: IPS full viewing angle

    ▶ Brightness: 400cd/M²

    ▶ Special instructions: Anti-static ESD 8KV

    ▶ Working temperature: -30~80℃

    ▶ Power supply voltage: 3.3V

    ▶ Driver chip:ILI9488


    General information


    ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    HTM-H035A31-MCU-A01


    Diagonal size

    3.5”

    Inch

    Resolution

    320x480

    Dot

    Dimensions

    57.25x96.5x6.2

    mm

    Active area (AA)

    50.2x74.5

    mm

    LCD type

    3.5” TFT Module

    mm

    Display viewing angle

    Full View


    Aspect ratio

    2:3


    Backlight type

    LED white


    TFT driver IC

    ILI9488


    Brightness

    400cd/m2

    cd/m2

    Operating temperature

    -30~80℃

    Storage temperature

    -30~80℃


    All Products


    Reliability Testing

    Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.

    Glass Cleanliness

    Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.

    Bezel Appearance

    Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.

    PCB Appearance

    PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.

    Soldering

    Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.

    Consistency

    Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.

    Product Integrity

    Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.

    Glass Color

    While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.

    ESD Protection & Safety

    All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.


    Search keyword: tft 3.5, tft 3.5", 3.5 tft lcd, 3.5" tft lcd, 3.5 inch tft lcd, tft lcd 3.5, 3.5 tft display, 3.5" tft display,3.5 inch tft display, tft display 3.5, tft display 3.5"


    TFT Custom Solutions

    3.5 inch TFT Module | 320x480 MCU TFT Display Module | ILI9488

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.


    3.5 inch TFT Module | 320x480 MCU TFT Display Module | ILI9488


    Touchscreen Add-on

    Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.


    3.5 inch TFT Module | 320x480 MCU TFT Display Module | ILI9488

    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.



    3.5 inch TFT Module | 320x480 MCU TFT Display Module | ILI9488

    Cover Glass

    Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
