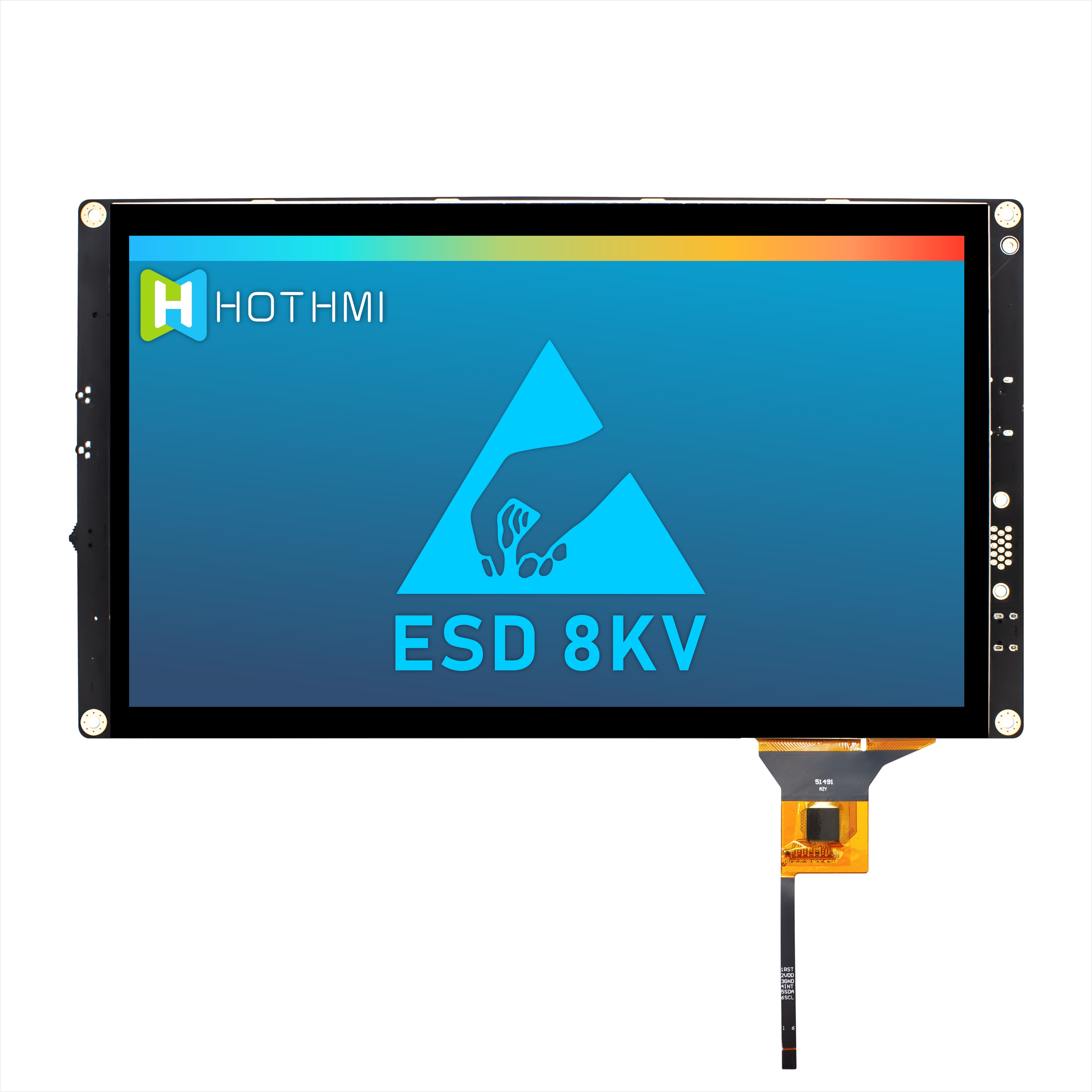

10.1 Inch HI IPS 1024x600 TFT LCD Module Display Capacitive Touch
With Raspberry Pi
HTM-H101A9-HI-A05C | 10.1" IPS LCD Display | 1024x600 Pixels | LCD
Controller Board | Luminance 1000cd/m2 | Interface HI 1.4 | TFT
MODULE | -20°C ~ 70°C | With Controller Board | Raspberry Pi |
Sunlight Readable | Capacitive Touch
Introducing the HTM-H101A9-HI-A05C, a cutting-edge 10.1-inch IPS
LCD display with capacitive touch functionality, designed to
revolutionize your Raspberry Pi experience. With its
high-definition 1024x600 pixel resolution, this display delivers
stunning visuals and precise touch response, enhancing your
interactions with your Raspberry Pi projects.
Equipped with an LCD controller board, this module seamlessly
connects to your Raspberry Pi via the HI 1.4 interface, ensuring
effortless setup and compatibility. Whether you're a beginner or an
experienced Raspberry Pi enthusiast, integrating this display into
your projects is a breeze.
The HTM-H101A9-HI-A05C stands out with its impressive luminance of
1000cd/m2, making it incredibly bright and sunlight readable. Now
you can comfortably use your Raspberry Pi in outdoor environments
without worrying about visibility issues or glare. The display's
exceptional clarity and vibrant colors will bring your projects to
life, even under direct sunlight.
Built to withstand a wide range of temperatures, from -20°C to
70°C, this display module ensures reliability and durability in
various operating conditions. Whether you're working in extreme
heat or cold, this display will continue to deliver exceptional
performance.
With the included controller board, you can start using the
HTM-H101A9-HI-A05C right away. No additional components or complex
configurations are required, allowing you to focus on your
creativity and projects.
Upgrade your Raspberry Pi setup with the HTM-H101A9-HI-A05C
10.1-inch IPS LCD display with capacitive touch. Its stunning
visuals, sunlight readability, precise touch response, and easy
integration with Raspberry Pi make it the perfect choice for
hobbyists, educators, and professionals seeking to elevate their
projects to new heights. Immerse yourself in a world of limitless
possibilities with this extraordinary display.
General information
Item | Specification | Unit |
Outline Dimension | 258x148x6.5 | mm |
Display area | 225.4x127.9 | mm |
Number of Pixel | 1024(H) x 600(V) | pixels |
Pixel pitch | - | mm |
Pixel arrangement | HI+VGA |
|
Display mode | Normally Black |
|
NTSC | 70(Typ.) | % |
Surface treatment | Antiglare, Hard-Coating (3H) |
|
Weight | - | g |
Back-light | Single LED (Side-Light type) |
|
Power Consumption | Logic System (White Pattern) |
| W |
B/L System | - | W |
All Products
Reliability Testing | Customers can expect all production parts to meet or exceed
operational requirements over temperature, humidity, and vibration. |
Glass Cleanliness | Customers can expect glass to be protected by liners and presented
mindful of cleanliness standards. This means glass will be clean of
contaminants, fingerprints, and other foreign material. |
Bezel Appearance | Bezels will be uniformly painted free of foreign materials and
distracting cosmetic blemishes. Our standards maintain a clean
scratch-free surface. |
PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes
are free of bubbles, foreign contaminants, and meet all UL fire
requirements. PCB materials will always be delivered within
industry norms. PCB edges will be cleanly cut and void of burrs. |
Glass Color | While normal variations of glass color may occur (due to
manufacturing tolerances), Newhaven Display maintains color
compliance per internal approved color charts. These charts are
maintained to ensure any minor glass deviations are identified and
corrected as needed. |
ESD Protection & Safety | All devices are designed and handled in consideration of ESD
protection. This includes ESD-SAFE packaging within anti-static
bags, wraps, and trays. Customers are reminded to always follow ESD
safety to best protect the devices. |
