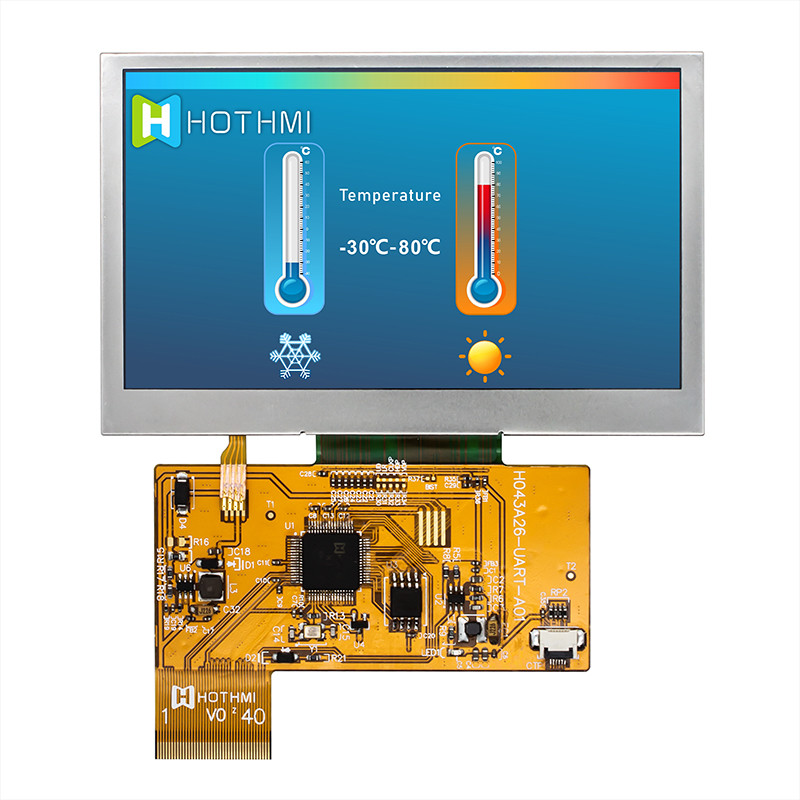

4.3 Inch Smart Serial Screen 800x480 UART TFT LCD Module Display
Panel Sunlight Readable
COF-H043A26-UART-A01 | 4.3" IPS LCD Display | 800x480 Pixels | LCD
Controller Board | Luminance 1000cd/m2 | Interface UART(TTL) |
Sunlight Readable | -30°C ~ 80°C
Introducing the COF-H043A26-UART-A01, a remarkable 4.3-inch Smart
Serial Screen that combines superior display performance with
advanced functionality. Designed with the latest IPS LCD
technology, this display module offers exceptional visual clarity
and vibrant colors, making it perfect for a wide range of
applications.
With its high-resolution 800x480 pixel display, every detail is
rendered with stunning precision, providing a captivating viewing
experience. The LCD controller board ensures smooth operation and
seamless compatibility with various systems, guaranteeing
hassle-free integration into your project.
One of the standout features of this display is its outstanding
luminance of 1000cd/m2. This exceptional brightness enables optimal
readability even under direct sunlight, making it ideal for outdoor
applications where visibility is crucial. Say goodbye to washed-out
screens and hello to clear, legible content no matter the lighting
conditions.
Thanks to its UART (TTL) interface, the COF-H043A26-UART-A01 offers
convenient connectivity and easy communication with your system.
The UART interface simplifies the integration process, allowing for
seamless data transmission and control.
Designed to withstand challenging environments, this display module
boasts a wide operating temperature range of -30°C to 80°C. Whether
you're working in extreme cold or sweltering heat, this screen
maintains its performance, ensuring reliable operation in a variety
of conditions.
In summary, the COF-H043A26-UART-A01 4.3-inch IPS LCD module is a
versatile and high-performance display solution. Its remarkable
visual quality, sunlight readability, and robust design make it an
excellent choice for diverse applications, including industrial
control systems, outdoor signage, automotive displays, and more.
Experience the perfect blend of functionality and reliability with
this exceptional display module.
General information
Item | Specification | Unit |
Outline Dimension | 105.5x67.15x3.05 | mm |
Display area | 97.22x56.03 | mm |
Number of Pixel | 800x480 | pixels |
Pixel pitch | - | mm |
Pixel arrangement | UART(TTL) |
|
Display mode | Normally Black |
|
NTSC | 70(Typ.) | % |
Surface treatment | Antiglare, Hard-Coating (3H) |
|
Weight | - | g |
Back-light | Single LED (Side-Light type) |
|
Power Consumption | Logic System (White Pattern) |
| W |
B/L System | - | W |
All Products
Reliability Testing | Customers can expect all production parts to meet or exceed
operational requirements over temperature, humidity, and vibration. |
Glass Cleanliness | Customers can expect glass to be protected by liners and presented
mindful of cleanliness standards. This means glass will be clean of
contaminants, fingerprints, and other foreign material. |
Bezel Appearance | Bezels will be uniformly painted free of foreign materials and
distracting cosmetic blemishes. Our standards maintain a clean
scratch-free surface. |
PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes
are free of bubbles, foreign contaminants, and meet all UL fire
requirements. PCB materials will always be delivered within
industry norms. PCB edges will be cleanly cut and void of burrs. |
Soldering | Soldering of all leaded and SMT components is consistent in
providing the mechanical security and electrical connectivity. |
ESD Protection & Safety | All devices are designed and handled in consideration of ESD
protection. This includes ESD-SAFE packaging within anti-static
bags, wraps, and trays. Customers are reminded to always follow ESD
safety to best protect the devices. |
