FSTN Graphic Display Module 128x64 Standard COB LCD Module

128X64 Graphic LCD Module | FSTN + Display With White Side Backlight/HTM12864-117

HTM12864-117 | Monochrome Graphic Module | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display | Built-in Negative Voltage

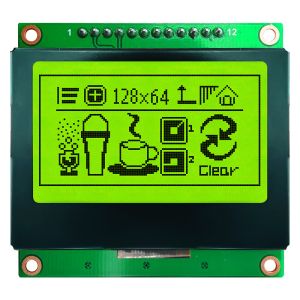

HOTLCD 128x64 graphic Liquid Crystal Display module shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTM12864-117 display includes built-in negative voltage. It has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.

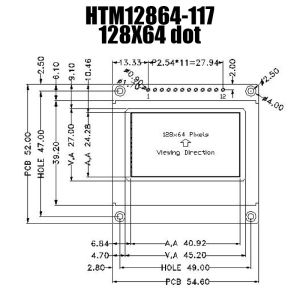

Mechanical Data

Electrical Characteristics

Terminal Function

Absolute Maximum Ratings

3. Electrical Characteristics

3.1 DC Characteristics

Items	Symbol	MIN.	TYP.	MAX.	Unit	Condition
Operating Voltage	VDD	2.4	3.3	3.6	V	-
Input High Voltage	VIH	0.8 x VDD	-	VDD	V	/CS1,/RES,A0,/WR, /RD,D0~D7,C86
Input Low Voltage	VIL	VSS	-	0.2 x VDD	V
Output High Voltage	VOH	0.8 x VDD	-	VDD	V	D0~D7
Output Low Voltage	VOL	VSS	-	0.2 x VDD	V	D0~D7
Operation Current	Iop	90	1000	210	A	VDD=3.3
Sleep Current	Isl	0.1	-	10	A	-

3.2 LED Backlight Circuit

Items	Symbol	MIN.	TYP.	MAX.	Unit	Condition
Forword Voltage	Vf BLA	-	3.3	-	V	A=3. 1V
Forword Current	If BLA	-	32	60	A	-

All Products

Search Keyword: 128x64 lcd, 128 x 64 lcd, lcd 128 x 64

LCD Custom Solutions

Cable Customization

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

---

Connector Customization

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

---

Interface Customization

Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.

---

PCB Modifications

Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.

HTM12864-117-31W-A3S Manual.pdf
