2.4 Inch Bright Sunlight Readable TFT Without Touch Screen/240x320 Pixels/TFT-H024A1QVISTKN40

Product parameters

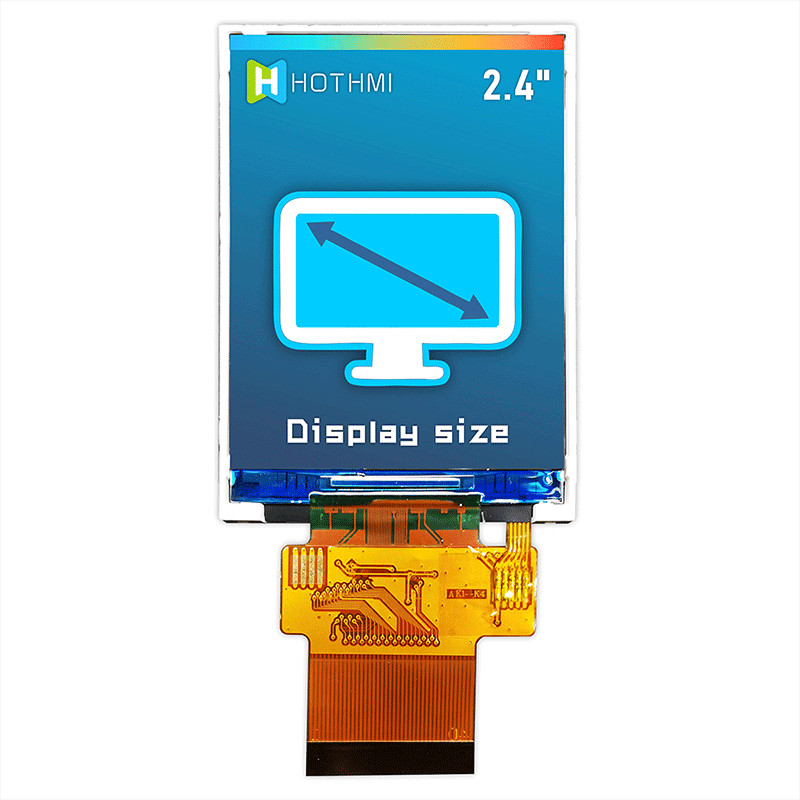

Display Size - 2.4"
Product Application - Outdoor Instrumentation

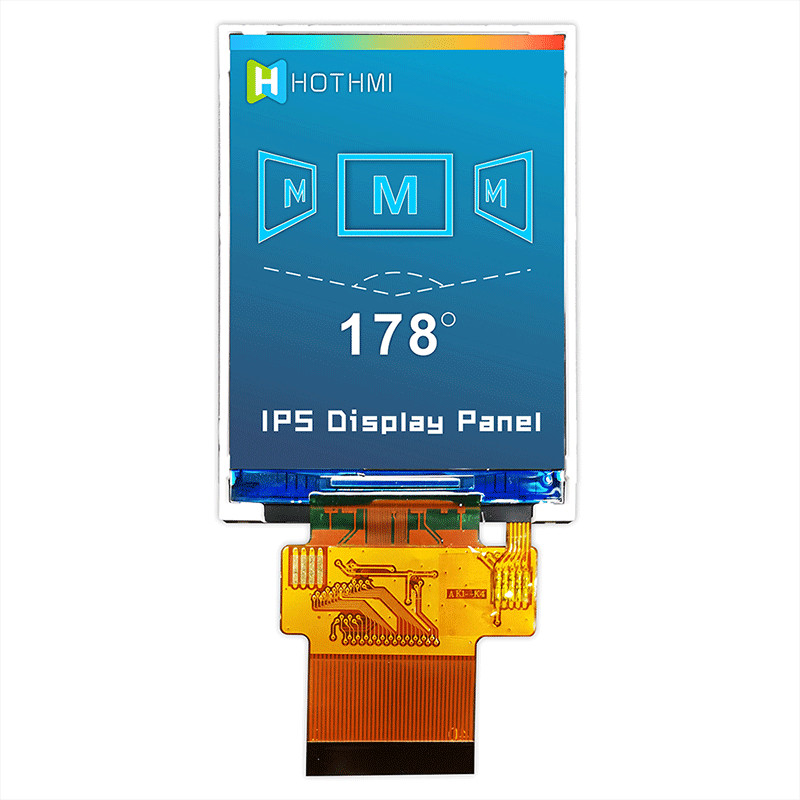

Perspective - Full Perspective
Backlight type or brightness - 1500cd/m2
Connection method PIN number - 40PIN
Interface - MCU

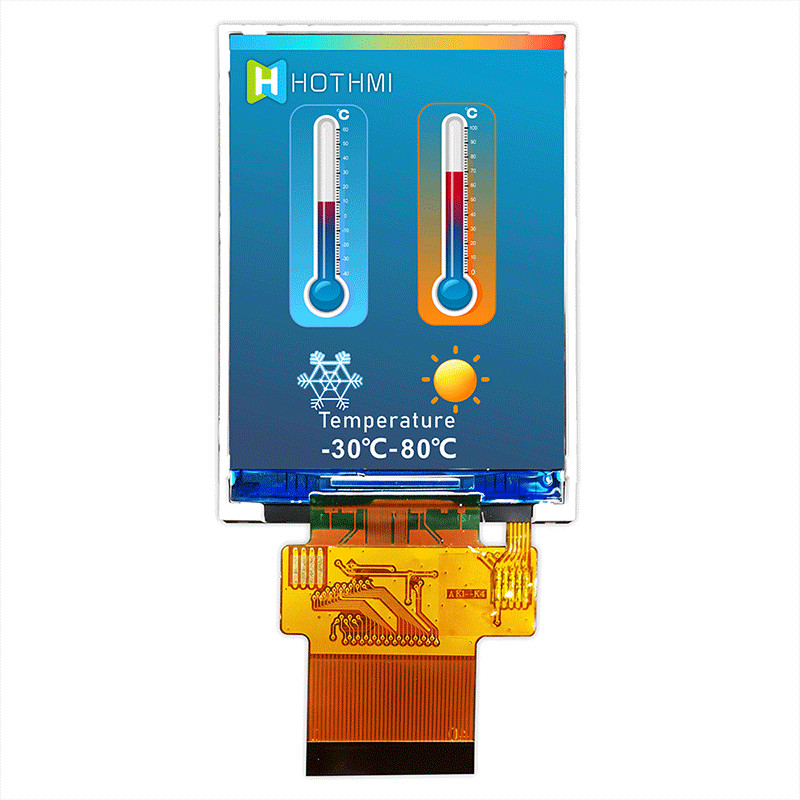

Working temperature - -30~80℃
Supply Voltage - 3.3V
Driver chip model - ST7789V

Product Description
H024A1QVISTKN40 is a 2.4-inch straight screen MCU TFT display module with a resolution of 240x320 pixels. The module built-in ST7789V driver IC supports MCU interface, the analog power supply voltage (Vcc) is 2.4V~3.6V; the standard value is 2.8V. This model module uses an anti-glare surface panel, and the viewing angle is 6 o'clock; the grayscale is inverted for the full viewing angle. This H024A1 straight screen TFT LCD module has a brightness of 1500 nits (typ) and a contrast ratio of 1500:1. Module operating temperature range -30°C~+80°C; storage temperature range -40°C~+80°C. In addition, we also provide capacitive touch panel model TFT-H024A1QVISTKC40 for customers to choose.


TFT-H024A1QVISTKN40.pdf
