    Instruments 240x320 2.8" TFT Display SPI Interface 250cd/m2

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H028A8QVTST2N14
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Instruments 240x320 2.8" TFT Display SPI Interface 250cd/m2

    2.8" TFT SPI 240x320/2.8" SPI Interface TFT Color Display/TFT-H028A8QVTST2N14


    Product parameters

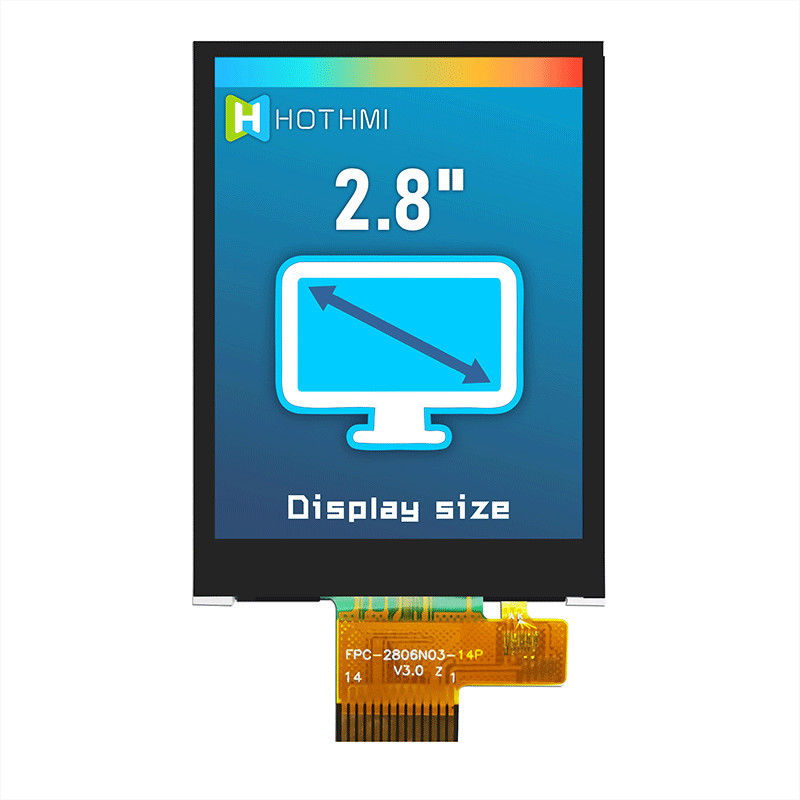

    Display Dimensions (mm) - 2.8"

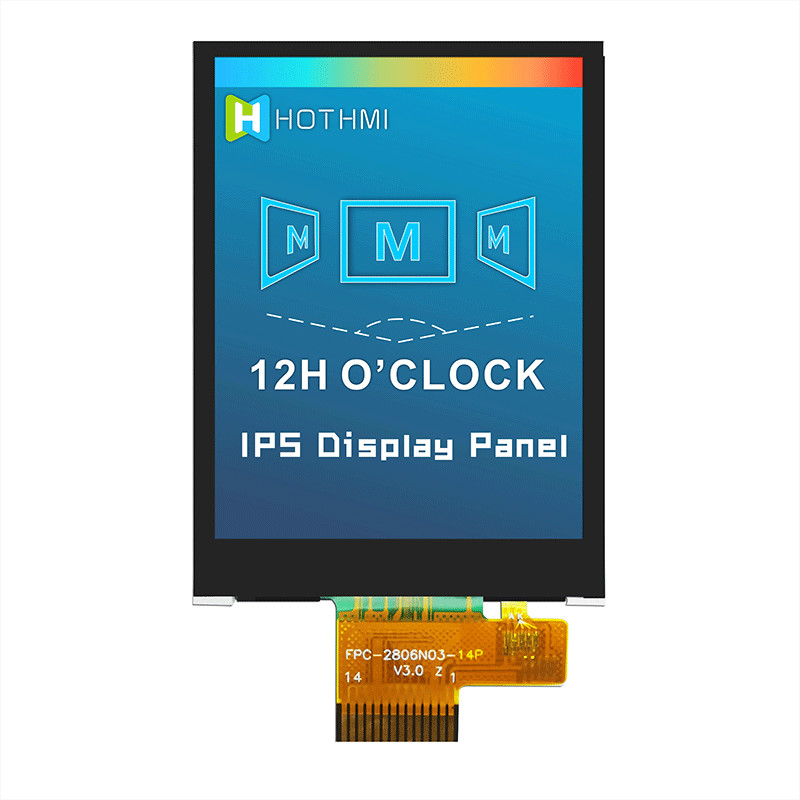

    Viewing Angle - 12H

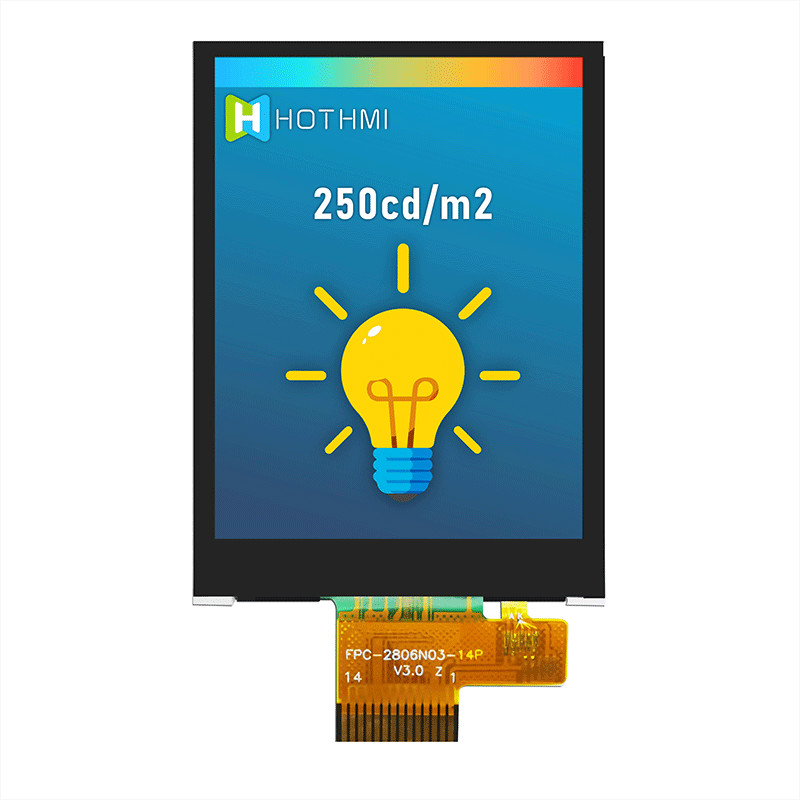

    Backlight brightness - 250cd/m2
    Connection method PIN number - FPC-14PIN

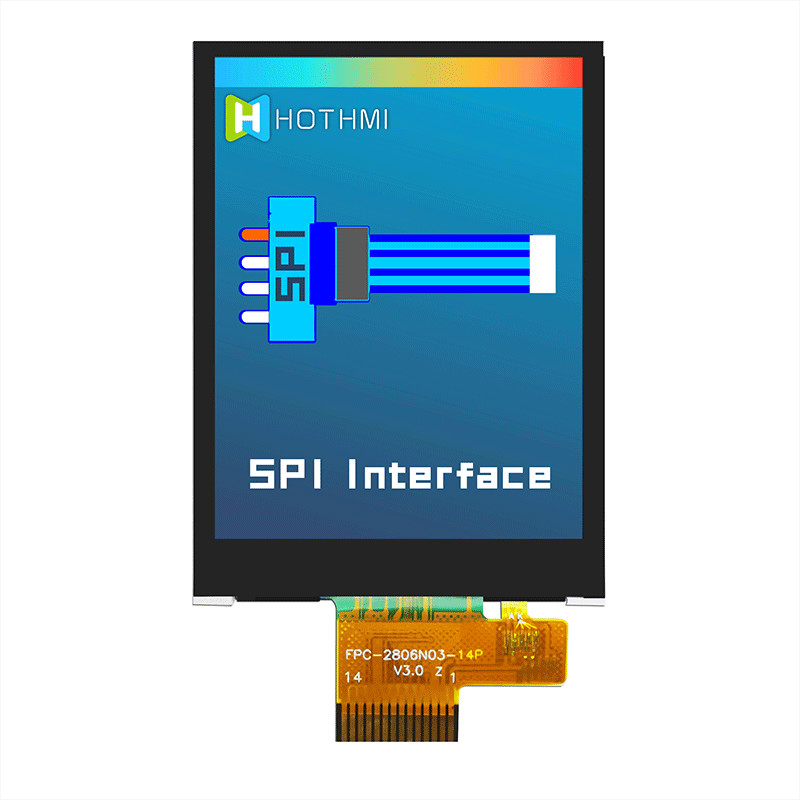

    Interface - SPI 4L
    Operating temperature - (-20~70℃)
    Supply Voltage - 2.8V
    Driver chip model - ST7789V


    General Feature:


    Item

    Standard Value

    Unit

    Display Size

    2.8”-

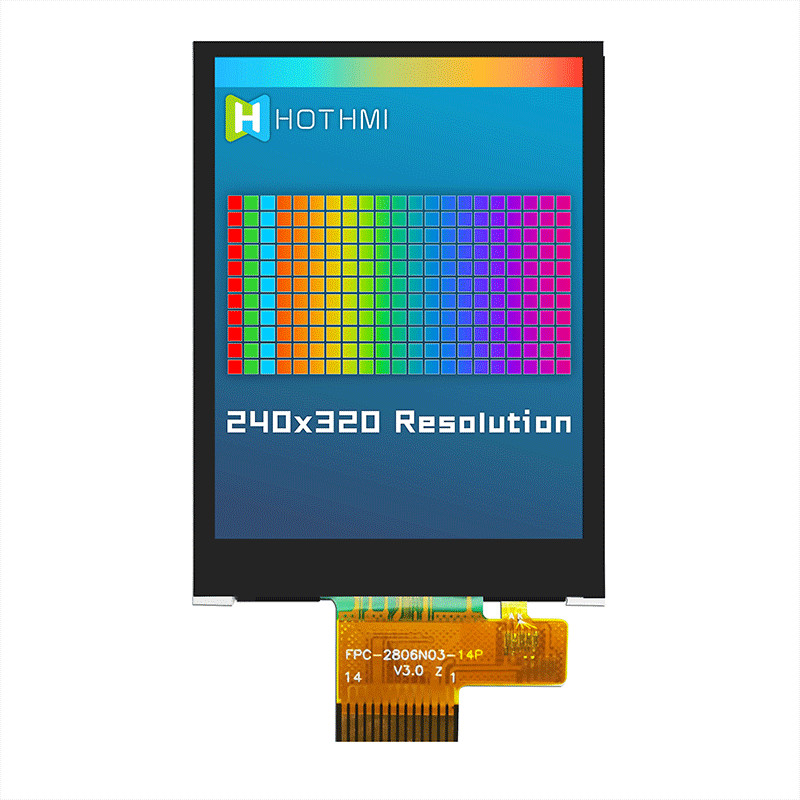

    Number of Pixels

    240(H)x3(RGB)x320(V)-

    Active Area

    43.20H) x 57.60(V)mm

    Outline Dimension

    50.00(H) x 69.20(V) x 2.50(D)mm

    Viewing Direction

    12 O’Clock

    -

    Interface

    SPI 4L-

    Driver IC

    ST7789V-

    Driver Condition

    VCI=2.8V,IOVCC=1.8VV

    Backlight

    White LED-

    Touch Panel

    Whitout Touch Panel

    -

    CTP Driver IC

    - - --

    CTP Driver Condition

    - - -V

    Operation Temperature

    -30 ~ 70

    Storage Temperature

    -40 ~ 85

    Pin Description


    Pin NO.

    Symbol

    Description

    1LED_ALED Anode(+3.2V/80mA)
    2LED_KLED Cathode
    3GNDGround
    4CSBChip select input pin (“Low” enable).
    5RESXLCM Reset Pin.
    6D/CXDisplay data/command selection pin in 4-line serial IF.
    7SCLThis pin is used to be serial interface clock.
    8SDASPI input/output PIN
    9VCIDigital Power(2.65 ~ 3.3 V)
    10GNDGround
    11IOVCCI/O Power (1.65 ~ 3.3 V)
    12NCOpen Pin
    13NCOpen Pin
    14GNDGround
