    Multifunctional TFT LCD Display Module 2.8" For Smart Device TFT-H028B9QVTST3N40

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H028B9QVTST3N40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

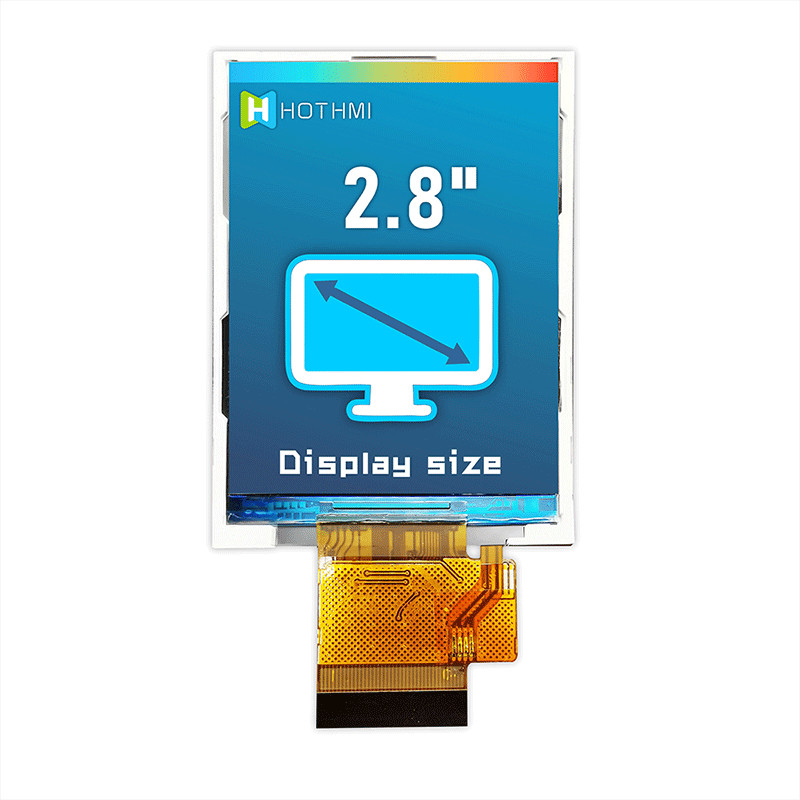

    Multifunctional TFT LCD Display Module 2.8" For Smart Device TFT-H028B9QVTST3N40

    2.8 inch TFT LCD Module/2.8" TFT Display 240 x 320 dots/TFT-H028B9QVTST3N40


    Product parameters


    Display Size - 2.8 inch
    Viewing Angle - 12H O'CLOCK
    Backlight brightness - 350cd/m2
    Connection method PIN number - 40Pin
    Interface - MCU
    Special Instructions - 16Bit
    Working temperature - (-20~70℃)
    Supply Voltage - 2.8V
    Driver chip model - ST7789V


    General Feature:


    Item

    Standard Value

    Unit

    Display Size

    2.8 inch-

    Number of Pixels

    240(H)x3(RGB)x320(V)-

    Active Area

    43.20(H) x 57.60(V)mm

    Outline Dimension

    50.00(H) x 69.20(V) x 2.50(D)mm

    Viewing Direction

    12 O’Clock

    -

    TFT Interface

    MCU 16 Bit-

    TFT Driver IC

    ST7789V-

    TFT Driver Condition

    VCI=2.8V,IOVCC=1.8V(Typ)V

    Backlight

    White LED-

    Touch Panel

    Whitout Touch Panel

    -

    CTP Driver IC

    - - --

    CTP Driver Condition

    VDD=3.3V(Typ)V

    Operation Temperature

    -30 ~ 70

    Storage Temperature

    -40 ~ 85

    Pin Description


    Pin NO.

    Symbol

    Description

    1GNDGround
    2~5NCOpen Pin
    6~21DB[15~0]Data bus
    22RESXTFT Reset Pin.
    23,24NCOpen Pin
    25RDRead enable in 8080 MCU parallel interface.
    26WRWrite enable in MCU parallel interface.
    27RSDisplay data/command selection pin
    28CSChip selection pin
    29IOVCCI/O Power
    30VCIDigital Power
    31GNDGround
    32~35NCOpen Pin
    36LEDALED Anode
    37~40LEDKLED Cathode

    TFT-H028B9QVTST3N40 is a 2.8-inch TFT color LCD screen carefully designed by the HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in ST7789V controller, support MCU interface, 40PIN external FPC can be connected Mainboard (optional connector), single power supply DC 2.8V power supply. The TFT module can be equipped with a touch screen and all materials are RoHS compliant. Widely used in various instruments, smart devices, analytical instruments, handheld instruments, driving recorders, etc.: 8051, PIC, AVR, ARDUINO, ARM, Raspberry Pi, etc.
