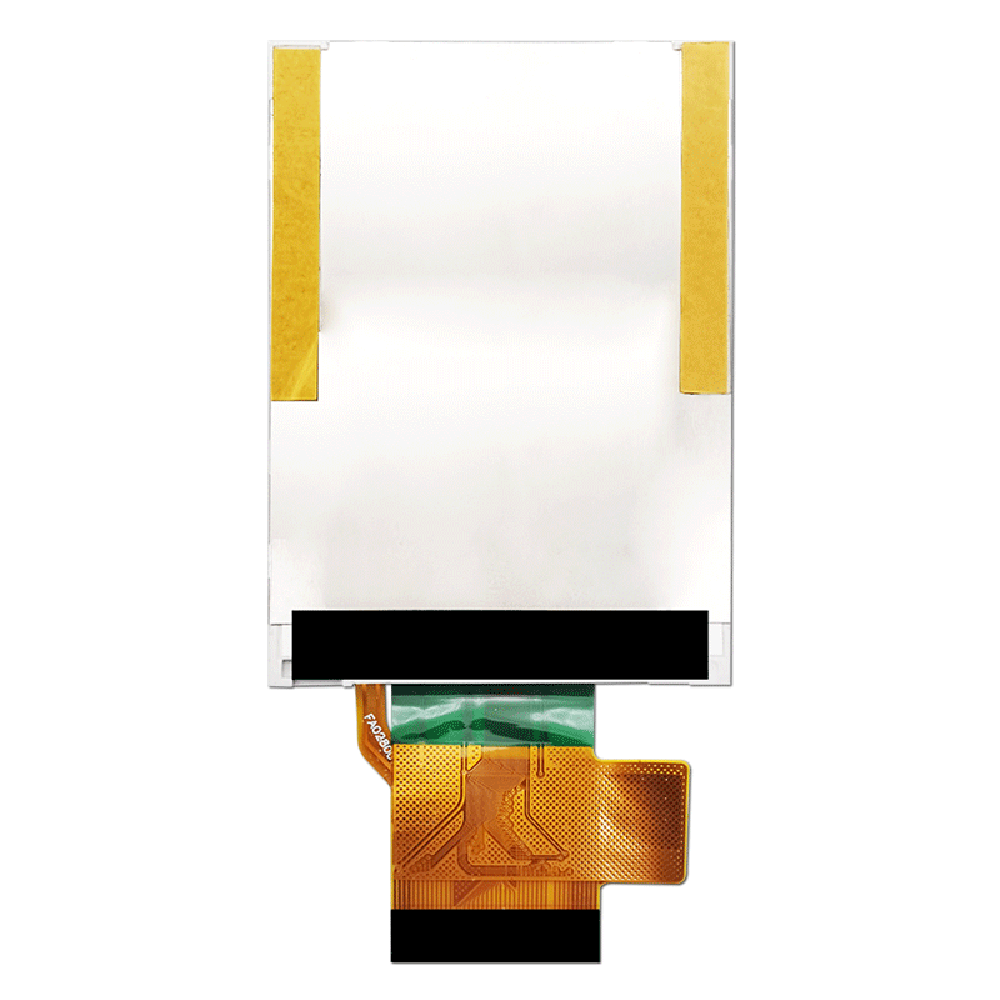

    2.8 Inch TFT LCD Color Liquid Crystal Display Module/240x320 Dot/TFT-H028C2QVTST3N45


    Product parameters


    Display Size - 2.8"
    Product Application - Instrumentation
    Viewing Angle - 12H
    Connection method PIN number - FPC-45PIN
    Interface - SPI, RGB, MCU
    Special Instructions - Can be equipped with CTP
    Operating temperature - (-20~70℃)
    Supply Voltage - 3.3V
    Driver chip model - ST7789V


    General Feature:


    ItemStandard ValueUnit
    Display Size2.8"--
    Number of Pixels240(H)x3(RGB)x320(V)--
    Active Area43.20(H) x57.60(V)mm
    LCM Outline Dimension50.00(H) ×69.20(V)× 2.45(D)mm
    Viewing Direction12H O'clock-
    LCM InterfaceSPI, RGB, MCU are fully compatible, free to choose-
    LCM Driver ICST7789V-
    Display Colors262KColor
    LCM Driver VoltageVCI=2.8V (Max 3.3V)V
    BacklightWhite LED-
    Touch PanelWithout Touch Panel-
    CTP Driver IC- - --
    CTP Driver VoltageVDD=2.8V (Max 3.6V)V
    CTP I/O Digital VoltageIOVDD=2.8V (Max 3.6V)V
    Operation Temperature-20~70
    Storage Temperature-30~80

    Pin Description


    Pin NO.SymbolDescription
    1VCIAnalog Power(2.65 ~ 3.3 V)
    2GNDGround
    3LED_ALED Anode(+3.2V/60mA)
    4LED_KLED Cathode
    5-8IM0-IM3The MCU interface mode select
    9TETearing effect signal is used to synchronize MCU to frame memory writing.If not used, please let this pin open.
    10VSDVertical synchronizing input signal for RGB interface. If not used, please fix this pin at GND.
    11HSDHorizontal synchronizing input signal for RGB interface. If not used, please fix this pin at GND.
    12PCLK

    Dot clock signal for RGB interface.

    If not used, please fix this pin at GND.

    13DEN

    Data enable signal for RGB interface.

    If not used, please fix this pin at GND.

    14-31DB17-DB0Data Bus.If not used, please fix this pin at GND.
    32RS/SPI_CLK

    ♦Display data/command selection pin in parallel IF.

    ♦This pin is used to be serial interface clock.

    33RD

    Read enable in 8080 MCU parallel IF.

    If not used, please fix this pin at GND.


    34


    WR/SPI_D/C

    ♦Write enable in MCU parallel interface

    ♦Display data/command selection pin in 4-line serial IF.

    ♦Second Data lane in 2 data lane serial IF.

    35NCNo Connect
    36CS/SPI_CSChip select input pin (“Low” enable).
    37SPI_SDISPI input/output PIN or input, definition by IM3. If not used, please fix this pin at GND.
    38SPI_SDOSPI interface output pin.If not used, let this pin open.
    39RESETLCM Reset Pin.
    40CTP_VCCIf not used, please let this pin open.
    41GNDGround
    42CTP-SCLIf not used, please let this pin open.
    43CTP-SDAIf not used, please let this pin open.
    44CTP-INTIf not used, please let this pin open.
    45CTP-RESIf not used, please let this pin open.
