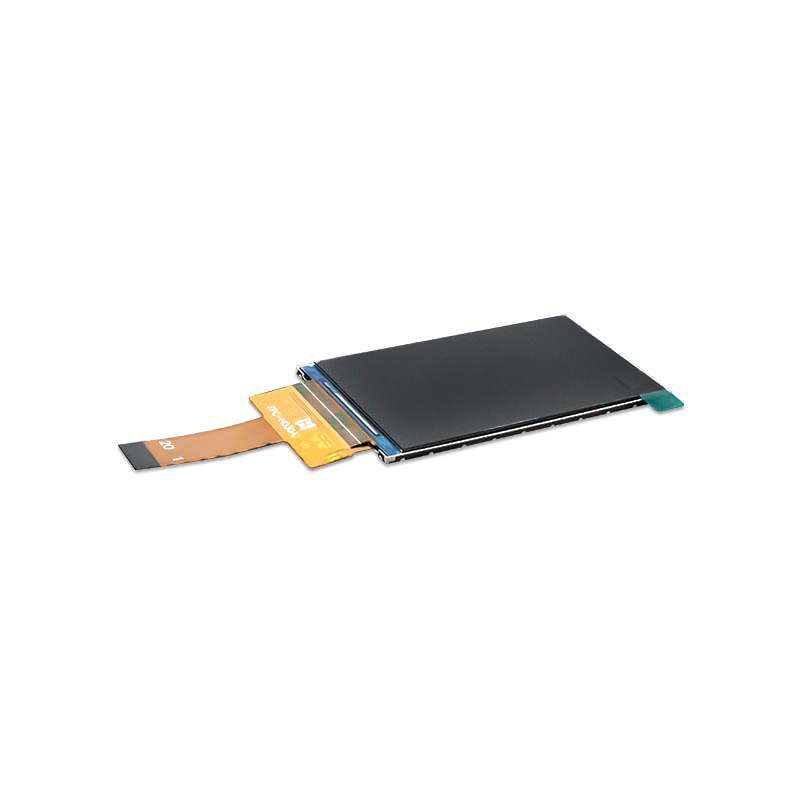

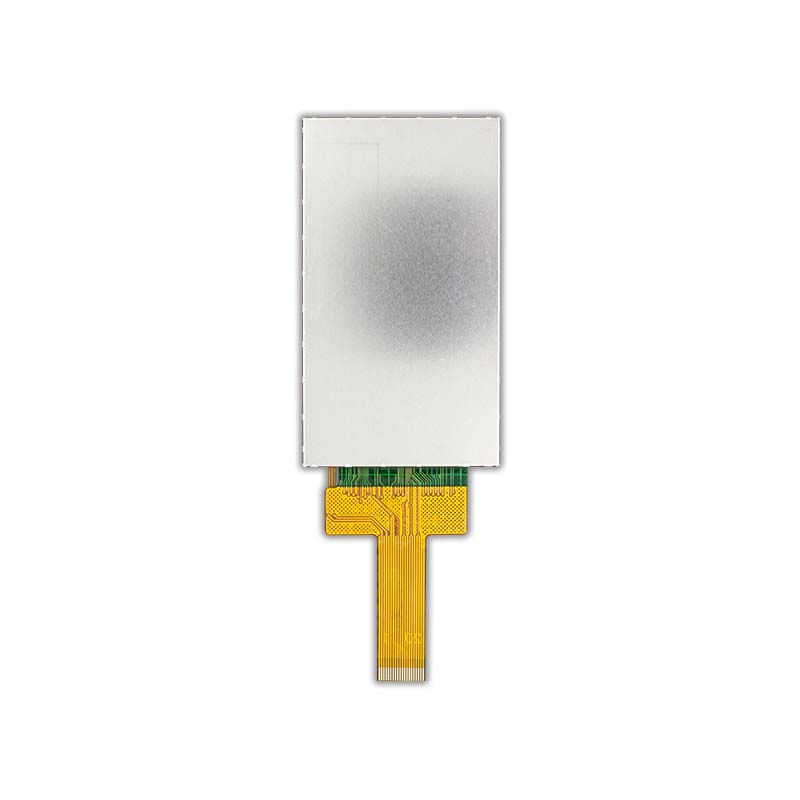

3 inch full viewing angle TFT color display/480x854 Pixels/TFT-H030A2FWIST3N20

Product parameters

Display Size - 3.0"
Perspective - Full Perspective
Backlight type or brightness - 250cd/m2
Connection method PIN number - 20Pin
Interface method - MIPI
Operating temperature - (-20~70℃)
Supply Voltage - 3.3V
Driver chip model - ST7701S

General Feature:

Pin Description

Product Description

The TFT-H030A2FWIST2N20 is a 3.0-inch full-color TFT LCD module with a resolution of 480x854 pixels and an aspect ratio of 1:1.75. The TFT module adopts ST7701S driver IC and supports MIPI interface. The TFT module with IPS panel has the advantage of wide viewing angle (left 80 degrees/right 80 degrees/up 80 degrees/down 80 degrees), a typical contrast ratio of 800:1, and a module brightness of up to 200 nits (typical). The operating temperature range of the module is -30℃~+85℃, and the storage temperature range is -30℃~+85℃.

TFT-H030A2FWIST2N20 is a 3.0-inch high-definition TFT display screen launched by HOTLCD in the third quarter of 2021, with a resolution of up to 480*854, which is also the highest resolution of 3-inch TFT at present. It is very suitable for some high-end smart products such as sports DV cameras.

TFT-H030A2FWIST2N20.pdf
