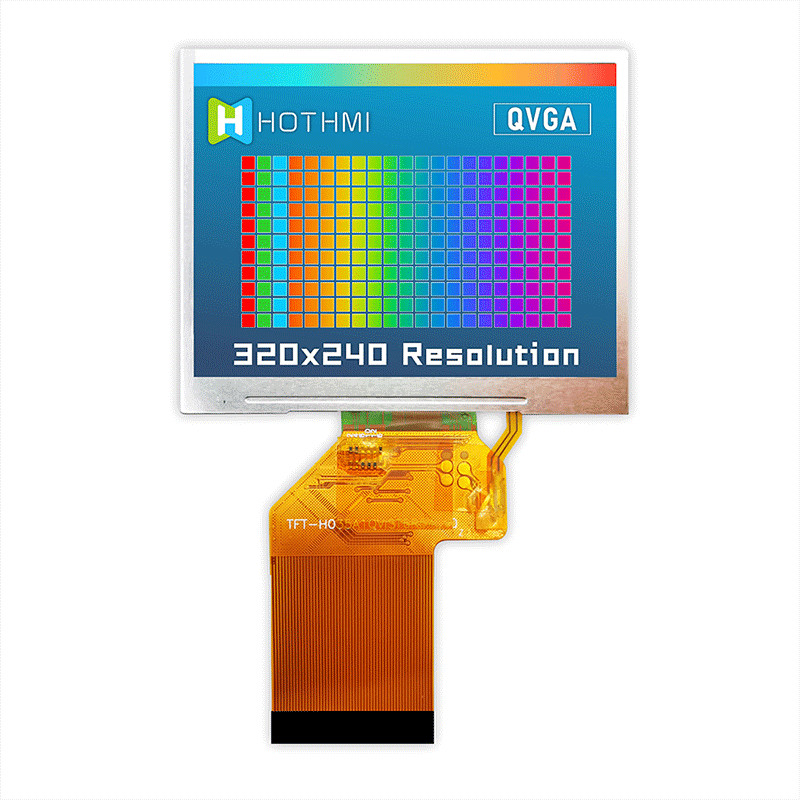

    Practical 24 BIT SPI Touch Screen , 3.5 Inch 320x240 RGB TFT Display TFT-H035A1QVIST6N54

    3.5 Inch Sunlight Readable SPI+RGB TFT Display/320x240 Pixels/TFT-H035A1QVIST6N54


    Product parameters


    Display Dimensions (mm) - 3.5"
    Perspective - Full Perspective
    Backlight brightness - 600cd/m2/
    900cd/m2(
    Optional)
    Connection method PIN number - FPC-54PIN
    Interface - RGB+SPI
    Special Instructions - TTL8/24-BIT
    Working temperature - (-30~85℃)
    Supply Voltage - 3.3v
    Driver IC Model - ST7272A


    General Feature:


    ItemStandard ValueUnit
    Display Size3.5”--
    Number of Pixels320(H)x3(RGB)*240(V)--
    Active Area70.08(H) *52.56(V)mm
    LCM Outline Dimension76.84(H) ×63.84× 3.40(V)mm
    Viewing DirectionFull O’Clock-
    LCM Interface8/24-bit RGB with 3-wire SPI-
    LCM Driver ICST7272A-
    LCM Driver VoltageVCI=2.8VV
    BacklightWhite LED-
    Touch PanelWithout Touch Panel-
    CTP Driver IC- - --
    CTP Driver Voltage- - -V
    CTP I/O Digital Voltage- - -V
    Operation Temperature-30~85
    Storage Temperature-40~85

    Pin Description


    Pin NO.SymbolDescription
    1,2LED_KLED Cathode
    3,4LED_ALED Anode
    5RTP_YUResistive TP function pin.If not used,let this pin open.
    6RTP_XRResistive TP function pin.If not used,let this pin open.
    7NCNo Connect
    8RESXLCM Reset Pin.

    9


    SPI_CS

    ♦ Chip select input pin (“Low” enable).

    ♦ If not used, please fix this pin at VCI.


    10


    SPI_SCL

    ♦ In SPI mode, this pin is used as SCL.

    ♦ If not used, please let this pin open.


    11


    SPI_SDA

    ♦ SPI interface input/output pin.

    ♦ If not used, please let this pin open.

    12-19DB0-DB7Blue data bus.If not used, please fix this pin at GND.
    20-27DG0-DG7Green data bus.DG[7:0] are used in 8-bit RGB interface.
    28-35DR0-DR7Red data bus.If not used, please fix this pin at GND.
    36HSDHorizontal sync signal, default is negative polarity.
    37VSDVertical synchronizing input signal for RGB interface.
    38PCLKPixel clock input pin.
    39,40NCNo Connect
    41,42VCIAnalog Power
    43RTP_YDResistive TP function pin.If not used,let this pin open.
    44RTP_XLResistive TP function pin.If not used,let this pin open.
    45-51NCNo Connect
    52DENData input enable. Display access is enabled when DE is “H”.
    53,54GNDGround
