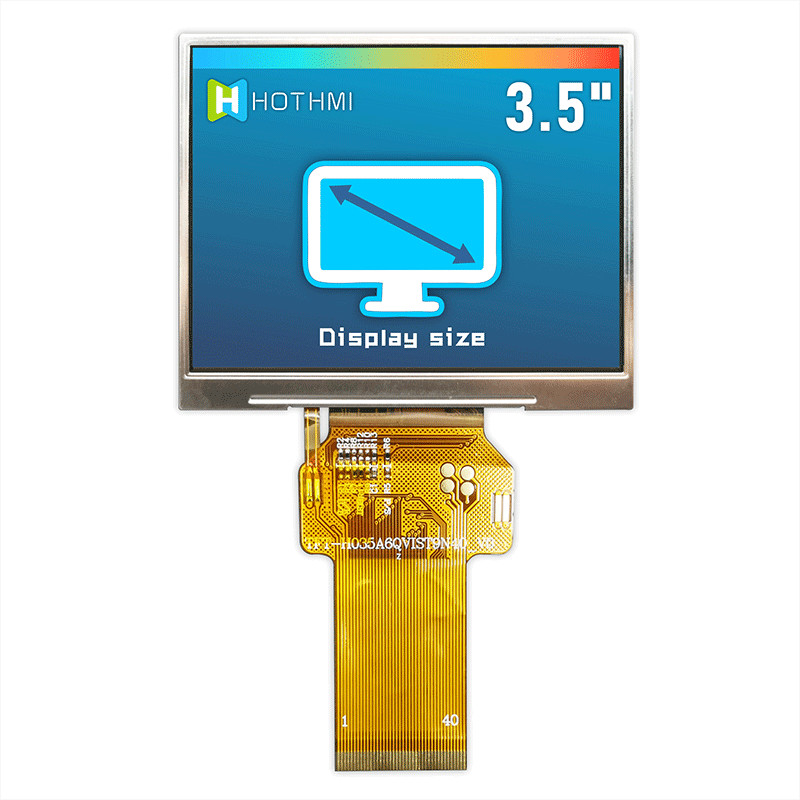

    Sunlight Readable TFT LCD Display Modules 3.5 Inch RGB Interface TFT-H035A6QVIST9N40

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H035A6QVIST9N40
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Sunlight Readable TFT LCD Display Modules 3.5 Inch RGB Interface TFT-H035A6QVIST9N40

    3.5 Inch TFT LCD Modules/320 X 240 Dots/Sunlight Readable/TFT-H035A6QVIST9N40


    Product parameters


    Product Application - Instrumentation
    Perspective - Full Perspective
    Backlight brightness - 900cd/m2
    Connection method PIN number - FPC-40PIN
    Interface - RGB
    Special Instructions - 8/24-bit TTL
    Working temperature - 20~70℃
    Supply Voltage - 3.3V
    Driver IC Model - ST7272A


    General Feature:


    Item

    Standard Value

    Unit

    Display Size3.5Inch
    Number of Pixels320(H)*3(RGB)* 240(V)dots
    Active Area70.08(H)* 52.66(V)mm
    Outline Dimension76.84(H) * 63.84(V) * 3.35(D) <TFT>mm
    Viewing DirectionFULL O'clock-
    TFT InterfaceParallel 24-bit RGB interface (Default) Serial 8-bit RGB interface-
    TFT Driver ICST7272-

    TFT Driver Condition

    VCI=3.3V(Typ)V
    BacklightWhite LED/6 PCS/6 PCS serial-
    Touch PanelWithout TP With RTP With CTP-
    CTP Driver IC- - --
    CTP Driver ConditionVDD=3.3V(Typ)V
    Operation Temperature-30 ~ 80

    Storage Temperature-40 ~ 85


    TFT Pin Description


    Pin NO.SymbolDescription
    1LEDKLED Cathode
    2LEDALED Anode
    3GNDGround
    4VCIDigital Power
    5~12DR0~7Red data bus.If not used, please fix this pin at GND.
    13~20DG0~7Green data bus.DG[7:0] are used in 8-bit RGB interface.
    21~28DB0~7Blue data bus.If not used, please fix this pin at GND.
    29GNDGround
    30PCLKPixel clock input pin, default is negative polarity.

    31


    DISP

    Display mode sets DISP=GND:Standby mode; DISP=VCI:Normal display mode
    32HSDHorizontal sync signal, default is negative polarity.
    33VSDVertical sync signal, default is negative polarity.
    34DENData input enable. Display access is enabled when DE is “H”.
    35NCNot Connect
    36GNDGround
    37RTP_XRRTP function pin.If not used, let this pin open.
    38RTP_YDRTP function pin.If not used, let this pin open.
    39RTP_XLRTP function pin.If not used, let this pin open.
    40RTP_YURTP function pin.If not used, let this pin open.
