1.77 Inch Display TFT LCD Module ST7735 128x160 Pixels Lcd Display Manufacturers

Product parameters

Product Type - TFT Portrait

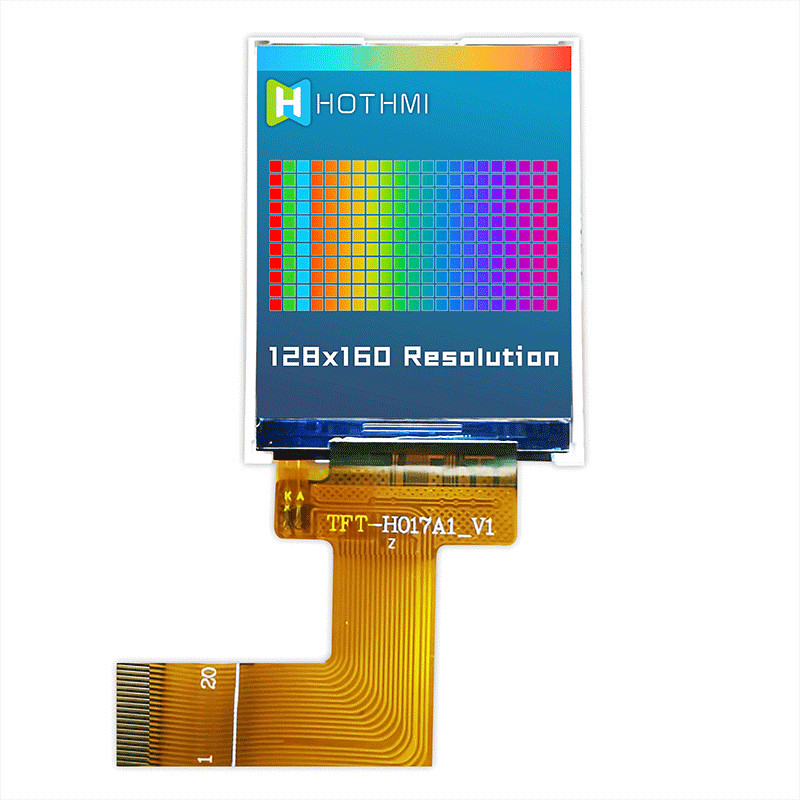

Display Content - 128x160

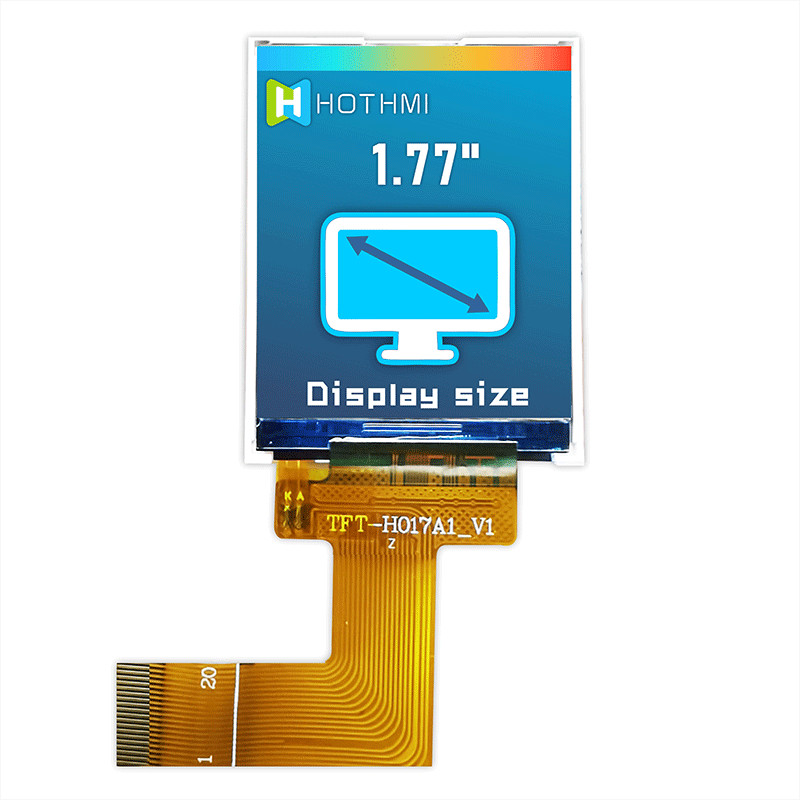

Display Size - 1.77"
Connection method PIN number - FPC-20PIN
Interface - MCU
Special Instructions - MCU/8BIT
Working temperature - -20~70℃
Supply Voltage - 3.3v
Driver chip model - ST7735S

DESCRIPTION

TFT-H017B1CFTST2N20 is a full color 128x160 TFT-LCD display module, diagonal size 1.77 inch. This module is built in with ST7735S IC; it supports MCU 8/16-bit parallel interface. This model is having module dimension of 34.0 x 43.7 mm and Active area size of 28.032x35.040 mm, it's supply voltage range from for analog is 2.8V.

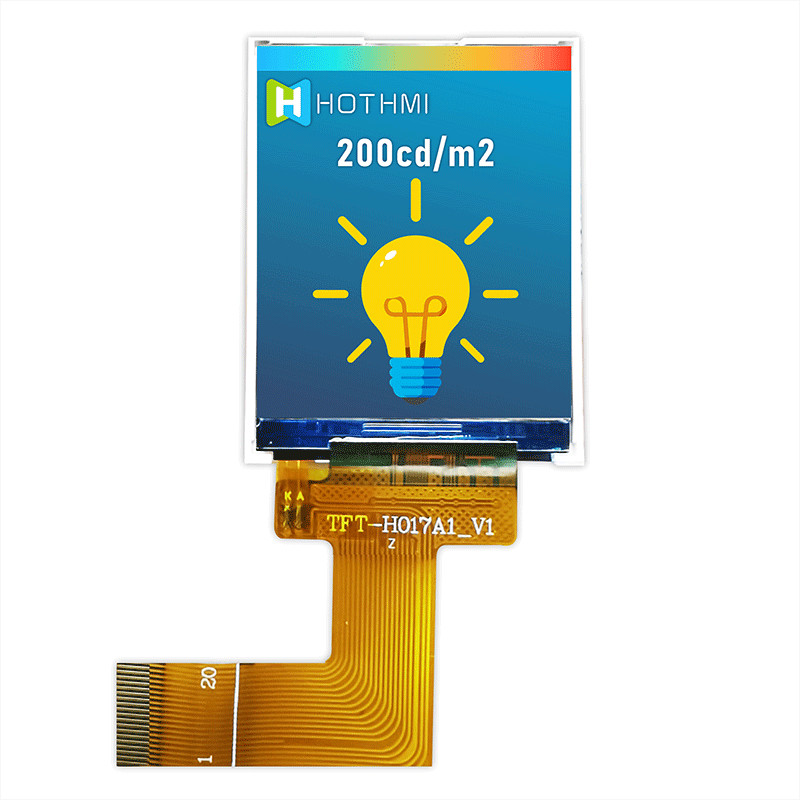

TFT-H017B1CFTST2N20 is a portrait mode LCD module, if you would like to use it as landscape mode, please contact with us for more technical support. This 1.77" TFT LCD display with ST7735 IC is featured with brightness up to 200 cd/m2(typical value), it can be operating at temperatures from -20℃ to 70℃; its storage temperatures range from -30℃ to 80℃.

General Feature:

Search keyword: tft 1.77, tft 1.77", 1.77 tft lcd, 1.77" tft lcd, 1.77 inch tft lcd, tft lcd 1.77, 1.77 tft display, 1.77" tft display, 1.77 inch tft display, tft display 1.77, tft display 1.77"

TFT-H017B1CFTST2N20.pdf
