2.4 inch Sunlight Readable LCD TFT without Touchscreen/240x320 Pixels/TFT-H02401QVIST8N40

Product parameters

Product Type - TFT
Display Size - 2.4"
Perspective - Full Perspective
Backlight type or brightness - 800cd/m2
Connection method PIN number - FPC-41PIN
Interface - MCU/SPI
Special Instructions - MCU 8/9/16/18, SPI 3L/4L

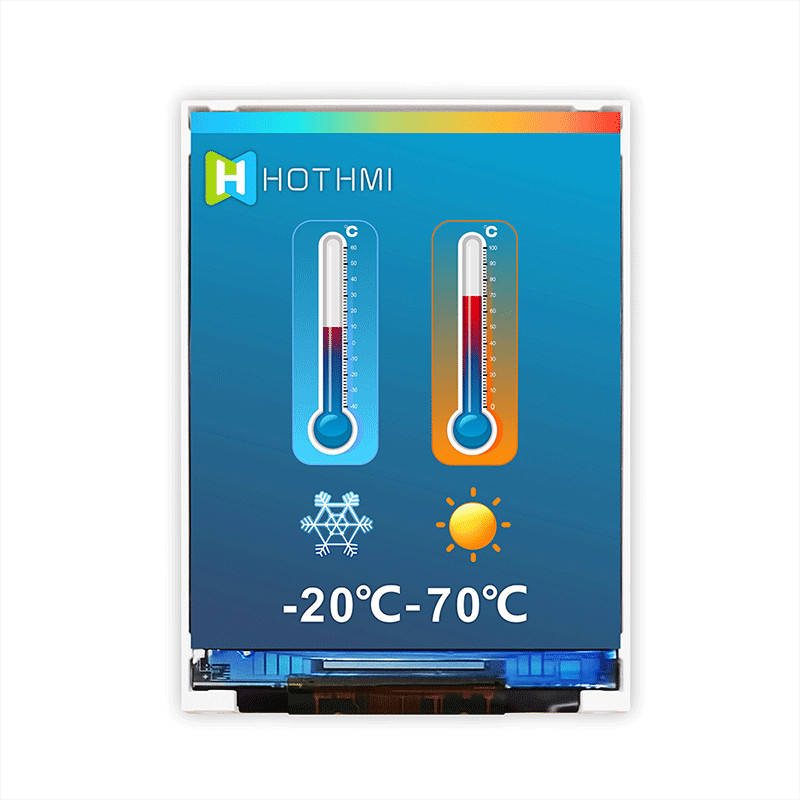

Working temperature - (-20~70℃)
Supply Voltage - 2.8V
Driver chip model - ST7789V

General Feature:

Pin Description

TFT-H024B11QVIST8N41 is a 2.4-inch TFT color LCD screen carefully designed by Xinhongtai HOTLCD R&D team, 240*320 resolution, high image quality, wide viewing angle, 65K/262K true color, built-in ST7789V controller, support MCU 8/9/16/18 interface and 3-wire SPI, 4-wire SPI serial interface, no need for peripheral circuits, 41PIN plug-in FPC can be connected to the main board (optional connector), single power supply DC2.8V power supply. This TFT module can be equipped with a touch screen, and all materials comply with the RoHS standard of environmental protection requirements. It is widely used in various instruments, smart devices, analytical instruments, hand-held instruments, driving recorders, etc. : 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi, etc.

TFT-H024B11QVIST8N41.pdf
