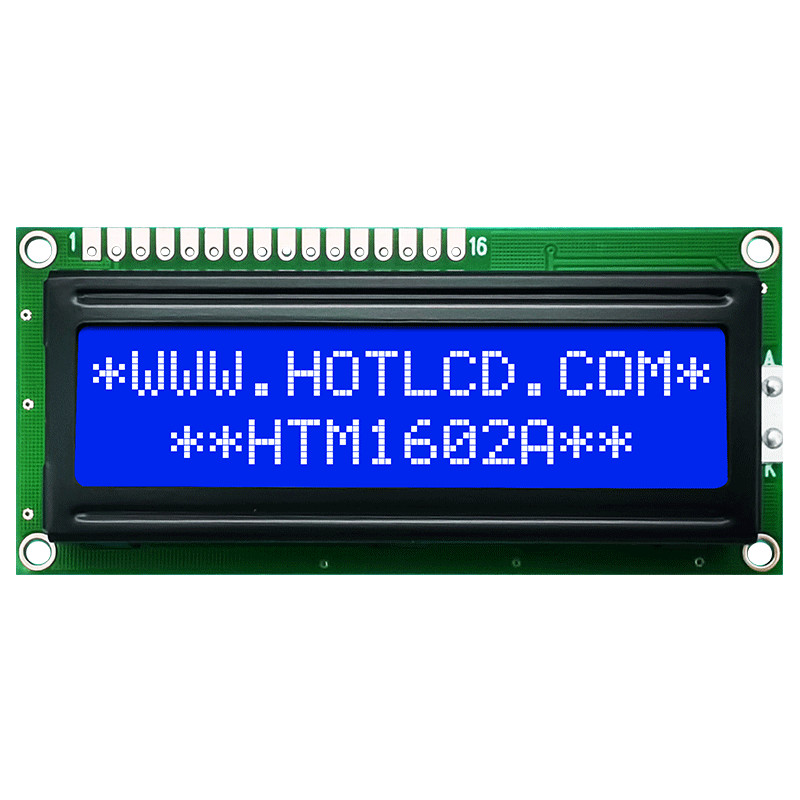

    16x2 16PIN Character LCD Module Medium STN Yellow Green HTM1602A

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTM1602A
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    16x2 16PIN Character LCD Module Medium STN Yellow Green HTM1602A

    16x2 Character Medium Lcd/STN + Yellow/Green/HTM1602A


    Quick detail


    Product Type - Standard COB Character LCM
    Display Content - Character 16x2
    Dimensions (mm) - 80.0x36.0x13.1
    Viewport window size (mm) - 64.5x15.8
    Display size (mm) - 55.8x10.64
    Dot Spacing mm - 0.62x0.64
    Product Application - Industrial Control
    Viewing Angle - 6H
    Backlight Type or Brightness - Yellow Green
    Connection method PIN number - 16PIN
    Interface - MCU/8bit
    Operating temperature - (-20~70℃)
    Supply Voltage - 5.0v


    Terminal Function


    Pin NoPin NameFunction
    1VSS-Power Supply- (0V)
    2VDD+(5.0V)Positive Power Supply
    3V0-LCD Contrast Reference Supply

    4


    RS

    Select Register

    0:Instruction register ,(for write) busy flag address Counter(for read)

    1:Data register (for write and read)


    5


    R/W-

    Select read or write 0: Write/

    1: Read

    6EStarts data read/write
    7DB 0-

    Data Bus Lines

    8DB 1-
    9DB 2-
    10DB 3-
    11DB 4-
    12DB 5-
    13DB 6-
    14DB 7-
    15BLA+Backlight Positive-(5.0V)
    16BLK-(VSS) Backlight Negative
