    128X128 Graphic COG LCD Module SSD1848 STN-Gray Display HTG128128Z

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTG128128Z
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    128X128 Graphic COG LCD Module SSD1848 STN-Gray Display HTG128128Z

    128X128 Graphic COG LCD SSD1848 | STN-Gray Display With White Side Backlight/HTG128128Z

    HTG128128Z | Monochrome Graphic COG | 128x128 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Gray Display

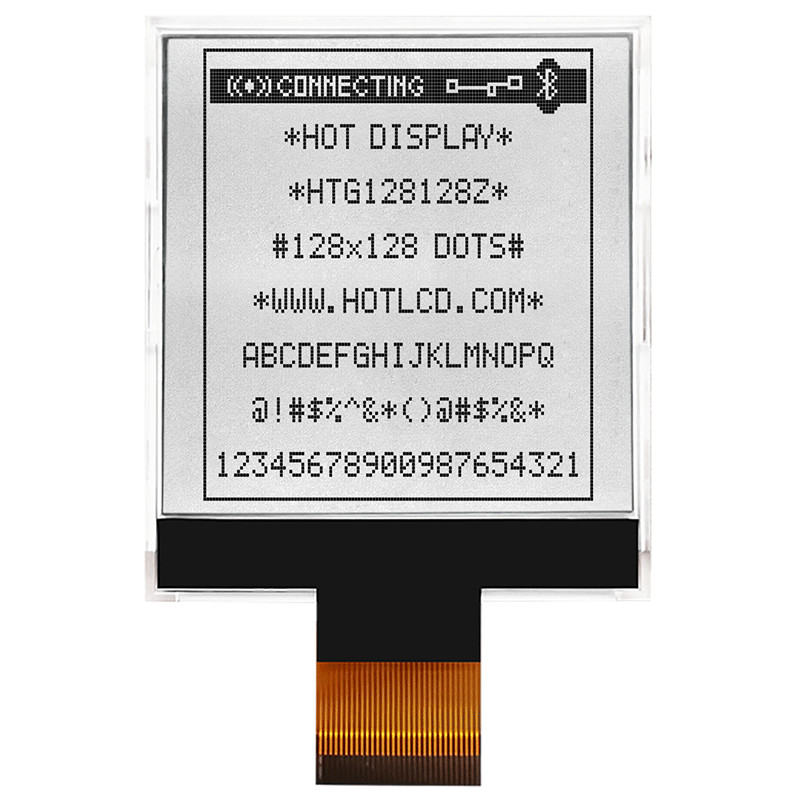

    HOTLCD 128x128 graphic Chip-On-Glass (COG) Liquid Crystal Display shows blue pixels on a gray background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG128128Z display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots132x64dots
    Module dimension55.2x46.5x1.7mm
    View display area46.04x39.64mm
    Dot size0.33x0.28mm
    Dot pitch0.30x0.25mm
    Operating temp-20~70
    Storage temp-30~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
    Viewing direction6H o'clock
    Display modeFSTN
    Display typeTRANSMISSIVE / NEGATIVE
    Driver ICSSD1848
    Backlight

    WHITE

    Product applicationindustrial control

    Interface Description


    Pin No.

    Pin Name

    Function

    1

    PS0

    Interface Control. (H:Parallel; L: Serial)

    2

    PS1

    Interface Mode Control.(H:8080 or 3wire; L:6800 or 4wire)

    3

    /CSB

    Chip selection input

    4

    /REST

    Reset Signal

    5

    RS

    Data/Command control.

    6

    /WR

    Write (W/R ) control signal input.

    7

    /RD

    Read (/RD ) control signal input.

    8~15

    DB0~DB7

    8-bit Date bus

    16

    VDD

    Power supply voltage (3.3v)

    17

    VSS

    Negative power supply(0V)

    18

    VOUT

    Voltage converter input / output pin

    19

    CAP4+

    Capacitor 4 positive connection pin for voltage converter

    20

    CAP4-

    Capacitor 4 negative connection pin for voltage converter

    21

    CAP3+

    Capacitor 3 positive connection pin for voltage converter

    22

    CAP3-

    Capacitor 3 negative connection pin for voltage converter

    23

    CAP2+

    Capacitor 2 positive connection pin for voltage converter

    24

    CAP2-

    Capacitor 2 negative connection pin for voltage converter

    25

    NC


    26

    C1+

    Capacitor 1 positive connection pin for voltage converter

    27

    C1-

    Capacitor 1 negative connection pin for voltage converter

    28

    NC


    29

    NC


    30

    NC


    31

    NC



    Absolute Maximum Ratings


    ItemsSymbolMIN.MAX.UnitCondition

    Supply Voltage

    VDD-0.3+3.3V
    VLCD-0.3+15.0V
    Input VoltageVIN-0.3VDD+0.3V
    Operating TemperatureTOP-0+50
    Storage TemperatureTst-10+60

    All Products


    Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
    Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
    Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
    Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
    ESD Protection & SafetyAll devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

    COG LCD Displays

    Available in character and graphic formats, COG (Chip-On-Glass) LCD Displays are designed without a PCB. The LCD driver/controller is bonded directly to the glass of the display. This allows COG displays to be smaller in size, more cost effective and a highly customizable display solution compared to typical LCD modules with a board.

    Search Keyword: lcd 128x128, lcd 128x128, 128x128 lcd, 128x128 lcd

    128X128 Graphic COG LCD Module SSD1848 STN-Gray Display HTG128128Z128X128 Graphic COG LCD Module SSD1848 STN-Gray Display HTG128128Z128X128 Graphic COG LCD Module SSD1848 STN-Gray Display HTG128128Z

    LCD Custom Solutions

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

    128X128 Graphic COG LCD Module SSD1848 STN-Gray Display HTG128128Z
    128X128 Graphic COG LCD Module SSD1848 STN-Gray Display HTG128128Z

    Connector Customization

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.


    128X128 Graphic COG LCD Module SSD1848 STN-Gray Display HTG128128Z

    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


    128X128 Graphic COG LCD Module SSD1848 STN-Gray Display HTG128128Z

    PCB Modifications

    Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.


    128X128 Graphic COG LCD Module SSD1848 STN-Gray Display HTG128128Z

    HTG128128Z.pdf
