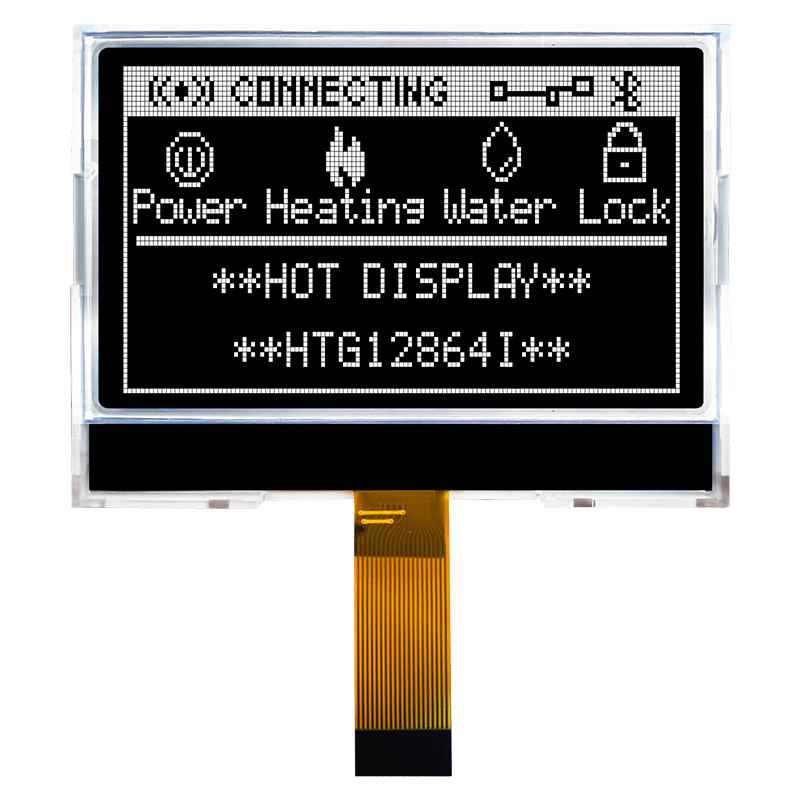

    128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTG12864I-SPI
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I

    128X64 SPI Graphic COG LCD ST7567 | FSTN-Display With White Side Backlight/HTG12864I


    HTG12864I-SPI | Monochrome Graphic COG | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display


    HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG12864I-SPI display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant. This display comes with a built-in ST7567 controller.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots128x64dots
    Module dimension71.3x52.2x5.3mmmm
    View display area65.5x38mmmm
    Dot size0.45x0.49mmmm
    Dot pitch0.47x0.52mmmm
    Operating temp-20~70
    Storage temp-30~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
    Viewing direction6H o'clock
    Display modeFSTN
    Display typeTRANSMISSIVE / NEGATIVE
    Driver ICST7567 IC
    Backlight

    WHITE

    Product applicationindustrial control


    All Products


    Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
    Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.

    COG LCD Displays

    Available in character and graphic formats, COG (Chip-On-Glass) LCD Displays are designed without a PCB. The LCD driver/controller is bonded directly to the glass of the display. This allows COG displays to be smaller in size, more cost effective and a highly customizable display solution compared to typical LCD modules with a board.

    Search Keyword: lcd 128x64, lcd 128 x 64, 128x64 lcd, 128 x 64 lcd

    128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I

    LCD Custom Solutions

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

    128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I
    128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I

    Connector Customization

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.


    128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I

    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


    128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I

    PCB Modifications

    Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.


    128X64 SPI Chip On Glass LCD Display With White Side Backlight HTG12864I

    HTG12864I-31W-10C10-SPI.pdf
