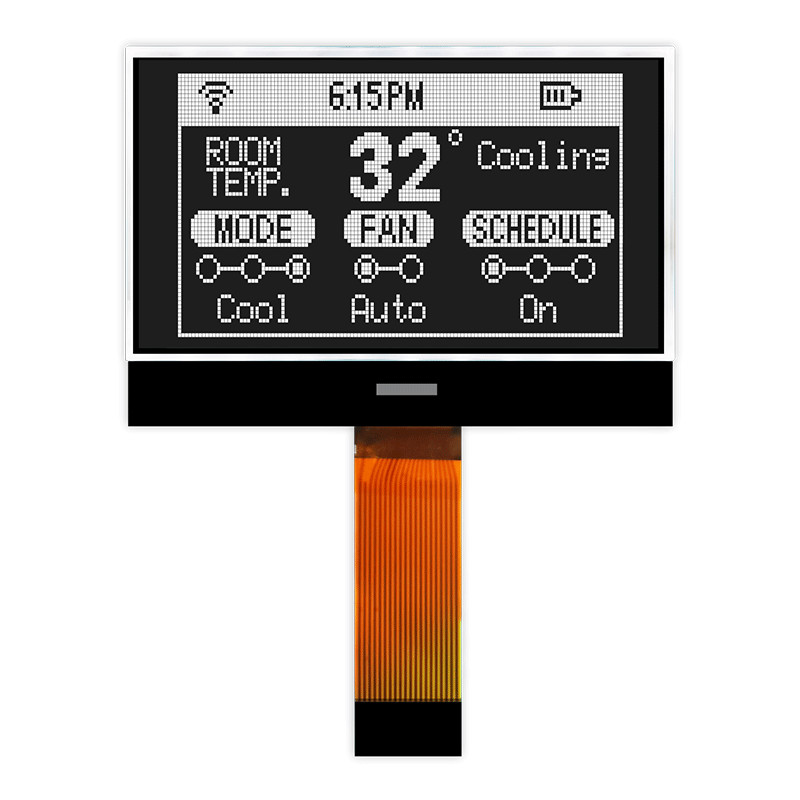

    128X64 Monochrome COG LCD Module 3.3V MCU8080 ST7567 HTG12864T

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTG12864T
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    128X64 Monochrome COG LCD Module 3.3V MCU8080 ST7567 HTG12864T

    128X64 Graphic COG MCU8080 ST7567 | FSTN Display With White Side Backlight/HTG12864T

    HTG12864T01A-MCU8080 | Monochrome Graphic COG | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display | Modified Corner Tab Supports | IN-Stocked


    HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -30 to 80 degrees Celsius. This HTG12864T01A-MCU8080 display includes modified corner tab supports. It has an optimal view of 6:00, operates at 3.3V supply voltage , and is RoHS compliant.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots128x64dots
    Module dimension53.2x37.8x2.8mm
    View display area49.2x27mm
    Dot size0.28x0.34mm
    Dot pitch0.32x0.38mm
    Operating temp-30~80
    Storage temp-40~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
    Viewing direction6H
    Display mode
    FSTN
    Display typeTRANSMISSIVE / NEGATIVE
    Driver ICST7567
    Backlight

    WHITE

    Product applicationindustrial control, instrumentation

    Absolute Maximum Ratings


    ItemsSymbolMIN.MAX.UnitCondition
    Supply VoltageVDDVSS+3.3VVSS = 0V
    Input VoltageVINVSSVDD+0.3VVSS = 0V
    Operating TemperatureTOP-30+80No Condensation
    Storage TemperatureTst-40+80No Condensation


    All Products


    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
    Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
    Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.

    Search Keyword: lcd 128x64, lcd 128 x 64, 128x64 lcd, 128 x 64 lcd

    128X64 Monochrome COG LCD Module 3.3V MCU8080 ST7567 HTG12864T128X64 Monochrome COG LCD Module 3.3V MCU8080 ST7567 HTG12864T128X64 Monochrome COG LCD Module 3.3V MCU8080 ST7567 HTG12864T

    LCD Custom Solutions

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

    128X64 Monochrome COG LCD Module 3.3V MCU8080 ST7567 HTG12864T
    128X64 Monochrome COG LCD Module 3.3V MCU8080 ST7567 HTG12864T

    Connector Customization

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.


    128X64 Monochrome COG LCD Module 3.3V MCU8080 ST7567 HTG12864T

    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


    128X64 Monochrome COG LCD Module 3.3V MCU8080 ST7567 HTG12864T

    PCB Modifications

    Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.


    128X64 Monochrome COG LCD Module 3.3V MCU8080 ST7567 HTG12864T

    HTG12864T01A-MCU8080.pdf
