    SPI Graphic COG LCD Module 320x240 ST75320 FSTN Display Positive Transflective HTG320240A

    320x240 SPI Graphic COG LCD ST75320 | FSTN Display Positive Transflective/HTG320240A

    HTG320240A | Monochrome Graphic COG | 320x240 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display

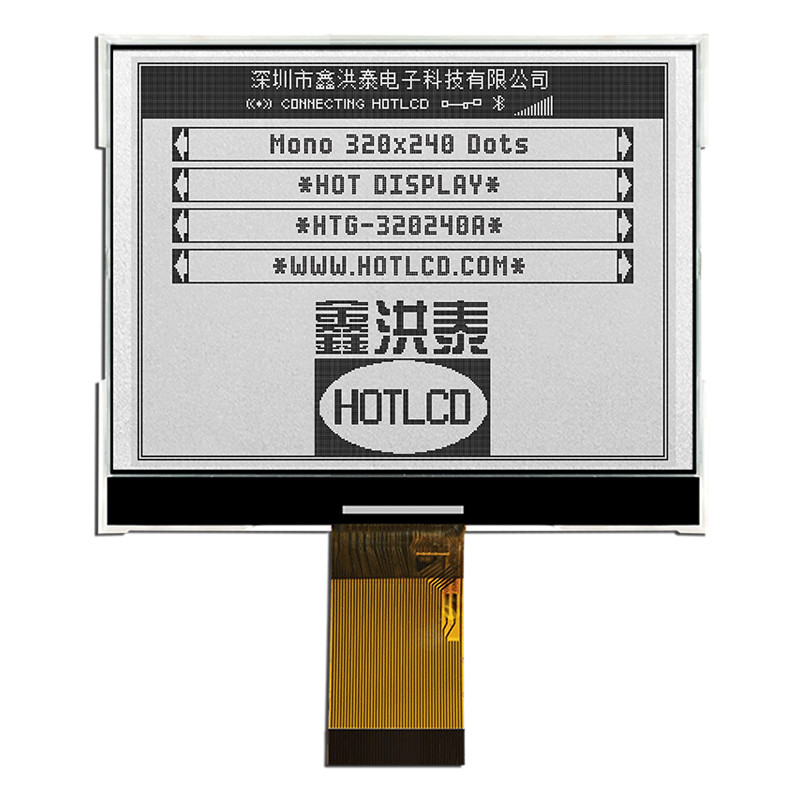

    HOTLCD 320x240 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG320240A display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots320x240dots
    Module dimension107(L)x86(W)x5.8mm
    View display area102.2(L)x72.3(W)mm
    Dot size0.26x0.26mm
    Dot pitch0.28x0.28mm
    Operating temp-20~70
    Storage temp-30~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
    Viewing direction6H
    Display mode
    FSTN
    Display typeTRANSMISSIVE / NEGATIVE
    Driver ICST75320
    Backlight

    WHITE

    Product applicationindustrial control, instrumentation

    Terminal Function


    Pin No.Pin NameFunction
    1ESD(GND)Frame ground.
    2VOUTVOUT is the source of V3 regulator.
    3CE2PConnects a non-polar capacitor between CE2P and CE2N.
    4CE2NConnects a non-polar capacitor between CE2P and CE2N.
    5CE3PConnects a non-polar capacitor between CE3P and CE1N.
    6CE1NConnects a non-polar capacitor between CE3P and CE1N.
    7CE1PConnects a non-polar capacitor between CE1P and CE1N.
    8V3LCD driver supply.
    9CB1PConnects a non-polar capacitor between CB1P pin and CB1N pin.
    10CB1NConnects a non-polar capacitor between CB1P pin and CB1N pin.
    11MV3LCD driver supply.
    12CD2PConnects a non-polar capacitor between CD2P pin and CD2N pin.
    13CD2NConnects a non-polar capacitor between CD2P pin and CD2N pin.
    14NAVDDDC/DC converter for LCD driver circuit.
    15CD1NConnects a non-polar capacitor between CD1P pin and CD1N pin.
    16CD1PConnects a non-polar capacitor between CD1P pin and CD1N pin.
    17CA2NConnects a non-polar capacitor between CA2P and CA2N.
    18CA2PConnects a non-polar capacitor between CA2P and CA2N.
    19CA1NConnects a non-polar capacitor between CA1P and CA1N.
    20CA1PConnects a non-polar capacitor between CA1P and CA1N.
    21AVDDDC/DC converter for LCD driver circuit.
    22MV2LCD driver supply.
    23MV1LCD driver supply.
    24V1LCD driver supply.
    25V2LCD driver supply.
    26VCVC should be connected with ground system.
    27VSSPower supply(0V).
    28VDDAPower supply(3.3V).
    29VDDIVDD1 is the power of interface I/O circuit and OSC circuit.
    30VD1LCD driver supply.
    31SDA_OUT [D2:3]serial output data.
    32SDA_IN [D1]serial input data.
    33SCLKserial input clock.
    34A0A0 determines whether the access is related data or command.
    35RSTBReset input pin.
    36CSBChip select input pin.
    37TP1No connect.
    38TP2No connect.
    39BL_KCathode of LED backlight(0V).
    40BL_AAnode of LED backlight(+12V).
    41-44NcNo connect.
    45ESD(GND)Frame ground.

    All Products


    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
    Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
    Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
