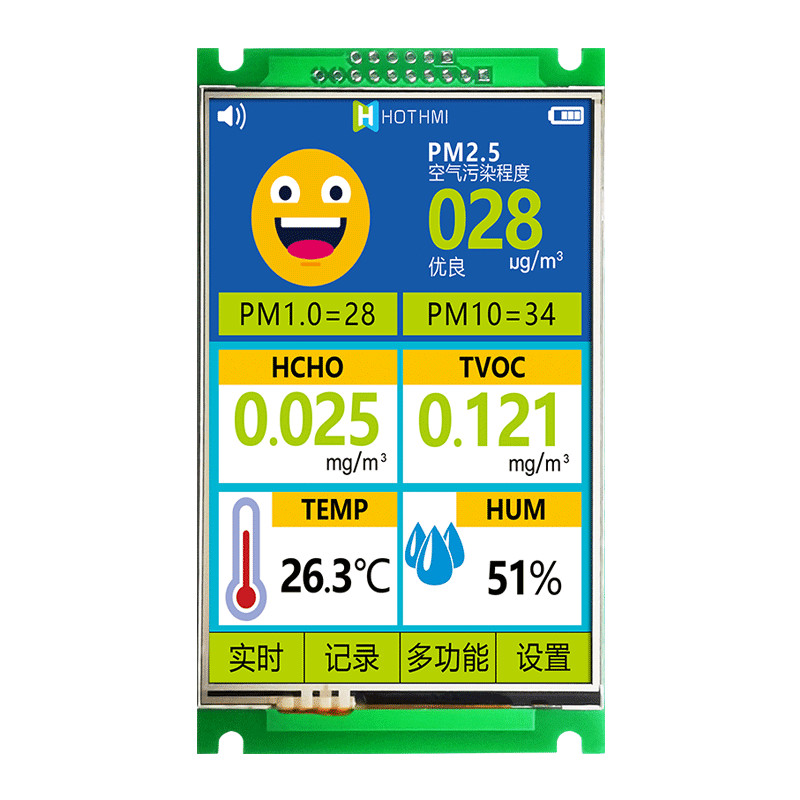

3.5 inch TFT 320X480 Intelligent serial screen/resistive
touch/configuration screen EzUILet035
EzUILet 035 is one of the EzUI series serial port intelligent
display module, with
a 3.5-inch (diagonal) color TFT, display, 320480 dot matrix, 16-bit
color depth; 16M
bytes inside the module with resource memory. The module needs 5V
DC power supply, the
external interface is serial UART (TTL level), interface or SPI
interface, simple
interface and easy interface operation with various MCU.
The biggest features of EzUILet series modules are easy to use,
rich functions, and
users can be simple and complex. Users can use the interface
development tool software
(EzUITool) for human-computer interface design, editing, control
configuration, response
setting, etc., the tool software generated resources files download
to EzUILet series
modules, can achieve the required human-computer interface design,
without the user
microcontroller or other controller programming control. In order
to meet users with
special requirements, the EzUILet series module also retains most
display control
instructions (similar to the MzTH series module), so that users can
be able to control
the module display more freely.
EzUILet series and EzUI series: EzUILet series modules are derived
from EzUI series
modules and also belong to EzUI series modules; relative to EzUI
series modules, EzUILet
series simplifies some controls, and changes the module USB device
interface to virtual serial
port, resource files are written differently from the original EzUI
series; EzUILet series
modules also reduce the capacity of resource memory more reasonable
and more reliable. The
naming of the GUI controls in the EzUILet series modules still uses
the EzUI series module
naming.
| project | specifications | unit | Note that |
| Displays the number of dot arrays | 320×RG B ×480 | Do ts | Screen display |
| LCD size | .53 (Diagonal line) | inch | 3.5 |
| Touch the panel | A 3.5-inch electric resistance screen | |
apolegamy
|
| outline dimension | 57×98×8.0 | m m | Excluding module pins |
| Dynamic display area | 48.96×73.44 | m m | |
| Like element composition | a -Si TFT | | |
| LCD pattern | 65K TFT | | The 16-bit color depth |
| be in a poor light | white LED | | |
| Module power supply | 5V | | |
| parameter | symbo l | condition | minimu m | typica l case | maximu m | unit |
| working current | I5 | Dynamic display, with a backlight =300 | 100 | 110 | 118 | m A |
3.5EzUILet035.pdf
