2.4 Inch 240x320 Dots UART Interface TFT Display With Resistive Touch/LCM-EU02401KL

General Feature

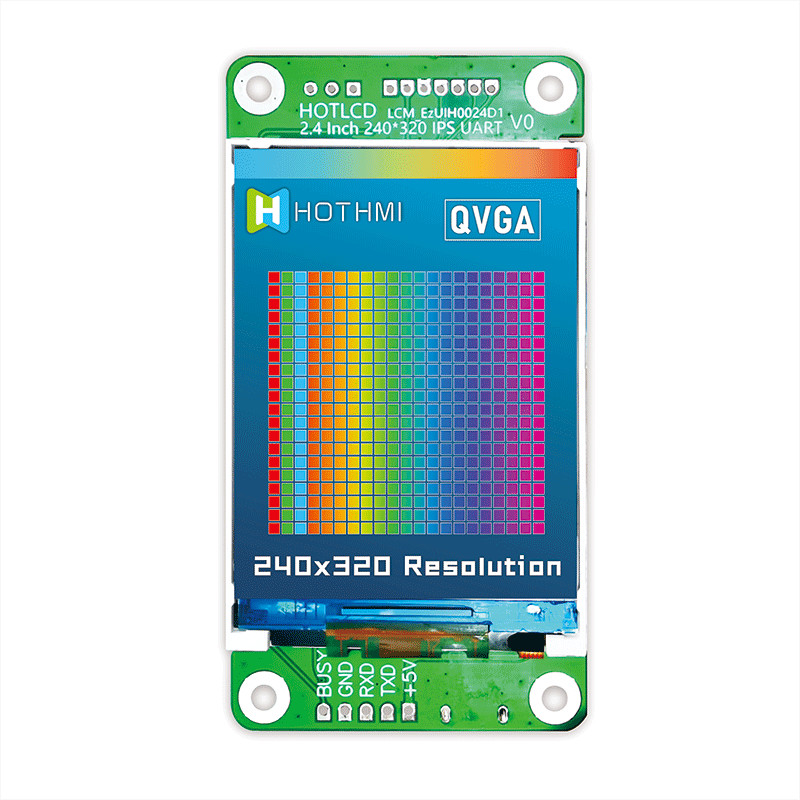

EU02401KL is one of the EzUI series serial intelligent display modules. The module display is a 2.4-inch color TFT display, 240×320 dot matrix, 16-bit color depth; there is a 16M-byte Flash memory inside the module to store pictures, GIF animations, Information such as font library. The module is powered by a USB interface of 5.0V DC, and the external interface of the module is a serial UART (TTL level) interface. The interface is simple and easy to operate; convenient and simple interface operations can be carried out with various MCUs.

The biggest feature of EzUI series modules is easy to use and rich in functions, which can be simple or complex for users. The MCU program inside the module already contains the UART serial port protocol. The user can use the PC upper computer software (UI_Editor) to directly develop the product's UI display interface on the computer, and use the resource files generated by the tool software through the USB interface and the communication software (LT_VCOM_GUI) ) Update the internal MCU program and SPI Flash data.

The built-in serial port command function of the module includes picture display, GIF animation display, cycle picture display, boot screen display, vertical bar display, text string display, two-dimensional code generation, and geometric graphics display such as drawing lines, drawing circles, Functions such as drawing triangles and rectangles
