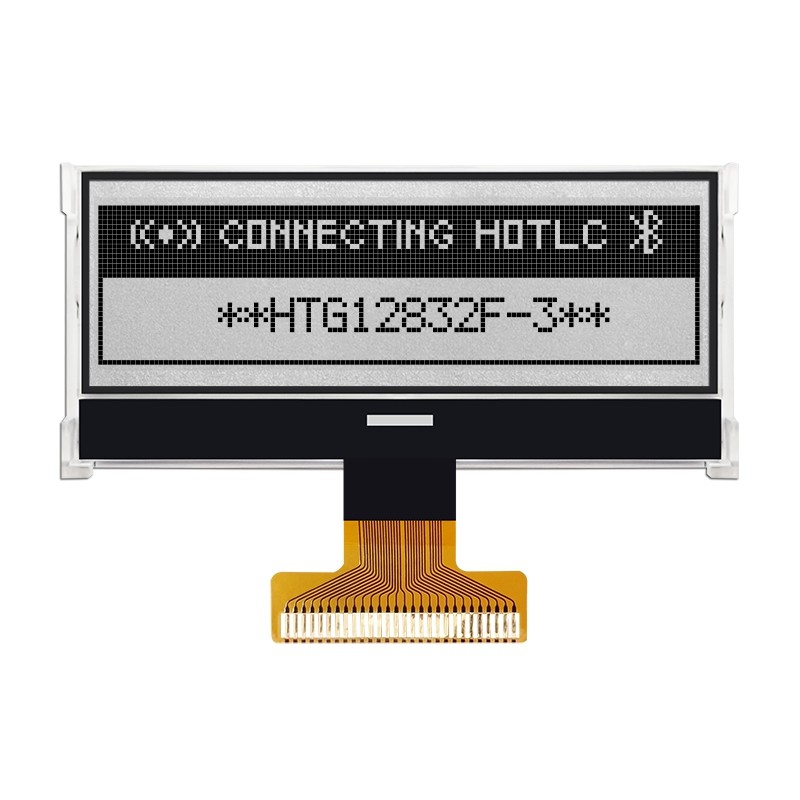

    128X32 Graphic COG LCD ST7565R | FSTN + Display With GRAY Backlight/HTG12832F-3

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTG12832F-3
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    128X32 Graphic COG LCD ST7565R | FSTN + Display With GRAY Backlight/HTG12832F-3

    128X32 Graphic COG LCD ST7565R | FSTN + Display With GRAY Backlight/HTG12832F-3


    DESCRIPTION


    HTG12832F-3 is a 128x64 COG monochrome Graphic LCD module. This LCD module is built in with ST7565R controller or equivalent IC. It supports 6800 8-bit, 8080 8-bit parallel and SPI interface. This LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This LCD COG 128x64 display is very suitable for the applications that demand more compact package displays.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots128x32 DOTS----
    Module dimension63.0x27.5x2.0mm
    View display area59.0x17.5mm
    Dot size0.424x0.407mm
    Dot pitch0.438x0.455mm
    Operating temp-20~70
    Storage temp-30~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
    Viewing direction6 O’CLOCK
    Display modeFSTN
    Display typeTRANSMISSIVE / NEGATIVE
    Driver ICST7565R
    Backlight

    WHITE


    Pin_SIGNAL


    Pin No.Pin NameFunction
    1VDDPower supply

    2

    C86

    This is the MPU interface selection pin. C86 = “H”: 6800 Series MPU interface.

    C86 = “L”: 8080 Series MPU interface.

    3VSSPower supply (Negative)

    4~8

    V5~V1

    This is a multi-level power supply for the liquid crystal drive. The voltage Supply applied is determined by the liquid crystal cell, and is changed through the use of a resistive voltage divided or through changing the impedance using an op. amp. Voltage levels are determined based on Vss, and must maintain the relative magnitudes shown below.

    V1 ≧V2 ≧V3 ≧V4 ≧V5

    9C2+

    When internal DC-DC voltage converter is used, external capacitor is connected between these pins.

    10C2-
    11C1+
    12C1-
    13C3+
    14VOUTPositive voltage supply pin of the chip.
    15VSSNegative power supply,0V
    16~23D7~D08bit Date bus,

    24

    E

    • When connected to 8080 series MPU, this pin is treated as the “/RD” signal of the 8080 MPU and is LOW-active.

    The data bus is in an output status when this signal is “L”.

    • When connected to 6800 series MPU, this pin is treated as the “E” signal of the 6800 MPU and is HIGH-active.

    This is the enable clock input terminal of the 6800 Series MPU.

    25R/WWhen R/W = “H”: Read. When R/W = “L”: Write.

    26

    A0

    This is connect to the least significant bit of the normal MPU address bus, and it determines whether the data bits are data or command.

    A0 = “H”:Indicates that D0 to D7 are display data. A0 = “L”: Indicates that D0 to D7 are control data

    27/RESReset input pin
    28/CS1Chip selection input

    Absolute Maximum Ratings


    ItemsSymbolMIN.MAX.UnitCondition
    Supply VoltageVDD-0.3+3.6VVSS = 0V
    Input VoltageVIN-0.3VDD+0.3VVSS = 0V
    Operating TemperatureTOP-20+70No Condensation
    Storage TemperatureTst-30+80No Condensation

    Electrical Characteristics

    128X32 Graphic COG LCD ST7565R | FSTN + Display With GRAY Backlight/HTG12832F-3128X32 Graphic COG LCD ST7565R | FSTN + Display With GRAY Backlight/HTG12832F-3128X32 Graphic COG LCD ST7565R | FSTN + Display With GRAY Backlight/HTG12832F-3128X32 Graphic COG LCD ST7565R | FSTN + Display With GRAY Backlight/HTG12832F-3128X32 Graphic COG LCD ST7565R | FSTN + Display With GRAY Backlight/HTG12832F-3128X32 Graphic COG LCD ST7565R | FSTN + Display With GRAY Backlight/HTG12832F-3128X32 Graphic COG LCD ST7565R | FSTN + Display With GRAY Backlight/HTG12832F-3128X32 Graphic COG LCD ST7565R | FSTN + Display With GRAY Backlight/HTG12832F-3

    ItemsSymbolMIN.TYP.MAX.UnitCondition
    Operating VoltageVDD3.03.33.6VVDD
    Input High VoltageVIH0.8 x VDD-VDDV/CS1,/RES,A0,E , R/W,D0~D7,C86
    Input Low VoltageVILVSS-0.2 x VDDV
    Output High VoltageVOH0.8 x VDD-VDDVD0~D7
    Output Low VoltageVOLVSS-0.2 x VDDVD0~D7
    Operation CurrentIop100-220μAVDD=3.0V
    Sleep modelDD-0.14μATa=25℃
    Standby modelDD-510μATa=25℃

    LED Backlight Circuit


    ItemsSymbolMIN.TYP.MAX.UnitCondition
    Forword VoltageVf BLA-3.1-VVDD
    Forword CurrentIf BLA-9095mAVDD
