    Sunlight Readable TFT LCD Module 4.3 Inch 480x800 NT35510 TFT_H043A4WVIST5N60

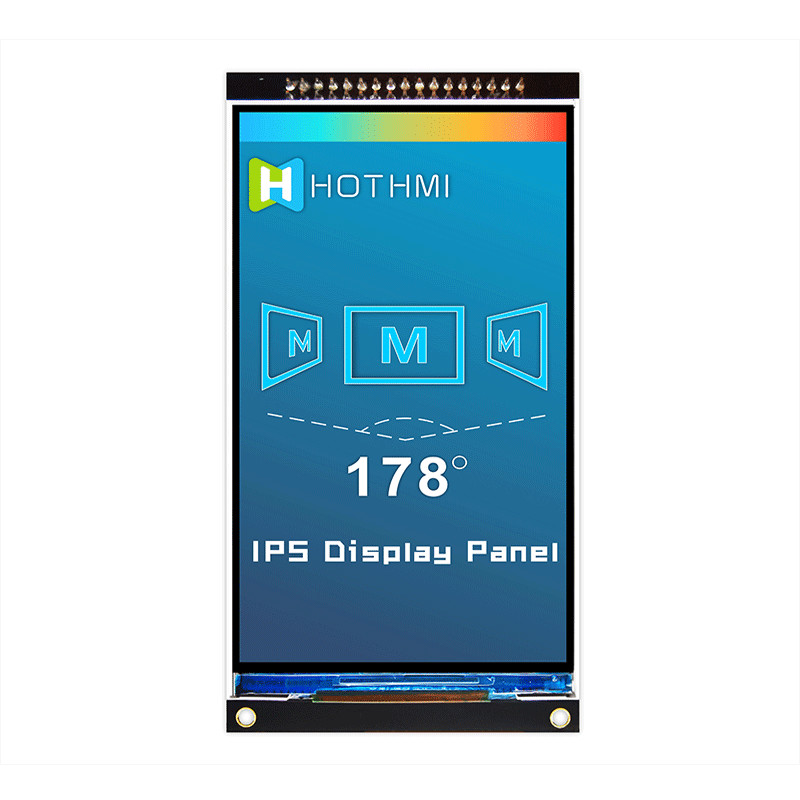

    4.3 Inch 480x800 Sunlight Readable TFT Display Module NT35510/TFT_H043A4WVIST5N60


    Product parameters


    Dimensions (mm) - 60.86x104.50x 2.50
    Effective size mm - 56.16x93.60
    Product Application - Handheld Instruments
    Angle - Full Angle
    Backlight type or brightness - 500cd/m2
    Connection method PIN number - FPC-60PIN
    Supply voltage - 3.3v

    General Feature


    ItemStandard ValueUnit
    Display Size4.3”--
    Number of Pixels480(H)x3(RGB)*800(V)--
    Active Area56.16(H) *93.60(V)mm
    LCM Outline Dimension60.86(H) ×102.57× 2.70(V)mm
    Viewing DirectionFull O’Clock-
    LCM InterfaceWith CPU / RGB / MIPI / MDDI Interface-
    LCM Driver ICNT35510-
    LCM Driver VoltageIOVCC=1.8V,VCI=3.3V (Typ)V
    BacklightWhite LED-
    Touch PanelWithout Touch Panel-
    CTP Driver IC- - --
    CTP Driver Voltage- - -V
    CTP I/O Digital Voltage- - -V
    Operation Temperature-20~70
    Storage Temperature-30~80

    Pin Description


    Pin NO.SymbolDescription
    1,2GNDGround

    3


    D0N

    ♦These pins are DSI-D0+/- differential data signals if MIPI interface is used.

    ♦These pins are MDDI_DATA0_P/M differential strobe signals if MDDI interface is used.

    ♦If not used, please fix this pin at GND.


    5


    D0P

    5,6GNDGround

    7


    DCLKN

    ♦These pins are DSI-CLK+/- differential clock signals if MIPI interface is used.

    ♦These pins are MDDI_STB_P/M differential strobe signals if MDDI interface is used.

    ♦If not used, please fix this pin at GND.


    8


    DCLKP

    9GNDGround

    10


    D1N

    ♦These pins are DSI-D1+/- differential data signals if MIPI interface is used.

    ♦These pins are MDDI_DATA1_P/M differential strobe signals if MDDI interface is used.

    ♦If not used, please fix this pin at GND.


    11


    D1P

    12GNDGround
    13VCIAnalog Power
    14IOVCCPower supply for interface system
    15VSD

    ♦ Vertical synchronizing input signal for RGB interface.

    ♦ If not used, please fix this pin at GND.

    16HSD

    ♦ Horizontal synchronizing input signal for RGB interface.

    ♦ If not used, please fix this pin at GND.

    17PCLK

    ♦ Pixel clock signal for RGB interface.

    ♦ If not used, please fix this pin at GND.

    18DEN

    ♦ Data enable signal for RGB interface.

    ♦ If not used, please fix this pin at GND.


    19-42


    DB0-DB23

    ♦ Data Bus.

    ♦ If not used, please fix this pin at GND.

    43RESETLCM Reset Pin.

    44


    CSX

    ♦ Chip select input pin (“Low” enable) in 80-series MPU I/F and SPI I/F.

    ♦ This pin is not used for MIPI or MDDI I/F, please fix this pin at GND.

    45RDX

    ♦ Read enable in 8080 MCU parallel IF. Low-active.

    ♦If not used, please fix this pin at GND.


    46


    WRX

    ♦ Write enable in MCU parallel interface

    ♦ In SPI mode, this pin is used as SCL.

    ♦ In I2C mode, Serial input clock in I2C I/F

    ♦ If not used, please fix this pin at GND.

    47DCX

    ♦ Display data/command selection pin in parallel IF.

    ♦ If not used, please fix this pin at GND.


    48


    SPI_SDI

    ♦ In SPI mode,SPI interface input/output pin.

    ♦ In I2C mode, Serial input/output signal in I2C I/F.

    ♦ If not used, please fix this pin at GND.

    49SPI_SDO

    ♦ In SPI mode,SPI interface output pin.

    ♦ If not used, please let this pin open.


    50


    TE

    ♦ Tearing effect signal is used to synchronize MCU to frame memory writing.

    ♦ If not used, please let this pin open.

    51-54IM0-IM3The MCU interface mode select

    55


    PSWAP

    ♦ Input pin to select HSSI_D0/D1 data lane sequence and polarity in high speed interface only.

    ♦ For MIPI interface, both DSWAP and PSWAP function are available.

    ♦ For MDDI interface, only PSWAP function is available. i.e. DSWAP=1 in below table is invalid.

    ♦ If not used, please fix this pin at GND.


    56


    DSWAP


    57


    LANSEL

    ♦ Input pin to select 1 data lane or 2 data lanes in MIPI/MDDI interface.

    ♦ If not used, please fix this pin at GND.

    58MTPNo Conect
    59LED_ALED Anode
    60LED_KLED Cathode
