    Durable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 IC

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT-H035 A11HVTST5N15
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

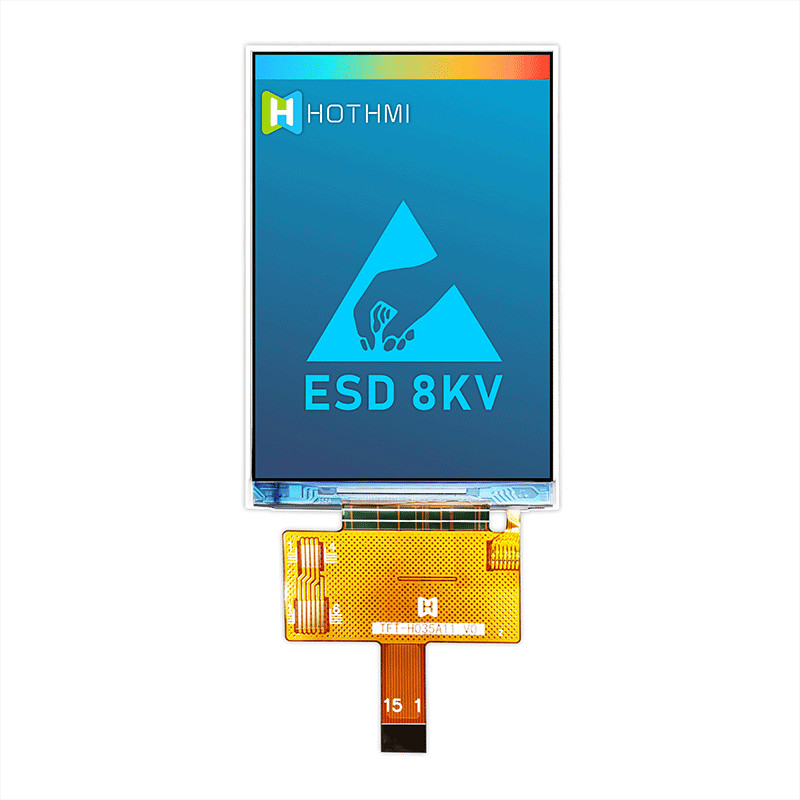

    Durable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 IC

    3.5 Inch SPI 320x480 Dots TFT Module ST7796 IC/TFT-H035 A11HVTST5N15


    Product parameters


    Product Type - TFT Vertical Screen
    Display Content - 320x480
    Dimensions (mm) - 54.66 x 83.0 x 3.80
    Viewshed window size - 3.5 inch
    Display Size - 3.5 inches
    Effective Dimensions mm - 48.96 x 73.44
    Product Application - Outdoor Instrumentation


    General Feature


    Item

    Standard Value

    Unit

    Display Size

    3.5

    Inch

    Number of Pixels

    320(H)*3(RGB)* 480(V)

    dots

    Active Area

    48.96(H)* 73.44(V)

    mm

    Outline Dimension

    54.50(H) * 83.00(V) * 2.30(D)(V0-0)

    mm

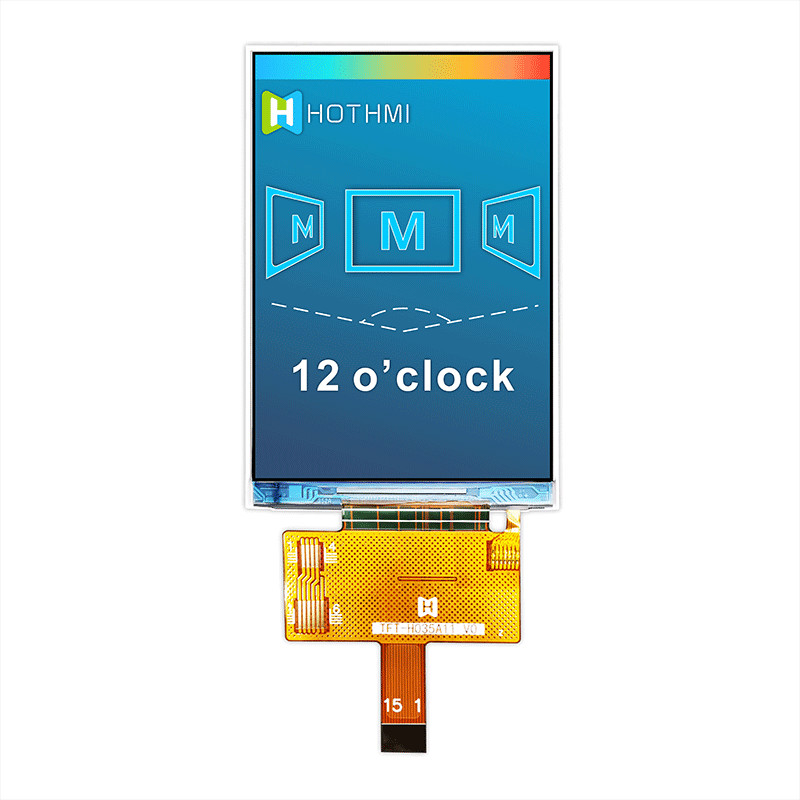

    Viewing Direction

    12 O'Clock (U60/D60/L70/R70)

    -

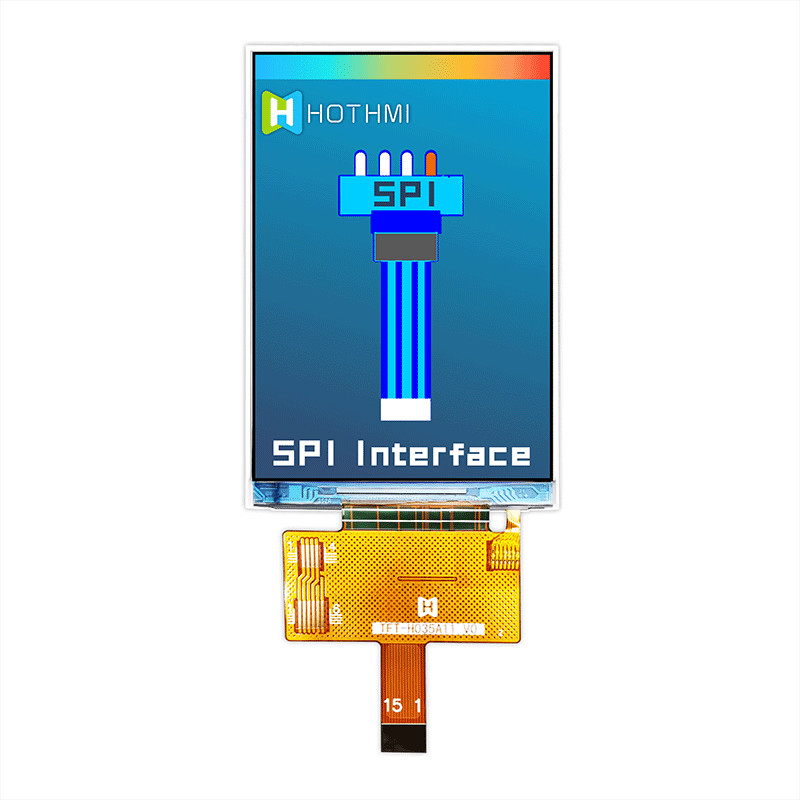

    Interface

    SPI 3-Line or 4-Line Serial interface

    -

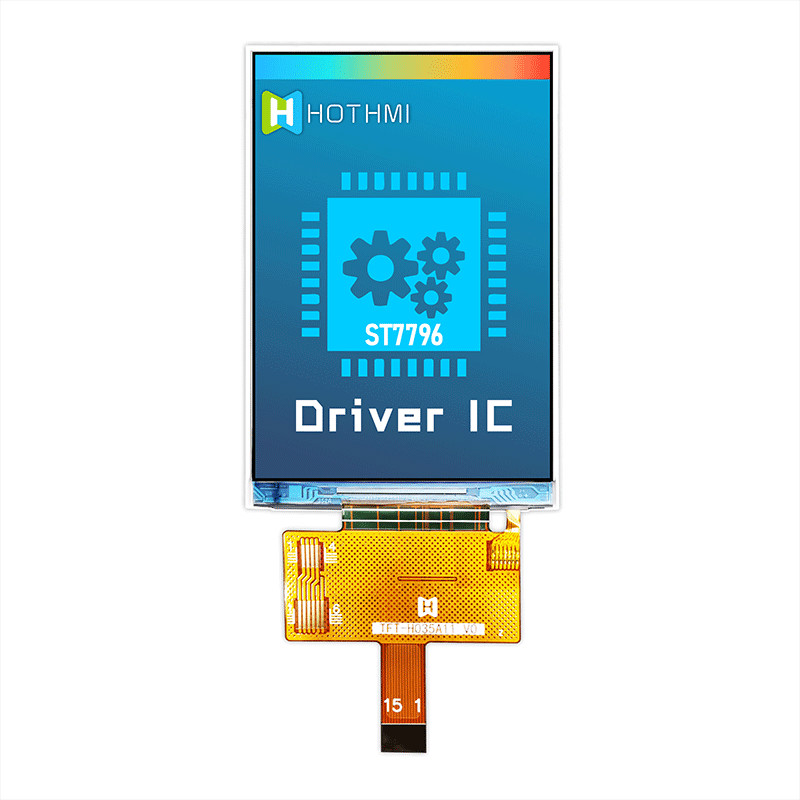

    Driver IC

    ST7796-

    Driver Condition

    IOVCC=1.8V,VCI=2.8V or 3.3V(Typ)

    V

    Backlight

    White LED/6 PCS/1 PCS serial 6 ways parallel

    -

    Touch Panel

    Without TP √

    With RTP

    With CTP

    -

    TFT Operation AT

    -20 ~ +70

    TFT Storage AT

    -30 ~ +80


    TFT Pin Description


    Pin NO.

    Symbol

    Description

    1LEDK

    LED cathode

    2LEDA

    LED anode

    3GND

    Power supply ground

    4SPI

    3-wire and 4-wire SPI interface selection

    5RESX

    Reset signal. Signal is active low


    6

    SPI-SDA

    - Serial interface data input/output pins.

    - The data is latched on the rising edge of the SCL signal.

    7SPI-SCL

    Serial Interface Clock

    8SPI-D/CX

    Serial interface data/command selection pin

    9SPI-CSX

    Chip selection pin.Low enable.

    10VCI

    Power supply

    11CTP-VDD

    CTP Power supply

    12CTP-SCL

    CTP I2C clock signal

    13CTP-SDA

    CTP I2C data signals

    14CTP-INT

    CTP interrupt signal

    15CTP-RES

    CTP Reset pin


    DESCRIPTION


    3.5 inch Thin Film Transistor (TFT-LCD)
    HOTLCD Display offers a series of medium size O-Film TFT (Thin Film Transistor) displays featuring with wider viewing angle Technology. Most industrial application of TFT-LCD glasses that are available in the market are TN-LCD type. However, TN technology suffers from phenomenon called gray scale inversion. This means the display have one viewing side in which color of the image change suddenly after exceeding specified view angle. Therefore, the normal TFT models we offer which the viewing angle are limited. HOTLCD offers an O-Film TFT solution to enhance TN glass viewing angle and can overcome gray scale inversion.

    Search keyword: tft 3.5, tft 3.5", 3.5 tft lcd, 3.5" tft lcd, 3.5 inch tft lcd, tft lcd 3.5, 3.5 tft display, 3.5" tft display, 3.5 inch tft display, tft display 3.5, tft display 3.5"

    Durable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 ICDurable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 ICDurable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 ICDurable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 ICDurable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 ICDurable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 ICDurable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 ICDurable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 ICDurable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 IC

    Durable 3.5 Inch SPI TFT Display 320x480 Dots With ST7796 IC

    TFT-H035A11.pdf
