    2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : TFT028A16-SPI
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI

    2.8 Inch 240x320 SPI TFT Display Moudle ST7789V Sunlight Readable/TFT028A16-SPI


    General Feature


    Item

    Standard Value

    Unit

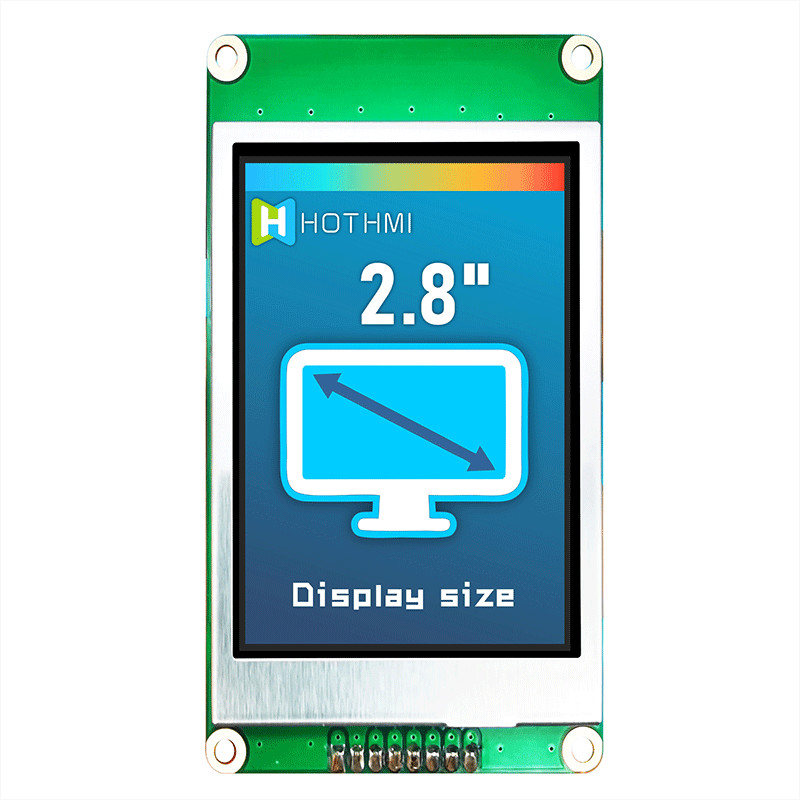

    Display Size2.8Inch

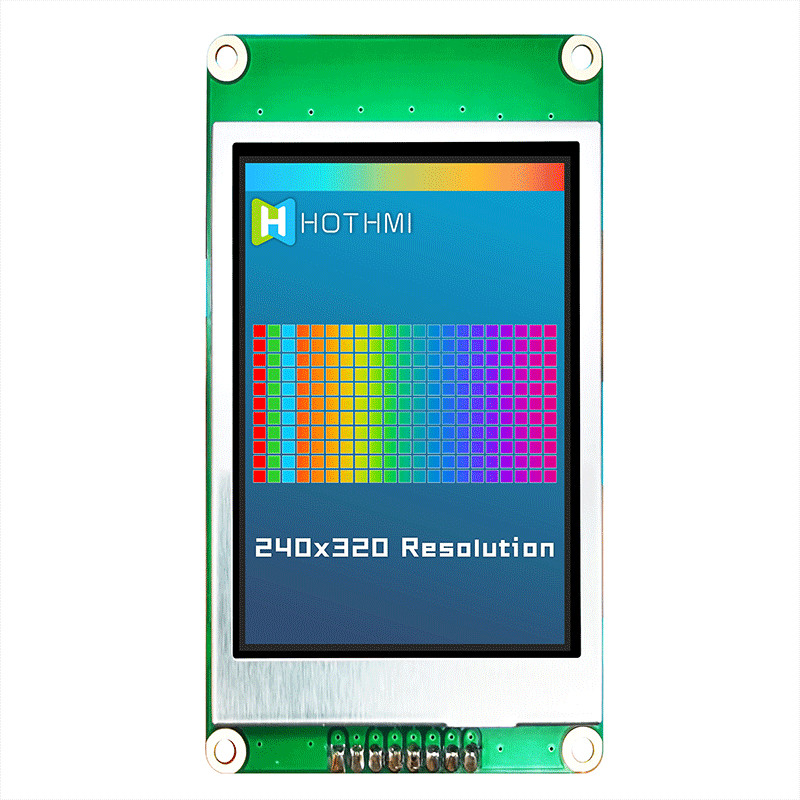

    Number of Pixels240(H)*3(RGB)* 320(V)dots
    Active Area43.20(H)* 57.60(V)mm
    Outline Dimension88.00(H) * 53.30(V) * 7.70(D)mm
    Viewing DirectionFULL O'clock-
    Interface4-Line Serial Interface-

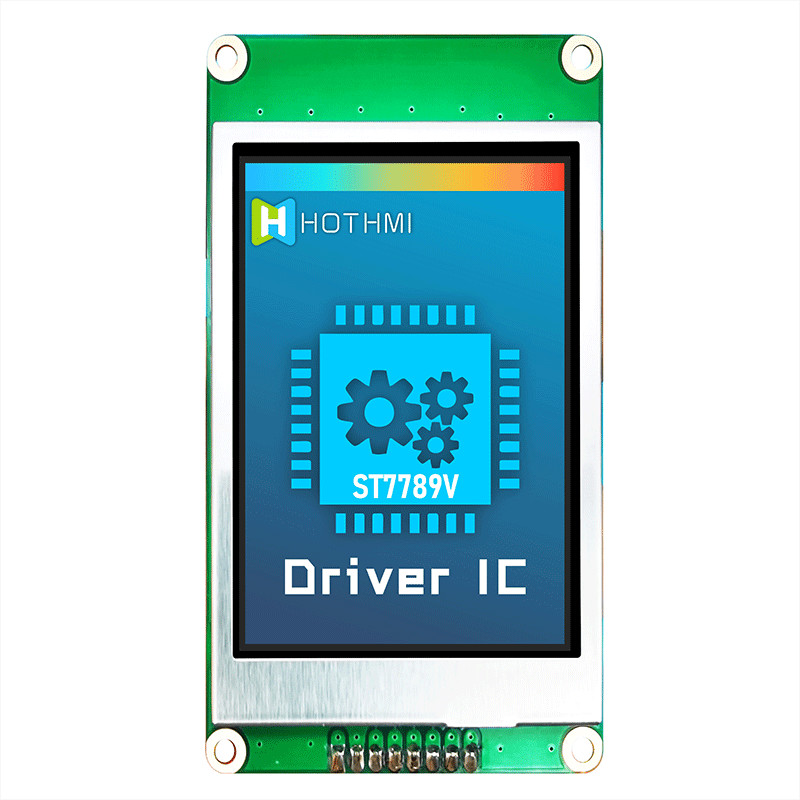

    Driver ICST7789-
    Driver ConditionVCC=3.3V(Typ)V
    Backlight-1

    White LED/6 PCS/1 PCS serial 6 ways parallel

    -
    Touch PanelWhitout TP √Whit RTPWhit CTP-
    CTP Driver IC- - --
    CTP Driver Condition- - -V
    Operation Temperature-30 ~ 80

    Storage Temperature-30 ~ 85


    TFT Pin Description


    Pin NO.SymbolDescription
    1VCC

    3.3V power supply

    2GNDGround
    3SDA

    SPI interface data.

    4SCL

    SPI interface clock.

    5/CS

    Chip select input pin (“Low”enable).

    6D/C

    Data or command selection.

    7/RESReset pin.
    8BL_E

    Backlight on/off control (high: on; low: off)


    Search keyword: tft 2.8, tft 2.8", 2.8 tft lcd, 2.8" tft lcd, 2.8 inch tft lcd, tft lcd 2.8, 2.8 tft display, 2.8" tft display, 2.8 inch tft display, tft display 2.8, tft display 2.8", 2.8 lcd

    2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI

    2.8 Inch 240x320 SPI TFT LCD Module ST7789V Sunlight Readable TFT028A16-SPI

    HTM-TFT028A16-SPI.pdf
