    Multipurpose 3.5" TFT LCD Display Sunlight Readable With Compatible Interface TFT-H035A3HVIST5N50

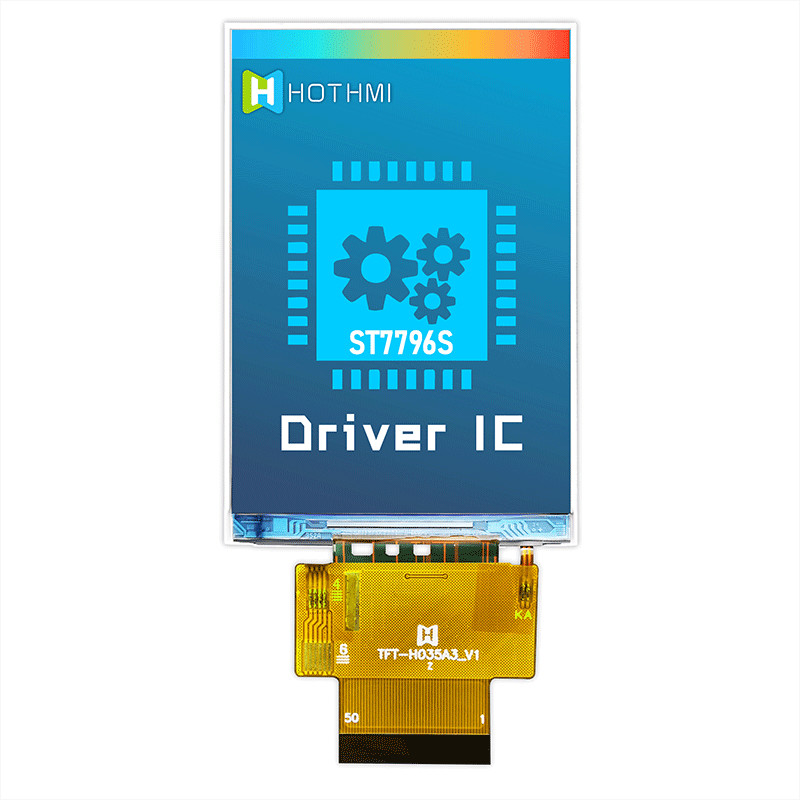

    3.5" Sunlight Readable Compatible Interface TFT No Touch Screen/TFT-H035A3HVIST5N50


    Product parameters


    Display Size - 3.5"
    Perspective - Full Perspective
    Backlight brightness - 500cd/m2
    Connection method PIN number - FPC-50PIN
    Interface - MCU/SPI/RGB/MIPI
    Working temperature - (-20~70℃)
    Supply Voltage - 3.3v
    Driver chip model - ST7796S


    General Feature:


    ItemStandard ValueUnit
    Display Size3.5”--
    Number of Pixels320(H)x3(RGB)*480(V)--
    Active Area48.96(H) *73.44(V)mm
    LCM Outline Dimension54.76(H) ×83.58× 2.50(V)mm
    Viewing DirectionFull O’Clock-
    LCM InterfaceSPI,RGB,MCU,MIPI, Free to choose-
    LCM Driver ICST7796S-
    LCM Driver VoltageVCI=2.8VV
    BacklightWhite LED-
    Touch PanelWithout Touch Panel-
    CTP Driver IC- - --
    CTP Driver VoltageVDD=2.8VV
    CTP I/O Digital Voltage- - -V
    Operation Temperature-20~70
    Storage Temperature-30~80

    Pin Description

    Pin NO.SymbolDescription
    1LED_ALED Anode
    2LED_KLED Cathode
    3GNDGround
    4MIPI_DN

    ♦ Positive polarity of low voltage differential data signal

    ♦ Leave the pin to open when not in use.

    5MIPI_DP

    ♦ Negative polarity of low voltage differential data signal

    ♦ Leave the pin to open when not in use.

    6GNDGround

    7


    MIPI_CN

    ♦ Negative polarity of low voltage differential clock signal

    ♦ Leave the pin to open when not in use.


    8


    MIPI_CP

    ♦ Positive polarity of low voltage differential clock signal

    ♦ Leave the pin to open when not in use.

    9GNDGround
    10-12IM0-IM2The MCU interface mode select
    13RESETLCM Reset Pin.
    14VSD

    ♦ Vertical synchronizing input signal for RGB interface.

    ♦ If not used, please fix this pin at GND.

    15HSD

    ♦ Horizontal synchronizing input signal for RGB interface.

    ♦ If not used, please fix this pin at GND.

    16PCLK

    ♦ Dot clock signal for RGB interface.

    ♦ If not used, please fix this pin at GND.

    17DEN

    ♦ Data enable signal for RGB interface.

    ♦ If not used, please fix this pin at GND.

    18-35DB17-DB0DataBus.If notused,pleasefixthispinatGND.

    36


    SPI_SDO

    ♦ SPI interface output pin.If not used, let this pin open.

    ♦ The data is outputted on the falling edge of the SCL signal.


    37


    SPI_SDI

    ♦ SPI interface input/output pin.

    ♦ The data is latched on the rising edge of the SCL signal

    ♦ If not used, please fix this pin at GND.


    38


    RDX

    ♦ Read enable in 8080 MCU parallel IF. Low-active.

    ♦If not used, please fix this pin at GND.


    39


    WRX/SPI_SCL

    ♦ Write enable in MCU parallel interface

    ♦ In SPI mode, this pin is used as SCL.

    ♦ If not used, please fix this pin at GND.

    40DCX

    ♦ Display data/command selection pin in parallel IF.

    ♦ If not used, please fix this pin at GND.

    41CSX/SPI_CS

    ♦ Chip select input pin (“Low” enable).

    ♦ If not used, please fix this pin at GND.


    42


    TE

    ♦ Tearing effect signal is used to synchronize MCU to frame memory writing.

    ♦ If not used, please let this pin open.

    43VCIAnalog Power
    44GNDGround
    45NC/CTP_VDD

    ♦ Power supply

    ♦ If not used,

    input for CTP. please let this

    pin


    open.

    46NC/CTP-SCL

    ♦ CTP Serial clock signal.

    ♦ If not used, please let this pin open.

    47NC/CTP-SDA

    ♦ CTP Serial data input signal.

    ♦ If not used, please let this pin open.

    48NC/CTP-INT

    ♦ CTP_External interrupt to the host.

    ♦ If not used, please let this pin open.

    49NC/CTP-RES

    ♦ CTP Reset Pin.

    ♦ If not used, please


    let


    this


    pin


    open.

    50GNDGround
