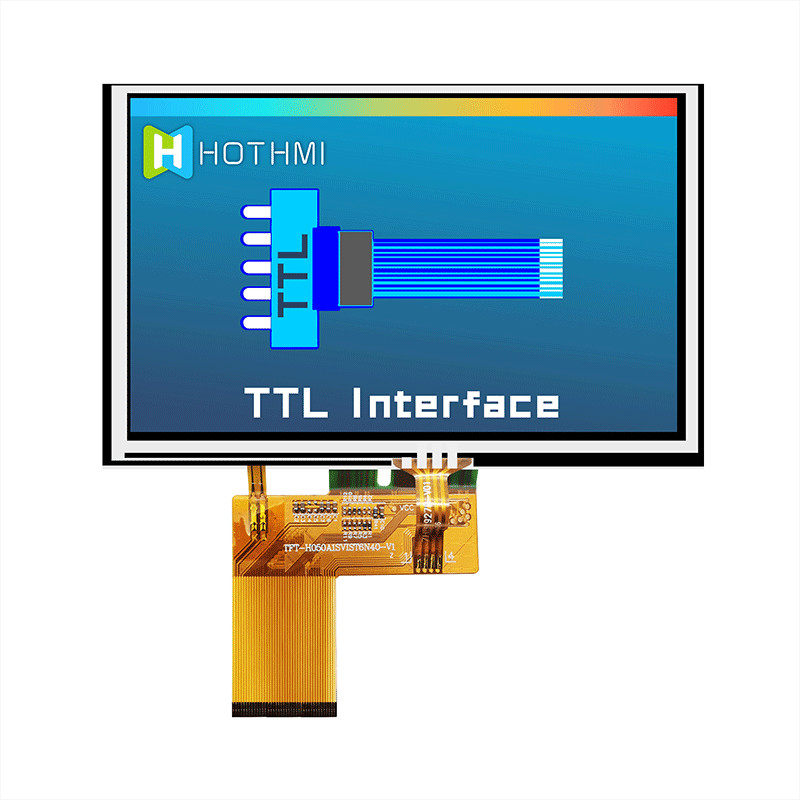

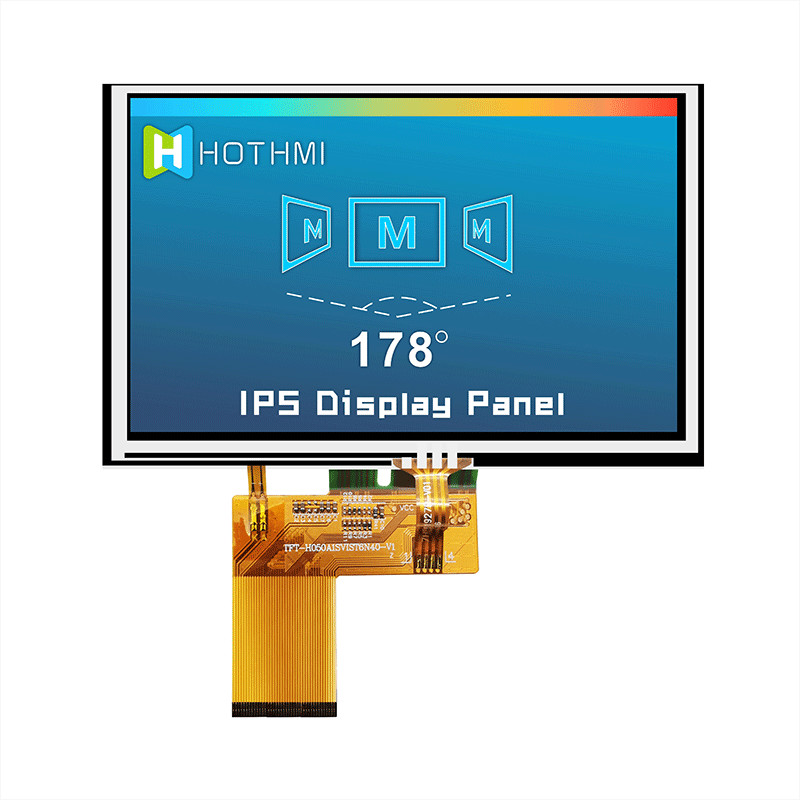

5 Inch TFT LCD Display IC 7262/800x480 Dots Resistive Touch Panel/TFT-H050A1SVIST4R40

Product parameters

Display Content - 800x480
Dimensions (mm) - 120.7x75.8x3.0
Viewport Window Size - 5.0 inch
Display Size - 5.0 inch
Interface method - RGB
Special Instructions - Ultra Wide Temperature Operation
Working temperature - (-30~80℃)
Supply Voltage - 3.3V
Driver IC Model - ST7262

TFT Pin Description

DESCRIPTION

HOTLCD Display 5 inch standard higher resolution TFT LCD model. The dimension is between our standard 4.3 inches and standard 5.7 inches TFT modules, but the H050A1 is with a better resolution. The H050A1 is with 800x480 resolution. The display H050A1 is a good option for customers while designing a new project which request a better resolution or competitive price. The display H050A1 is with outline dimension of 120.7 x 75.8 mm and AA size of 108.0 x 64.80 mm. The H050A1 5 inch TFT module can be operating at temperatures from –30℃ to +80℃; its storage temperatures range from -30℃ to +85℃. This display TFT-H050A1SVIST4R40 TFT LCD module is a 5 inch diagonal, 800xRGBx480, full color TFT-LCD module.
