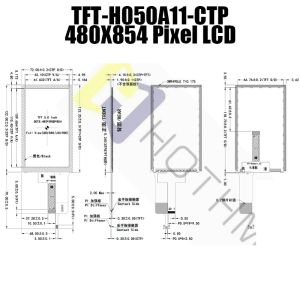

5 Inch TFT LCD IC ST7701S With Touch Screen Module/480x854 Dots/TFT-H050A11FWIST5C20

Product parameters

Display Size - 5.0 inch
Perspective - Full Perspective
Backlight brightness - 550cd/m2
Connection method PIN number - 20+6PIN
Interface - MIPI
Operating temperature - (-20~70℃)
Supply Voltage - 3.3V

General Feature

CTP Pin_SIGNAL

TFT Pin Description

Product Description

The TFT-H050A11FWIST4C20 is a 5.0-inch wide temperature IPS TFT-LCD monitor with projected capacitive touchscreen with a resolution of 480x854 pixels. The module has built-in ST7701 driver IC and supports MIPI interface. TFT-H050A11FWIST4C20 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical), contrast ratio 800:1 (typical), brightness 500 nits (typical) value), glare panel, 16:9 aspect ratio. The touch screen has built-in GT911 IC, which supports I2C interface and multi-touch function. The H050A11 model has a projected capacitive touch panel (CTP), but no touch panel option (TFT-H050A11FWIST5N20). The supply voltage (VCC) of the TFT-H050A11FWIST4C20 is 3.0V to 3.6V, with a typical value of 3.3V. It can work in temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.

Search keyword: tft 5, tft 5", 5 tft lcd, 5" tft lcd, 5 inch tft lcd, tft lcd 5, 5 tft display, 5" tft display, 5 inch tft display, tft display 5, tft display 5

TFT-H050A11FWIST5C20.pdf
