    Vertical 5 Inch TFT LCD Display 480x854 Dots IC ST7701S/TFT-H050A11FWIST5N20

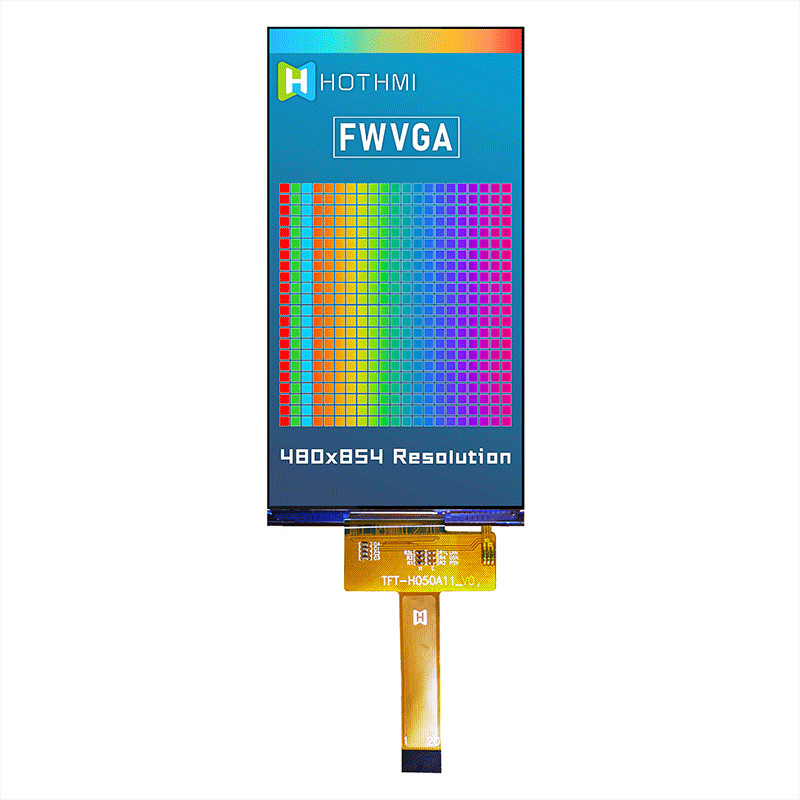

    5.0 Inch TFT LCD Display 480x854 Dots IC ST7701S/TFT-H050A11FWIST5N20


    Product parameters


    Display Size - 5.0 inch
    Effective size (mm) - 61.6320x109.6536
    Perspective - Full Perspective
    Backlight brightness - 550cd/m2
    Connection method PIN number - 20+6PIN
    Interface - MIPI
    Operating temperature - (-20~70℃)
    Supply Voltage - 3.3V
    Driver IC Model - ST7701


    General Feature


    Item

    Standard Value

    Unit

    Display Size5.0Inch
    Number of Pixels480(H)x3(RGB)*854(V)dots
    Active Area61.6320(H) * 109.6536(V)mm
    Outline Dimension

    64.76(H) * 118.70(V) * 2.0(D) <TFT>

    mm
    Viewing DirectionFull O’Clock-
    Interface

    MIPI 1 Lane

    MIPI 2 Lane(Default)

    -
    Driver ICST7701-
    Driver ConditionVCI=3.3V,IOVCC=1.8VV
    Backlight-1

    White LED/12 PCS/6 PCS serial 2 ways parallel

    -
    Touch PanelWhitout TP √Whit RTPWhit CTP-
    CTP Driver IC--
    CTP Driver ConditionTP-VDD=3.3VV
    Operation Temperature-20 ~ 70

    Storage Temperature-30 ~ 80


    TFT Pin Description


    Pin NO.SymbolDescription
    1NCNo Connect
    2LED_KLED Cathode
    3NCNo Connect
    4LED_ALED Anode
    5NCNo Connect
    6VCIAnalog Power
    7IOVCCPower Supply for I/O System
    8TE/NCNo Connect
    9RESXTFT Reset Pin
    10GNDGround
    11D1PMIPI DSI positive differential data
    12D1NMIPI DSI negative differential data
    13GNDGround
    14DCKPMIPI DSI positive differential clock
    15DCKNMIPI DSI negative differential clock
    16GNDGround
    17D0PMIPI DSI positive differential data
    18D0NMIPI DSI negative differential data
    19GNDGround
    20GNDGround
