MCU 132x64 LCD COG Display , ST7565R Transmissive LCD Screen HTG13264C

132x64 Graphic COG LCD ST7565R | FSTN Display Negative Transmissive/HTG13264C

HTG13264C | Monochrome Graphic COG | 132x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display | In stock

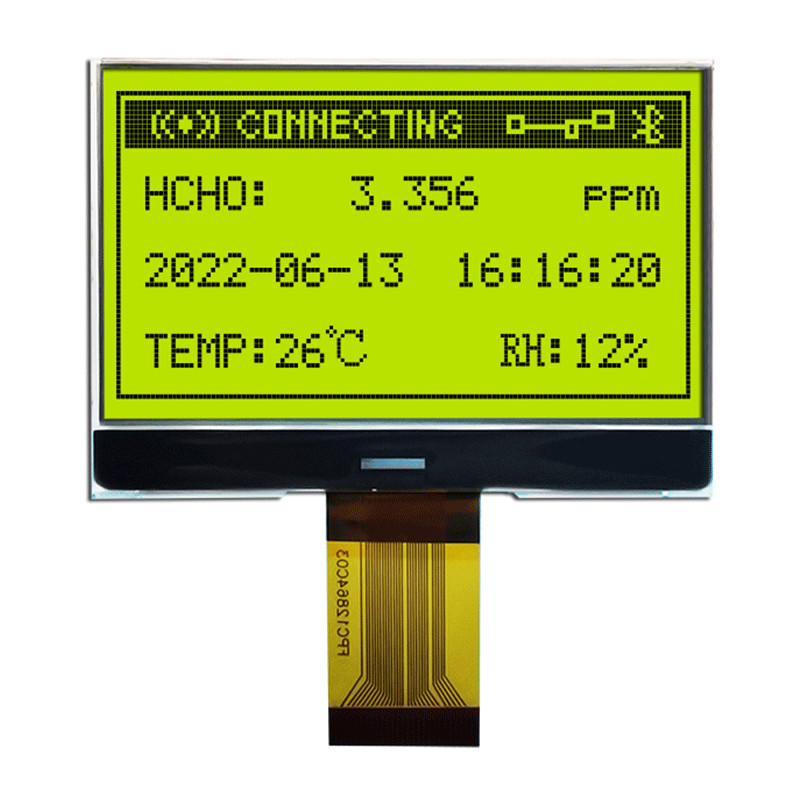

HTG13264C 132x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. It has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.

Product parameters

ITEM	STANDARD VALUE	UNIT
Number of dots	132x64	dots
Module dimension	57.5x41.7x2.0	mm
View display area	54.0x30.2	mm
Dot size	0.38x0.34	mm
Dot pitch	0.41x0.37	mm
Operating temp	-20~70	℃
Storage temp	-30~80	℃
Driving Method	1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
Viewing direction	6H o'clock
Display mode	FSTN
Display type	TRANSMISSIVE / NEGATIVE
Driver IC	ST7565R
Backlight	WHITE
Product application	industrial control

Terminal Function

Pin No.	Pin Name	Function
1	/CS1	This is the chip select signal.
2	/RES	Rester Pin(L->H)
3	A0	A0 = “H”: Indicates that D0 to D7 are display data. A0 = “L”: Indicates that D0 to D7 are control data.
4	/WR	Write (/WR ) control signal input.
5	/RD	Read (/RD ) control signal input.
6~13	DB0-DB7	8bit Date bus, When the serial interface (SPI-4) is selected (P/S = “L”) : D7 :serial data input (SI); D6 : the serial clock input (SCL).
14	VSS	Negative power supply,0V
15	VOUT	DC/DC voltage converter.
16~20	C3+,C1-,C1+,C2+,C2-	DC/DC voltage converter
21~25	V4,V3,V2,V1,V0	LCD driving voltages.
26	C86	This is the MPU interface selection pin. C86 = “H”: 6800 Series MPU interface. C86 = “L”: 8080 Series MPU interface.
27	P/S	This pin configures the interface to be parallel mode or serial mode. P/S = “H”: Parallel data input/output. P/S = “L”: Serial data input. The following applies depending on the P/S status: When P/S = “L”, D0 to D5 must be fixed to “H”. /RD (E) and /WR (R/W) are fixed to either “H” or “L”. The serial access mode does NOT support read operation.
28	VDD	Positive power supply,3.3V

All Products

Reliability Testing	Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
Glass Cleanliness	Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
Bezel Appearance	Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
PCB Appearance	PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
Soldering	Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
Consistency	Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
Product Integrity	Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
Glass Color	While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
ESD Protection & Safety	All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices.

COG LCD Displays

Available in character and graphic formats, COG (Chip-On-Glass) LCD Displays are designed without a PCB. The LCD driver/controller is bonded directly to the glass of the display. This allows COG displays to be smaller in size, more cost effective and a highly customizable display solution compared to typical LCD modules with a board.
