    128X32 Graphic COG LCD Module ST7565R With White Side Backlight HTG12832L

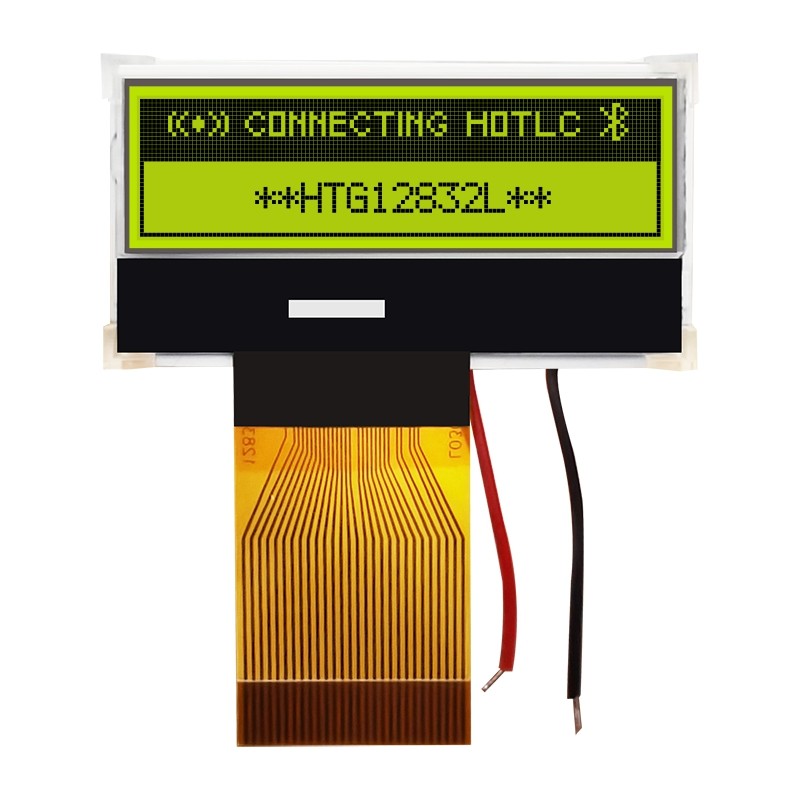

    128X32 Graphic COG LCD ST7565R | STN Display With White Side Backlight/HTG12832L

    HTG12832L | Monochrome Graphic COG | 128x32 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display | In stock

    HTG12832L 128x32 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. It has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots128x32dots
    Module dimension36.5x19.9x3.3mm
    View display area32.0x10.1mm
    Dot size0.235x0.202mm
    Dot pitch0.265x232mm
    Operating temp-20~70
    Storage temp-30~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
    Viewing direction6H o'clock
    Display modeFSTN
    Display typeTRANSMISSIVE / NEGATIVE
    Driver ICST7565R
    Backlight

    WHITE

    Product applicationindustrial control

    Terminal Function


    Pin No.Pin NameFunction
    1/CS1Chip selection input
    2/RESReset
    3A0Data/Command control
    4/WRWrite (/WR ) control signal input.
    5/RDRead (/RD ) control signal input.
    6~13DB0-DB78bit Date bus
    14VSSNegative power supply,0V
    15-16NCNC
    17~18V0,XV0

    When internal DC-DC voltage converter is used, external

    capacitor is connected between these pins.

    19~20NCNC
    21VGLCD driving voltages.
    26C86MPU interface selection pin
    27P/SParallel data input/serial data input switch terminal
    28VDDPower supply voltage (Positive)

    Absolute Maximum Ratings


    ItemsSymbolMIN.MAX.UnitCondition
    Supply VoltageVDD-0.3+3.6VVSS = 0V
    Input VoltageVIN-0.3VDD+0.3VVSS = 0V
    Operating TemperatureTOP-20+70No Condensation
    Storage TemperatureTst-30+80No Condensation

    Electrical Characteristics

    ItemsSymbolMIN.TYP.MAX.UnitCondition
    Operating VoltageVDD3.03.33.6VVDD
    Input High VoltageVIH0.8 x VDD-VDDV/CS1,/RES,A0,E , R/W,D0~D7,C86
    Input Low VoltageVILVSS-0.2 x VDDV
    Output High VoltageVOH0.8 x VDD-VDDVD0~D7
    Output Low VoltageVOLVSS-0.2 x VDDVD0~D7
    Operation CurrentIop100-220μAVDD=3.0V
    Sleep modelDD-0.14μATa=25℃
    Standby modelDD-510μATa=25℃

    LED Backlight Circuit


    ItemsSymbolMIN.TYP.MAX.UnitCondition
    Forword VoltageVf BLA-3.0-VVDD
    Forword CurrentIf BLA-1015mAVDD

    All Products


    Reliability TestingCustomers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration.
    Glass CleanlinessCustomers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material.
    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
    Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.

    Search Keyword: lcd 128x32, lcd 128 x 32, 128x32 lcd, 128 x 32 lcd
