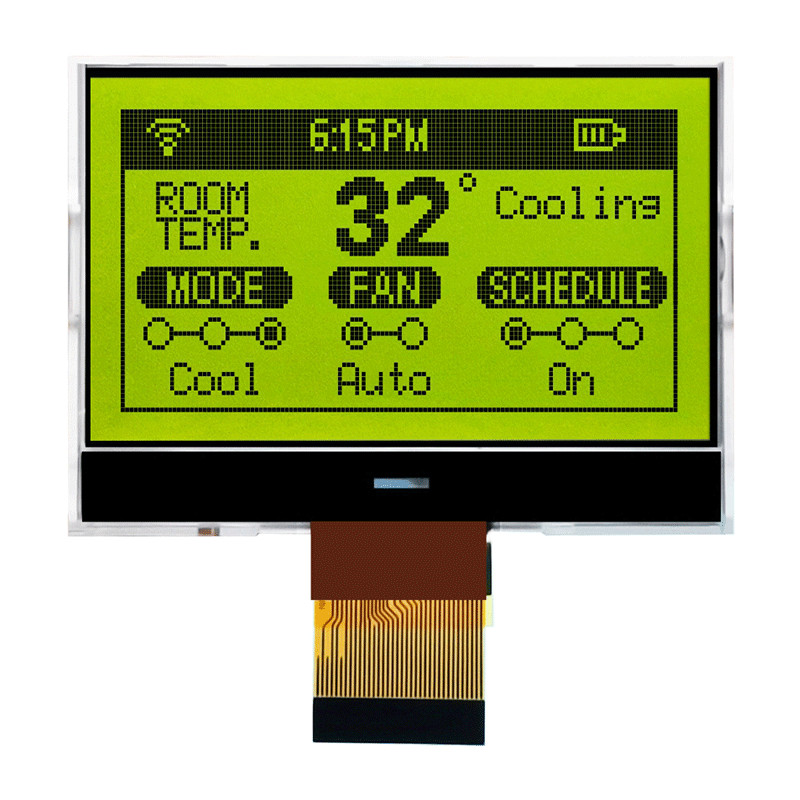

    Multipurpose COG LCD Module Graphic 128X64 ST7565R Negative Transmissive HTG12864

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTG12864I
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Multipurpose COG LCD Module Graphic 128X64 ST7565R Negative Transmissive HTG12864

    128X64 Graphic COG LCD ST7565R | STN-BLUE Display Negative Transmissive/HTG12864I

    HTG12864I-25W-36C05 | Monochrome Graphic COG | 128x64 Pixels | Transflective LCD | Side White Backlight | STN (+) Positive Gray Display | IN-Stocked


    HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows blue pixels on a gray background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG12864I-25W-36C05 display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots128x64dots
    Module dimension69.1X50.0X2.8mm
    View display area65.5X38.0mm
    Dot size0.45X0.49mm
    Dot pitch0.475x0.515mm
    Operating temp-20~70
    Storage temp-30~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
    Viewing direction6H
    Display mode
    STN-BLUE
    Display typeTRANSMISSIVE / NEGATIVE
    Driver ICST7565R
    Backlight

    WHITE

    Product applicationindustrial control, instrumentation

    Terminal Function


    Pin No.Pin NameFunction
    1~2NC
    3/CS1This is the chip select signal.
    4/RESRester Pin(L->H)

    5


    A0

    A0 = “H”: Indicates that D0 to D7 are display data.

    A0 = “L”: Indicates that D0 to D7 are control data.

    6/WRWrite (/WR ) control signal input.
    7/RDRead (/RD ) control signal input.

    8~15


    DB0-DB7

    8bit Date bus,

    When the serial interface (SPI-4) is selected (P/S = “L”) : D7 :serial data input (SI); D6 : the serial clock input (SCL).

    16VDDPower supply voltage (Positive)
    17VSSNegative power supply,0V
    18VOUTDC/DC voltage converter.
    19~23C3+,C1-,C1+,C2+,C2-DC/DC voltage converter
    24NC
    25~29V4,V3,V2,V1,V0LCD driving voltages.

    30


    VR

    Output voltage regulator terminal. Provides the voltage between VSS and V0 through a resistive voltage divider

    IRS = “L” : the V0 voltage regulator internal resistors are not used. IRS = “H” : the V0 voltage regulator internal resistors are used.

    31NC

    32


    C86

    This is the MPU interface selection pin. C86 = “H”: 6800 Series MPU interface.

    C86 = “L”: 080 Series MPU interface.


    33


    P/S

    This pin configures the interface to be parallel mode or serial mode. P/S = “H”: Parallel data input/output.

    P/S = “L”: Serial data input.

    The following applies depending on the P/S status:


    When P/S = “L”, D0 to D5 must be fixed to “H”.

    /RD (E) and /WR (R/W) are fixed to either “H” or “L”.

    The serial access mode does NOT support read operation.

    34NC
    35IRS

    IRS = “H”: Use the internal resistors

    IRS = “L”: Do not use the internal resistors.

    36NC

    Absolute Maximum Ratings


    ItemsSymbolMIN.MAX.UnitCondition
    Supply VoltageVDD-0.3+3.6VVSS = 0V
    Input VoltageVIN-0.3VDD+0.3VVSS = 0V
    Operating TemperatureTOP-20+70No Condensation
    Storage TemperatureTst-30+80No Condensation

    Electrical Characteristics

    ItemsSymbolMIN.TYP.MAX.UnitCondition
    Operating VoltageVDD3.03.33.6VVDD
    Input High VoltageVIH0.8 x VDD-VDDV

    /CS1,/RES,A0,/WR,

    /RD,D0~D7,C86

    Input Low VoltageVILVSS-0.2 x VDDV
    Output High VoltageVOH0.8 x VDD-VDDVD0~D7
    Output Low VoltageVOLVSS-0.2 x VDDVD0~D7
    Input Leakage CurrentILI-1.0-1.0μAVDD
    Output Leakage CurrentILo-3.0-3.0μAVDD

    LED Backlight Circuit

    ItemsSymbolMIN.TYP.MAX.UnitCondition
    Forword VoltageVf BLA-3.1-VVDD
    Forword CurrentIf BLA-3040mAVDD

    All Products


    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
    Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
    Glass ColorWhile normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed.
