    Industrial 132x32 COG LCD Module ST7567R Positive Transflective HTG13232Y

    132x32 Graphic COG LCD ST7567R | FSTN Display Positive Transflective/HTG13232Y

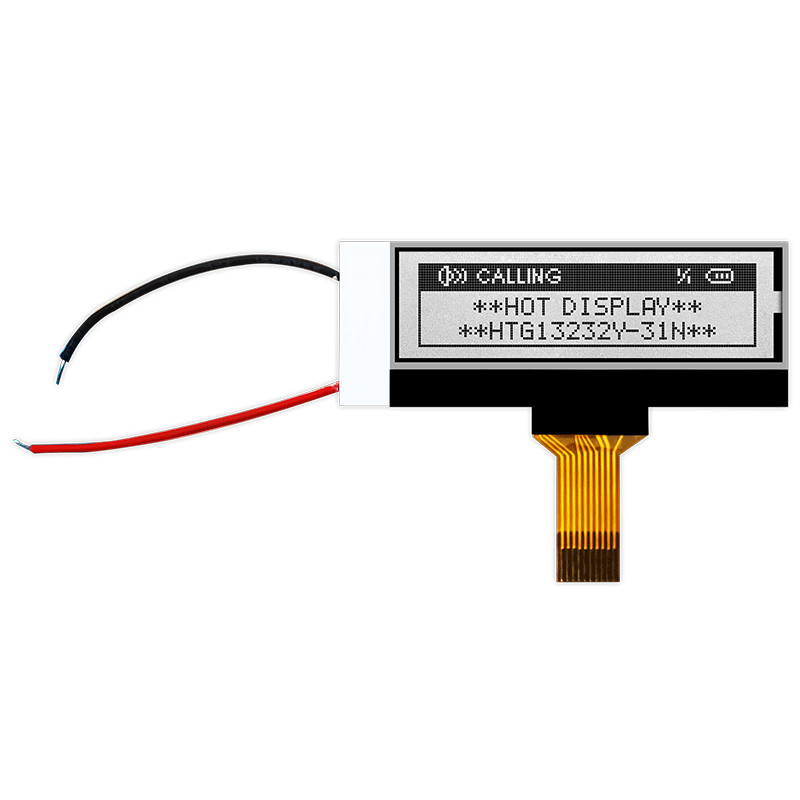

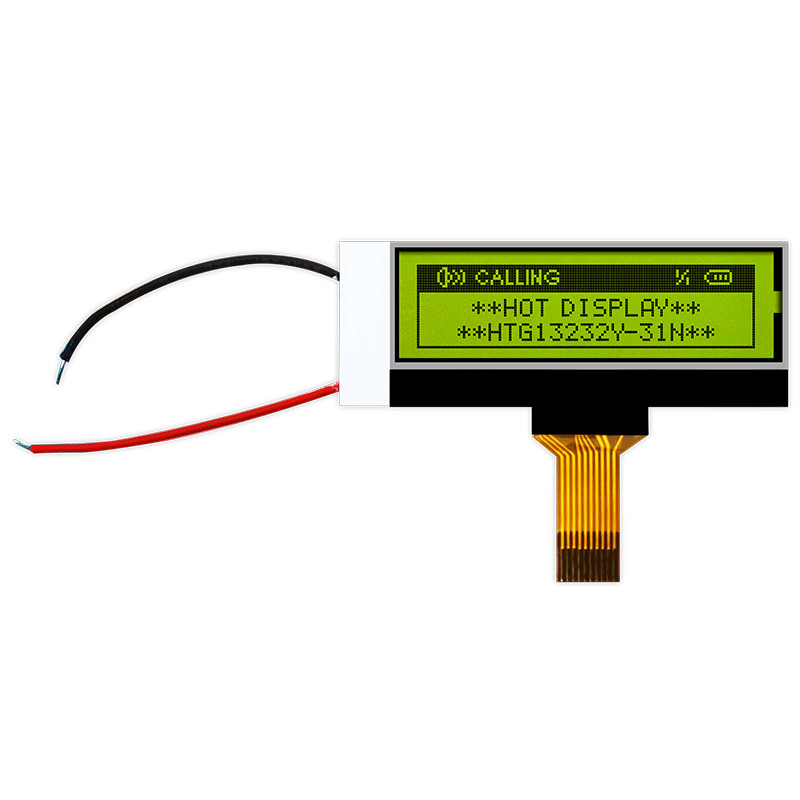

    HTG13232Y-31N-10C05 | Monochrome Graphic COG | 132x32 Pixels | Transflective LCD | Side White Backlight | STN (+) Positive Gray Display | IN-Stocked


    HOTLCD 132x32 graphic Chip-On-Glass (COG) Liquid Crystal Display shows blue pixels on a gray background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG13232Y-31N-10C05 display has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots132x32dots
    Module dimension34.5x15.0x1.7mm
    View display area31.9x9.5mm
    Dot size0.2x0.2mm
    Dot pitch0.22x0.22mm
    Operating temp-20~70
    Storage temp-30~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
    Viewing direction6H
    Display modeFSTN
    Display typeTRANSMISSIVE / NEGATIVE
    Driver ICST7567R
    BacklightWHITE
    Product applicationindustrial control, instrumentation

    Terminal Function


    Pin No.Pin NameFunction
    1/CS1Chip select input pin
    2/RESHardware reset input pin
    3A0It determines whether the access is related to data or command.
    4SCLD6=SCL: Serial clock input.
    5SID7=SI: Serial data input.
    6VDDPower supply (Positive)
    7VSSPower supply (Negative)

    8


    V0OUT

    V0out is the output of V0 regulator . V0s is the feedback of V0regulator
    9VXOINXV0in is the V0 input of common circuits.
    10VGOUTVGout is the output of VG regulator. VGs is the feedback of VG regulator .

    Absolute Maximum Ratings


    ItemsSymbolMIN.MAX.UnitCondition
    Supply VoltageVDD-0.3+3.3VVSS = 0V
    Input VoltageVIN-0.3VDD+0.3VVSS = 0V
    Operating TemperatureTOP-10+60No Condensation
    Storage TemperatureTst-20+70No Condensation

    Electrical Characteristics

    ItemsSymbolMIN.TYP.MAX.UnitCondition
    Operating VoltageVDD1.8-3.3VVDD
    Input High VoltageVIH0.8 x VDD-VDDV/CS1,/RES,A0,E , R/W,D0~D7,C86
    Input Low VoltageVILVSS-0.2 x VDDV
    Output High VoltageVOH0.8 x VDD-VDDVD0~D7
    Output Low VoltageVOLVSS-0.2 x VDDVD0~D7
    Operation CurrentIop100-220μAVDD=3.0V
    Sleep modelDD-0.14μATa=25℃
    Standby modelDD-510μATa=25℃

    LED Backlight Circuit


    ItemsSymbolMIN.TYP.MAX.UnitCondition
    Forword VoltageVf BLA---VVDD
    Forword CurrentIf BLA---mAVDD

    All Products


    Bezel AppearanceBezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface.
    PCB AppearancePCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs.
    SolderingSoldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity.
    ConsistencyOur manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units.
    Product IntegrityQuality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions.
