    128X64 MCU LCD COG Module , IC 7565R Chip On Glass LCD Display HTG12864-9R

    128X64 Graphic COG LCD 7565R | FSTN+ Display With White Backlight/HTG12864-9R


    HTG12864-9R | Monochrome Graphic COG | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Display


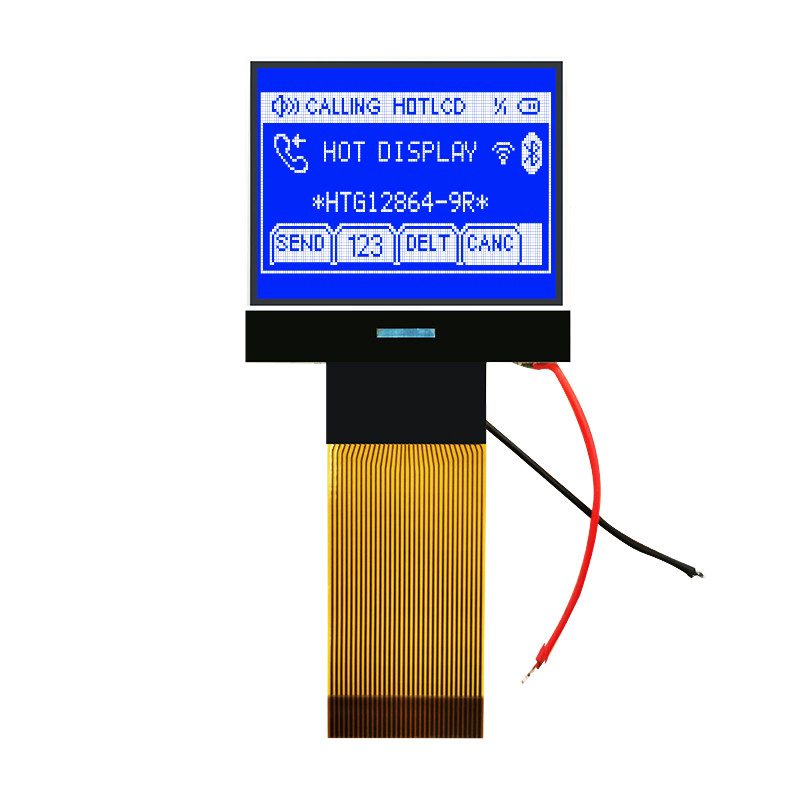

    HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows dark pixels on a white background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG12864-9R display includes mounting holes. It has an optimal view of 6:00, operates at 3.3V supply voltage and is RoHS compliant.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots128x64 DOTS----
    Module dimension33.1x31.5x2mm
    View display area30.1x23.3mm
    Dot size0.24x0.19mm
    Dot pitch0.26x0.21mm
    Operating temp-20~70
    Storage temp-30~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.3V
    Viewing direction6 O’CLOCK
    Display modeFSTN
    Display typeTRANSMISSIVE / NEGATIVE
    Driver ICST7565R
    Backlight

    WHITE


    General Specification


    ItemDimensionUnit
    Number of Dots128 x 64 dots
    Module dimension33.1x31.5x2mm
    View area30.1x23.3mm
    Active area26.86x16.62mm
    Dot size0.24 x 0.19mm
    Dot pitch0.26 x 0.21mm
    Duty1/65 , 1/9 Bias
    Backlight TypeLED
    ICST7565R
    Interface6800/8080/MCU

    Absolute Maximum Ratings


    ItemSymbolMinTypMaxUnit
    Operating TemperatureTOP-20+70
    Storage TemperatureTST-30+80
    Input VoltageVI-0.3VDD+0.3V
    Digital Power Supply VoltageVDD-Vss-0.33.6V
    LCD Power supply voltageV0-XV0-0.316V

    Electrical Characteristics


    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For LogicVDD-VSS2.73.03.3V
    Supply Voltage For LCMVOPTa=-20℃
    Ta=25℃
    Ta=70℃

    9.15

    9.45

    9.75
    V
    V
    V
    Input High Volt.VIH0.7 VDDVDDV
    Input Low Volt.VILVss0.3VDDV
    Output High Volt.VOH0.8 VDDVDDV
    Output Low Volt.VOLVss0.2 VDDV
    Supply CurrentIDDVDD=3.0V0.450.9mA


    HTG12864-9R is a COG monochrome Graphic LCD module, made of resolution 128x64 pixels. This

    LCD module is built-in with ST7565R controller IC which supports 6800 8-bit, 8080 8-bit parallel and
    MCU interface. This LCD module can be operating at temperatures from -20℃ to +70℃; its storage

    temperatures range from -30℃ to +80℃.
