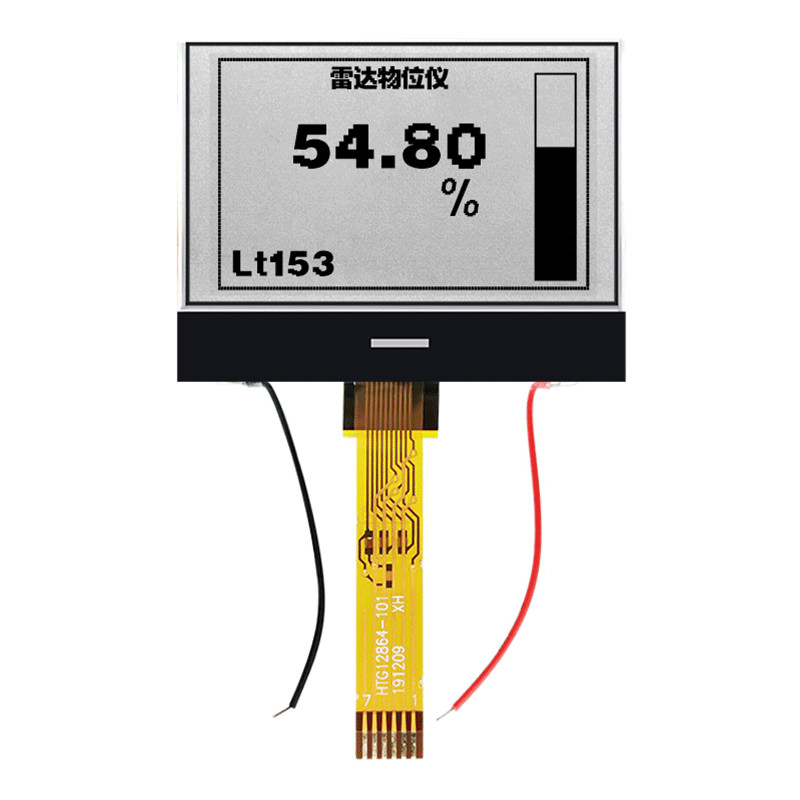

    128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101

    Ask Lasest Price
    Brand Name : HOTHMI
    Model Number : HTG12864-101
    Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 99999
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101

    128X64 Graphic COG LCD UC1601S | FSTN Green Display With White Side Backlight/HTG12864-101

    HTG12864-101 | Monochrome Graphic COG | 128x64 Pixels | Transflective LCD | Side White Backlight | FSTN (+) Positive Gray Display


    HOTLCD 128x64 graphic Chip-On-Glass (COG) Liquid Crystal Display shows blue pixels on a gray background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTG12864-101 display has an optimal view of 6:00, operates at 3V supply voltage and is RoHS compliant.


    Product parameters


    ITEMSTANDARD VALUEUNIT
    Number of dots128x64dots
    Module dimension48.0x36.0x3.8mm
    View display area39.66x19.82mm
    Dot size0.29x0.29mm
    Dot pitch0.31x0.31mm
    Operating temp-20~70
    Storage temp-30~80
    Driving Method1/ 128 DUTY,1/ 12 BIAS,VOP= 3.0V
    Viewing direction6 O’CLOCK
    Display modeFSTN
    Display typeTRANSMISSIVE / NEGATIVE
    Driver ICUS1601S
    Backlight

    WHITE


    Electrical Characteristics


    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For LogicVDD-VSS2.73.03.3V
    Supply Voltage For LCMVOPTa=-20℃
    Ta=25℃
    Ta=70℃

    9.15

    9.45

    9.75
    V
    V
    V
    Input High Volt.VIH0.7 VDDVDDV
    Input Low Volt.VILVss0.3VDDV
    Output High Volt.VOH0.8 VDDVDDV
    Output Low Volt.VOLVss0.2 VDDV
    Supply CurrentIDDVDD=3.0V0.450.9mA

    Search Keyword: lcd 128x64, lcd 128 x 64, 128x64 lcd, 128 x 64 lcd

    128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101


    LCD Custom Solutions

    Cable Customization

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

    128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101
    128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101

    Connector Customization

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.


    128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101

    Interface Customization

    Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.


    128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101

    PCB Modifications

    Choose from a wide selection of changes including shape, size, pinout, and component layout of your PCB to make it a perfect fit for your application.


    128X64 LCD COG Display , UC1601S Graphic LCD Module HTG12864-101

    HTG12864-101-31W-06C10-V01.pdf
