4.3" 480x272 Projected Capacitive Touch Screen Module/Sunlight Readable/TFT-H043A21WQIST8C40

Product parameters

Dimensions (mm) - 105.46x67.11x4.5
Field of View Window Size (mm) - 4.3"
Display Dimensions (mm) - 4.3"
Effective size mm - 95.04x53.86
Product Application - Industrial Display/Household Appliances
Perspective - Full Perspective
Interface - 24Bit-RGB
Special Instructions - GT911 with CTP Capacitive Touch Chip

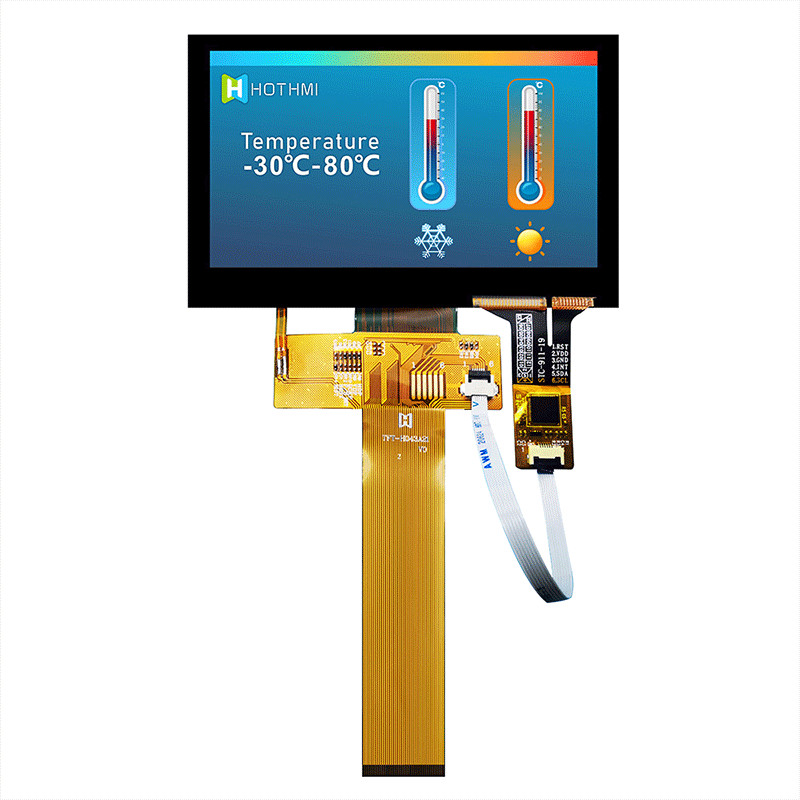

Working temperature - (-30~80℃)

General Feature:

Pin_SIGNAL

Product Description

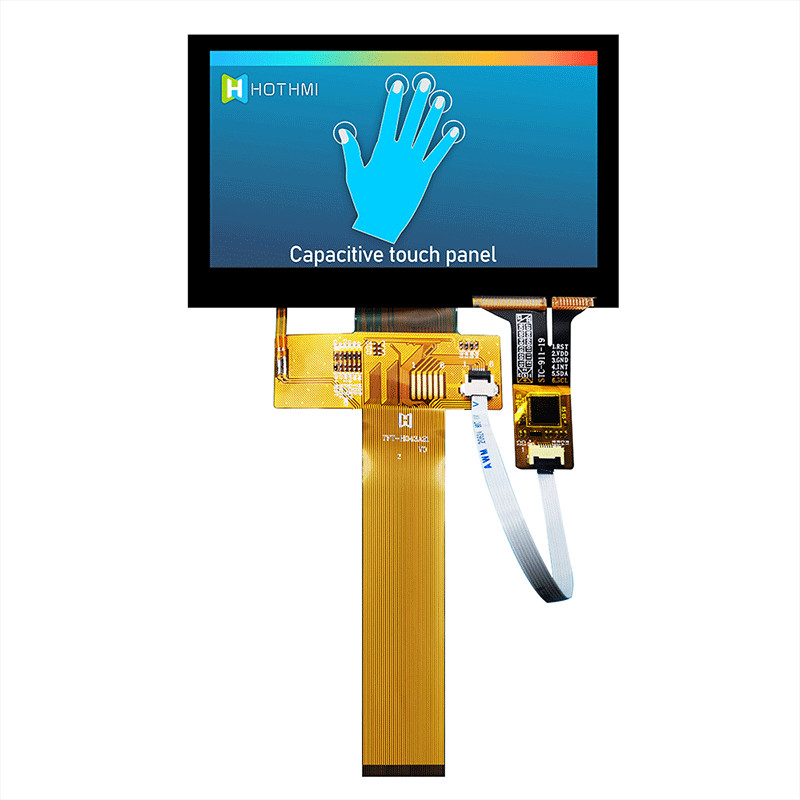

The TFT-H043A21WQIST8C40 is a 4.3-inch wide temperature IPS TFT-LCD display with projected capacitive touchscreen with a resolution of 480x272 pixels. The module has built-in SC7283 driver IC and supports 24-bit RGB interface. TFT-H043A21WQIST8C40 adopts IPS panel, which has the advantage of wider viewing angle, left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typ.), contrast ratio 800:1 (typ.), brightness 800 nits (typ. value), glare panel, 16:9 aspect ratio. The touch screen has built-in GT911 IC, which supports I2C interface and multi-touch function. The H043A21 model has a projected capacitive touch panel (PCAP), but no touch panel option (TFT-H043A21WQIST8C40). The supply voltage (VCC) of the TFT-H043A21WQIST8C40 is 3.0V to 3.6V, with a typical value of 3.3V. It can work at temperatures from -30°C to +80°C and storage temperatures from -30°C to +80°C.

Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3, tft display 4.3"

TFT-H043A21 (2).pdf
